TRM 400 Series Assembly Guide 6
Assembling the Frame
To assemble the frame:
1. Remove the hood, by loosening the two front fasteners and two
side fasteners on the hood using the ³₁₆-inch hex wrench.

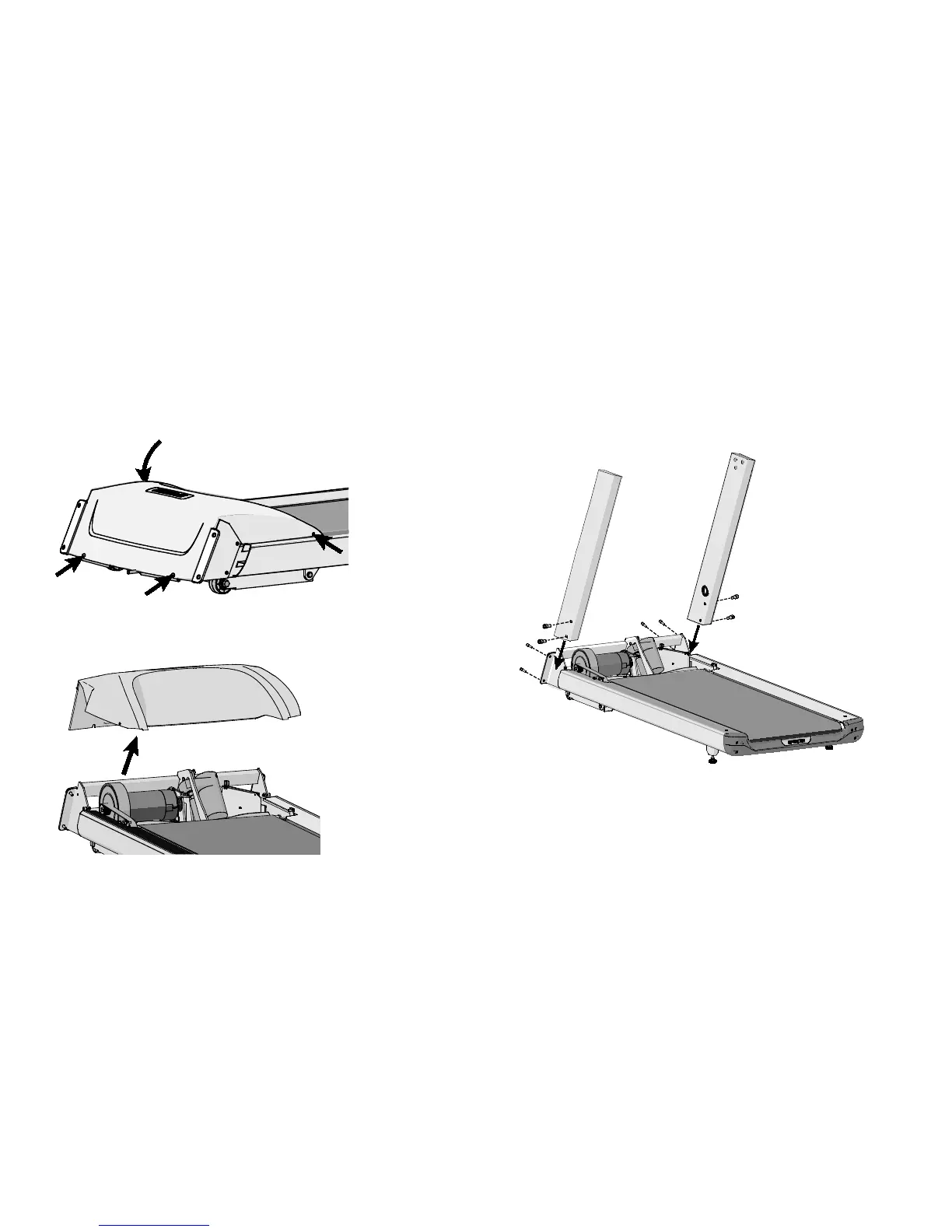

Figure 4: Locations of hood fasteners
2. Lift the hood and set it aside.
Figure 5: Remove the hood
3. Position the left upright support onto the base frame side bracket.
Note: The left upright support has a large hole on the inner side of it.
4. Ask your assistant to help you line up the mounting holes and secure the
upright support using four ⁵₁₆-inch x ³₄-inch socket head screws, two in the
side mounting holes and two in the front mounting holes. Partially tighten all
four screws.
Figure 6: Upright support attachment
5. Repeat steps 3 and 4 to attach the right upright support using the four
remaining ⁵₁₆-inch x ³₄-inch socket head screws and partially tighten.
