©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide
12

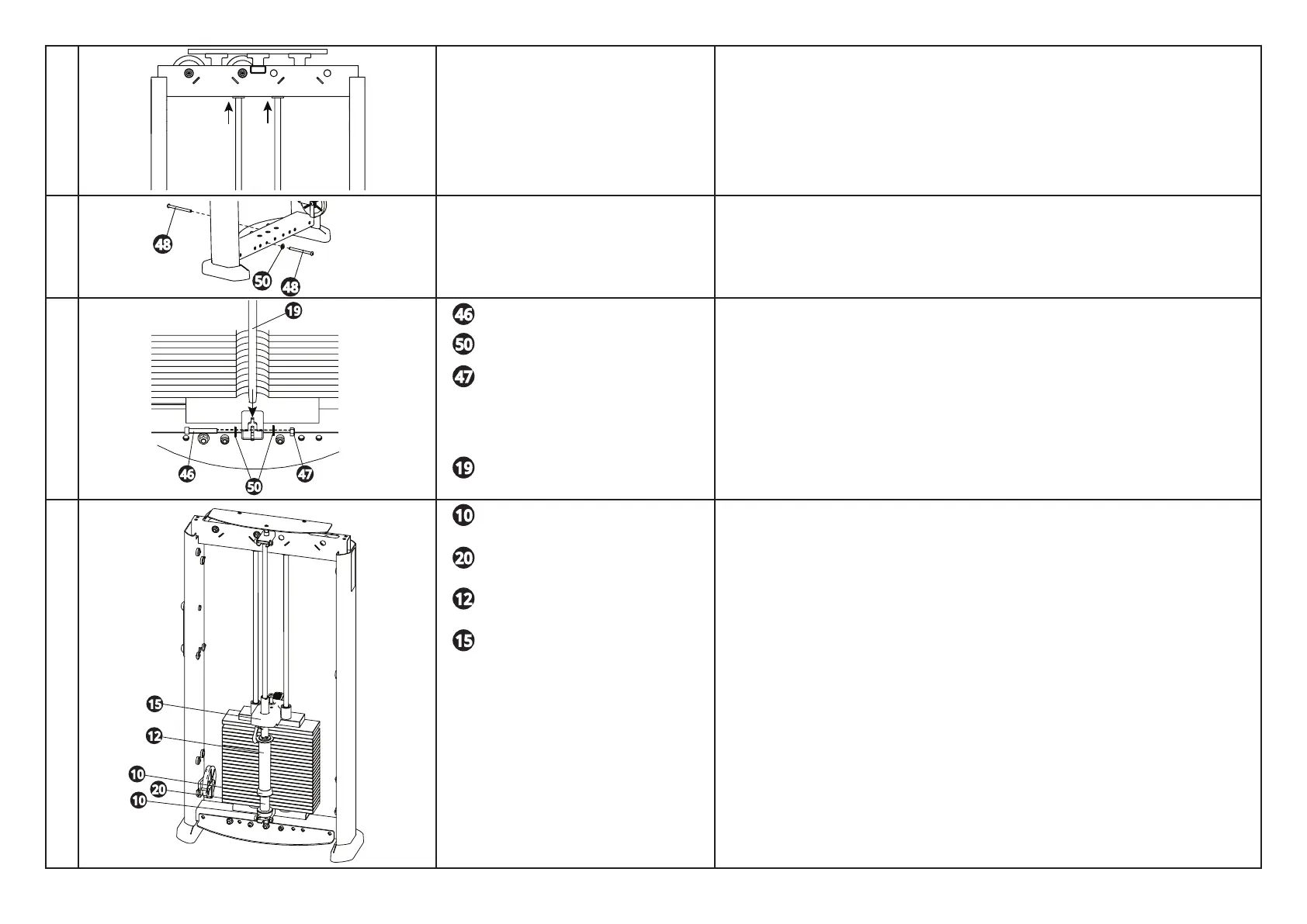

4 Straighten the front two guide rods to a vertical position. Have your assistant lift
the guide rods up into the upper part of the frame.
5 Tools: Hex wrench, 6 mm
Torque wrench
While the assistant is holding the rods into the upper frame, reinsert the two
bolts underneath the guide rods removed in Step 1 above. Let the guide rods
drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb
(43 N-m) of torque.
6 1 M10 x 65 mm SHCS
2 washers, 11 mm
1 M10 nylon lock nut
Tools: Hex wrench, 8 mm
Socket wrench, 17 mm
1 guide rod with cap
Prepare the lower base for the add-on weight assembly. Place the retaining
screw through the bracket on the weight stack spacer.
Remove the cap from the guide rod and place the rod into bracket opening se-
cured by the screw.
7 2 bumpers
1 add-on weight spacer, 3-inch
1 add-on weight
1 add-on weight handle
Place one bumper onto third rod, followed by the add-on weight spacer, another
bumper, the add-on weight, and the add-on weight handle.
19
10
12
15
20
15
12
10
20
10
46
47
50
19
46 47
50
50
48
48
