©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide
10

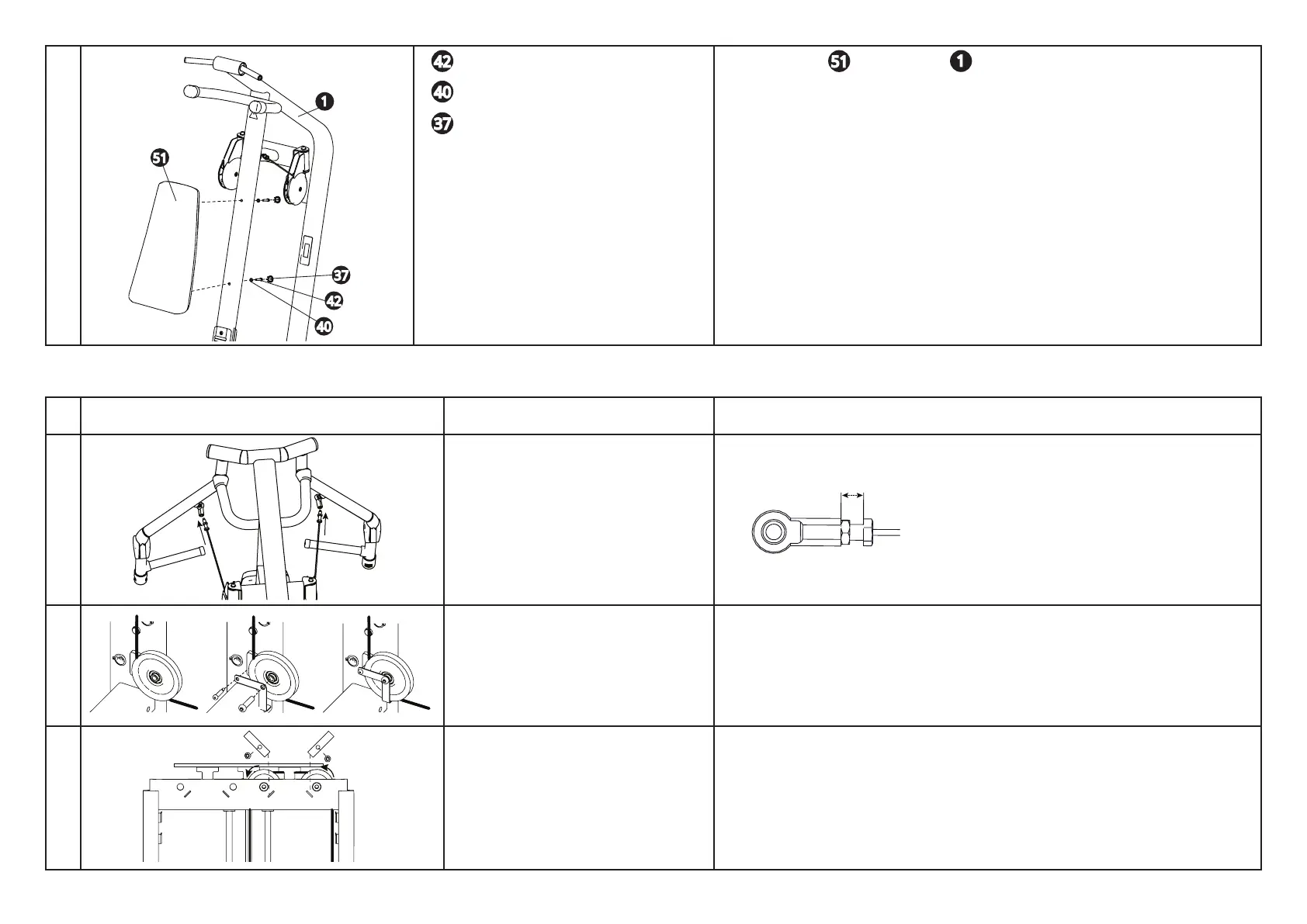

Route the Cable
Image Hardware Instructions
1 Tools: Two open end wrenches, 19 mm
Torque wrench
Attach cable to arms. Thread cable end into rod end as shown. Hold rod end with
wrench and fully tighten lock nut. Maximum distance is 25 mm.
Tighten to 50 ft-lb (67.7 N-m).
2 Tools: Socket wrench, 8 mm
Socket wrench, 4 mm
To route the cable around the lower pulley on the weight stack tower, remove
the cable retainer. Route the cable around the pulley and then replace the cable
retainer.
3 Tools: Hex wrench, 8 mm
Open-end wrench, 19 mm
Torque wrench
To route the cable to the upper pulleys of weight stack tower, remove the cable
retainers, route the cables, and replace the retainers. Tighten to 50 ft-lb (67
N-m) of torque.
6 2 hex head screws 5/16 x 1½-inch
2 washers, 9 mm
2 hole plugs
Tool: Socket wrench, ½-inch with extension
Attach back pad to main frame .
1
37
40
42
51
51
1
37
42
40
