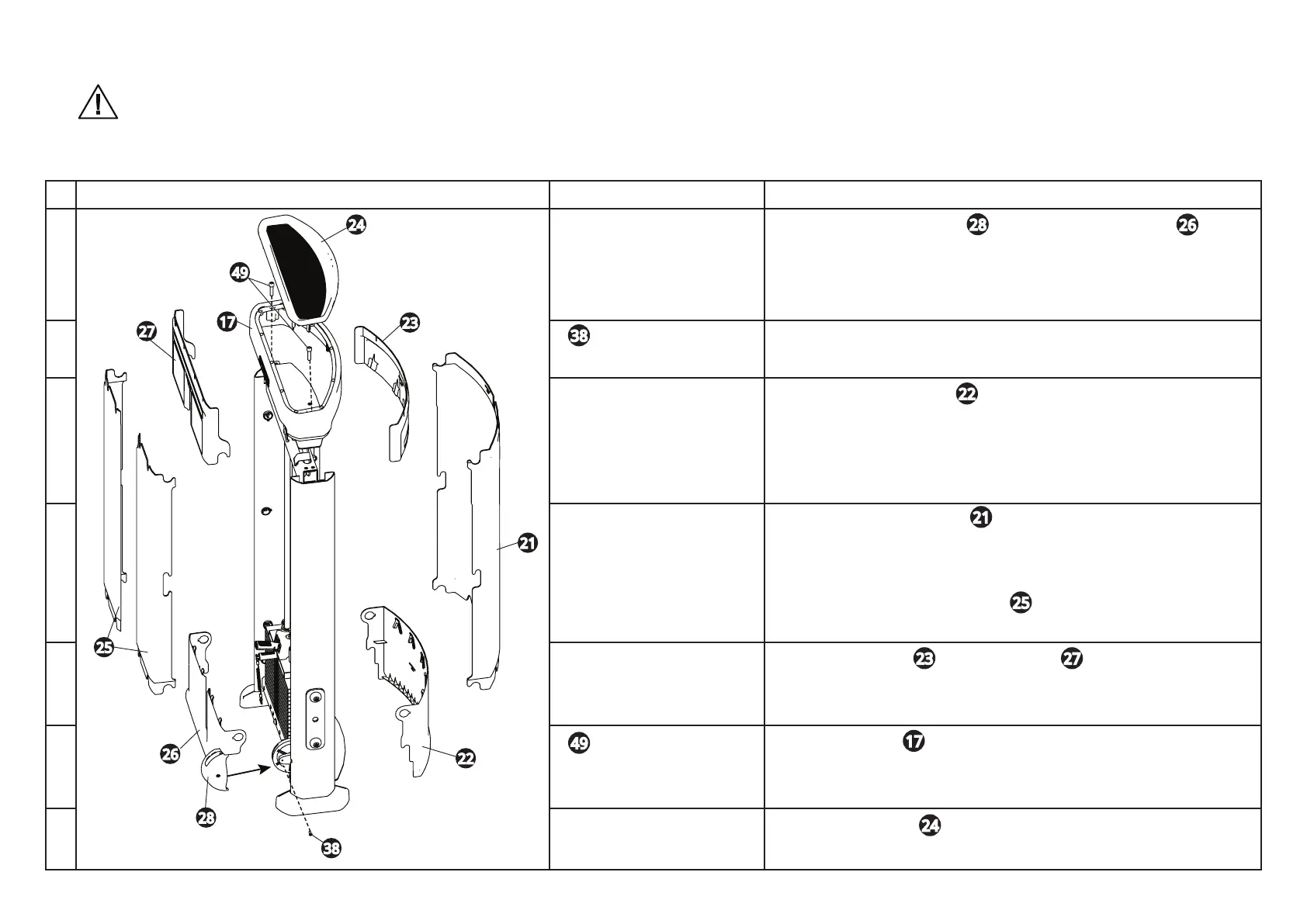

Install the Shroud

IMPORTANT

Before installing the shroud, ensure that cable connections are correct and cables move smooth through their paths. If they do not,

STOP and adjust cable and routing. In addition, ensure all fasteners (including those preinstalled) are tightened appropriately.

Note The location of the lower pulley cover will vary depending on the model.

Image Hardware Instructions

1 Snap the lower pulley shroud onto the lower front shroud . Place

the lower front shroud with pulley cover into frame and hook onto but-

tons.

2 1 M6 x 15 mm SHCS

Tool: Hex wrench, 4 mm

Secure lower pulley shroud.

3 Place the lower rear shroud onto the frame. Raise it enough to hook

over buttons.

4 Install the rear middle shroud . Slide it over the triangular tabs of the

lower shroud and hook it onto middle buttons.

Repeat for the front middle shrouds .

5 Install the upper rear and front shrouds . Ensure to hook them

over the buttons and spacers.

6 2 M10 x 40 mm SHCS

Tools: Hex wrench, 8 mm

Torque wrench

Place shroud crown on top and secure. Recommended bolt torque

is 25 ft-lb (34 N-m).

7 Securely snap top tray into place.
