©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide
7
4 2 M12 x 35 mm SHCS
2 washers, 13 mm
Tool: Hex wrench, 10 mm

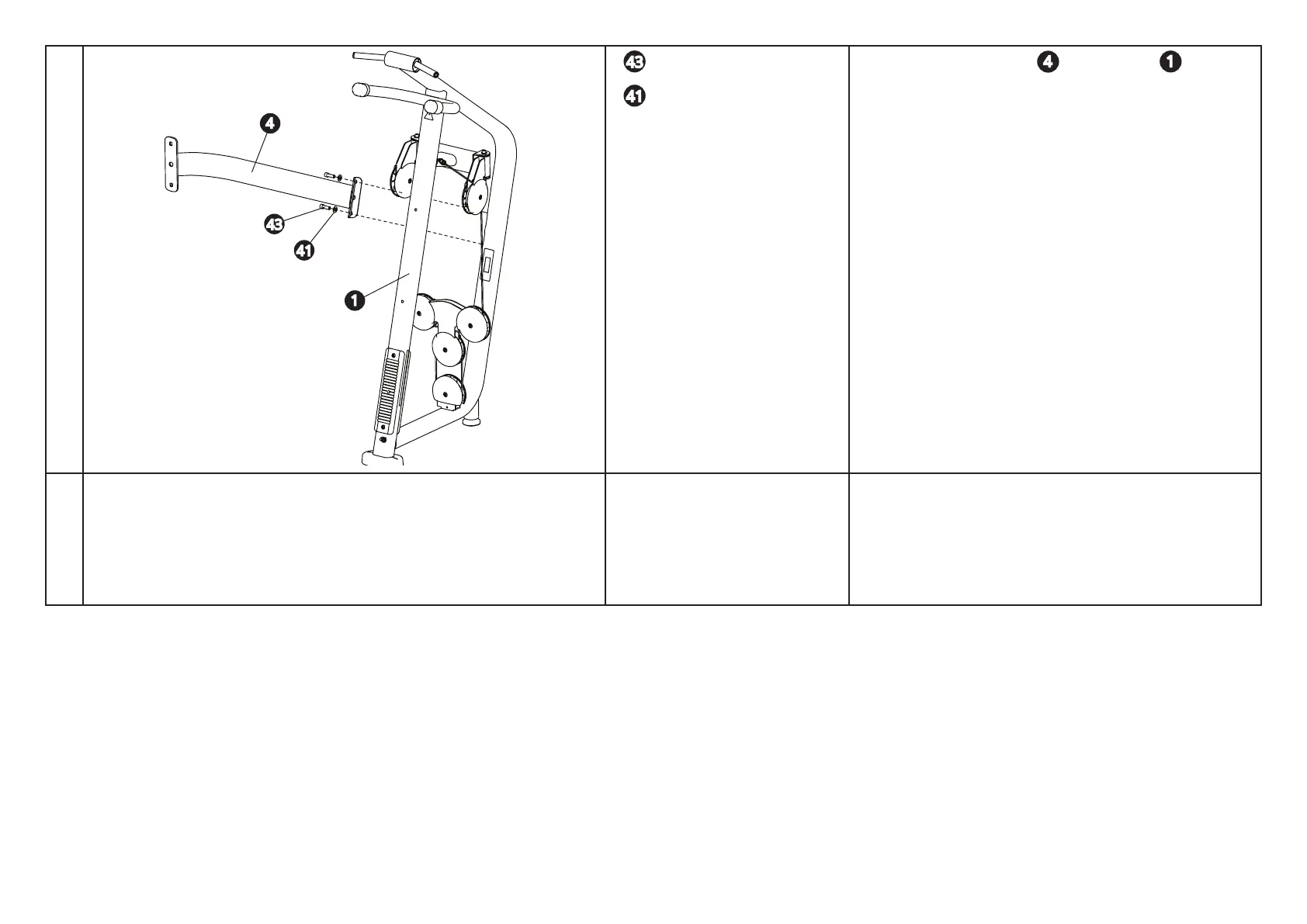

Connect upper cross brace to main frame .
5 Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
Torque wrench
Gently rock the frame to align. Tighten all M12 fasteners to
55 ft-lb (75 N-m) of torque.
Do not tighten the M10 screws installed in step 1 at this
time. They will be removed temporarily in a later step.
41
1
43
4
