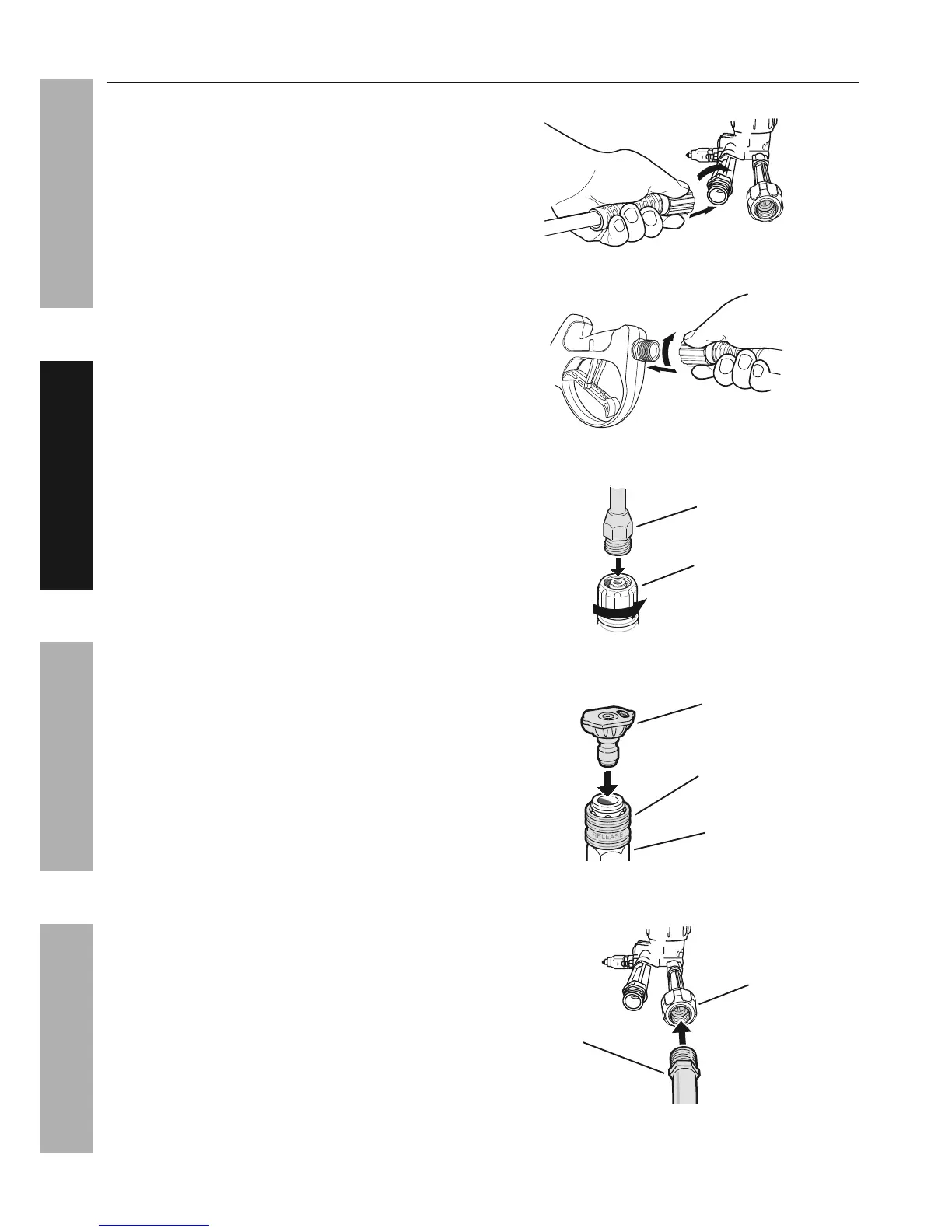

5. Connect the Pressure Hose (15) to the
outlet fitting on the Pump (32) and firmly
hand-tighten the nut. See Figure B.
6. Connect the Pressure Hose to the handle
of the Spray Gun (2) and firmly hand-
tighten the nut. See Figure C.
7. Remove the protective cap on the Wand (1)
inlet. Insert the Wand into the Spray Gun tip
and firmly hand-tighten the nut. See Figure D.
8. Attach the Nozzle (8) to the Wand by
pulling back the quick connect collar and
pushing the Nozzle onto the end of the
Wand. Make sure the quick connect collar
locks the Nozzle in place. See Figure E.
9. Connect the water supply hose to the water inlet
connection on the Pump (32) and hand-tighten
the Inlet Fitting. See Figure F.
The water source must be able to provide a
minimum of five gallons of clean, cold water per
minute at 20 PSI. Only use a 5/8" inner diameter
(or larger) hose that is rated to meet this capacity.
Figure B
Figure C
Spray
Gun Tip
Wand
Figure D
Quick Connect
Collar
Wand
Nozzle
Figure E
Figure F
Inlet
Fitting
Water
Supply
Hose
Assembly (continued)
