MAX PRO 18
©
Operator Manual
Original Printed in English
JOB SETUP SCREEN - AUXILIARY INPUT/OUTPUT
Any changes made to this screen requires operator to press ‘Load Job’ or ‘Save & Load’ button.
INPUT
Not Configured: No configuration.
Bagger Inhibit: Will not allow bagger to cycle until input held low. Warning appears when this is active.
OUTPUT 1
Not Configured: No configuration.
Printer Data Ready: Output active when Printer is ready for a new label.
Waiting For Printer: Machine is cycling and film is backed up and ready to print but printer needs label.
Cycle Complete: Cycle done.
Bag Made: Bag is dropping.
Bag Made + Label Required: Bag is dropping AND printer needs a label.
Bags Low: Bags low sensor is active.
JOB SETUP SCREEN - AUXILIARY INPUT/OUTPUT-CONT.

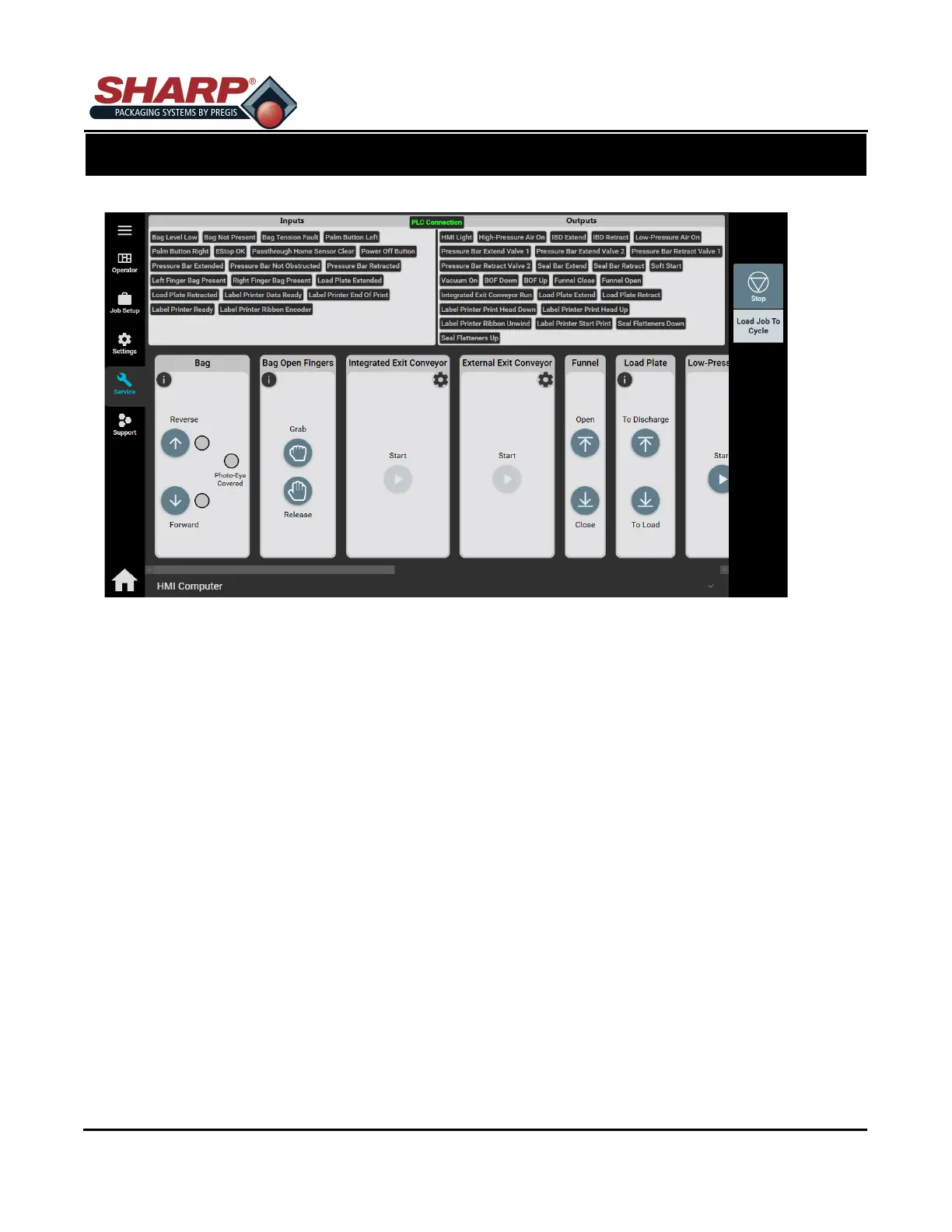

SCREEN NAVIGATION
SECTION 2 - CONTROLS
2-10
