Premier RO-PURE - Blue Tube Connection; Red Tube Connection

Page 11
Red Tube Connection (From FAUCET To The RO Module)
Locate the 1/4” RED tube attached to the RO faucet. Insert the end of the
UHGWXEHZLWKWKHEHQGLQWRWKHRSHQ´TXLFNFRQQHFW¿WWLQJRQWKH
back side of the RO-Pure Head behind the Membrane head making sure
the tube is pushed in all the way to the tube stop. See Diagram Above
Step 14
*
IMPORTANT:
The Flow Restrictor is installed inside of the red tube at the bent end. DO
NOT REMOVE THE FLOW RESTRICTOR OR CUT THE RED TUBING AS IT
WILL DAMAGE THE FLOW RESTRICTOR.
Blue Tube Connection (From FAUCET To The RO Module)
Locate the 1/4” BLUE tube attached to the RO faucet. Insert the open end of the tube with
WKHEHQGLQWRWKHRSHQ´TXLFNFRQQHFW¿WWLQJRQWKHEDFNVLGHRIWKH523XUH+HDG
behind the Post Filter head making sure the tube is pushed in all the way to the tube stop.
See Diagram Above
Step 13

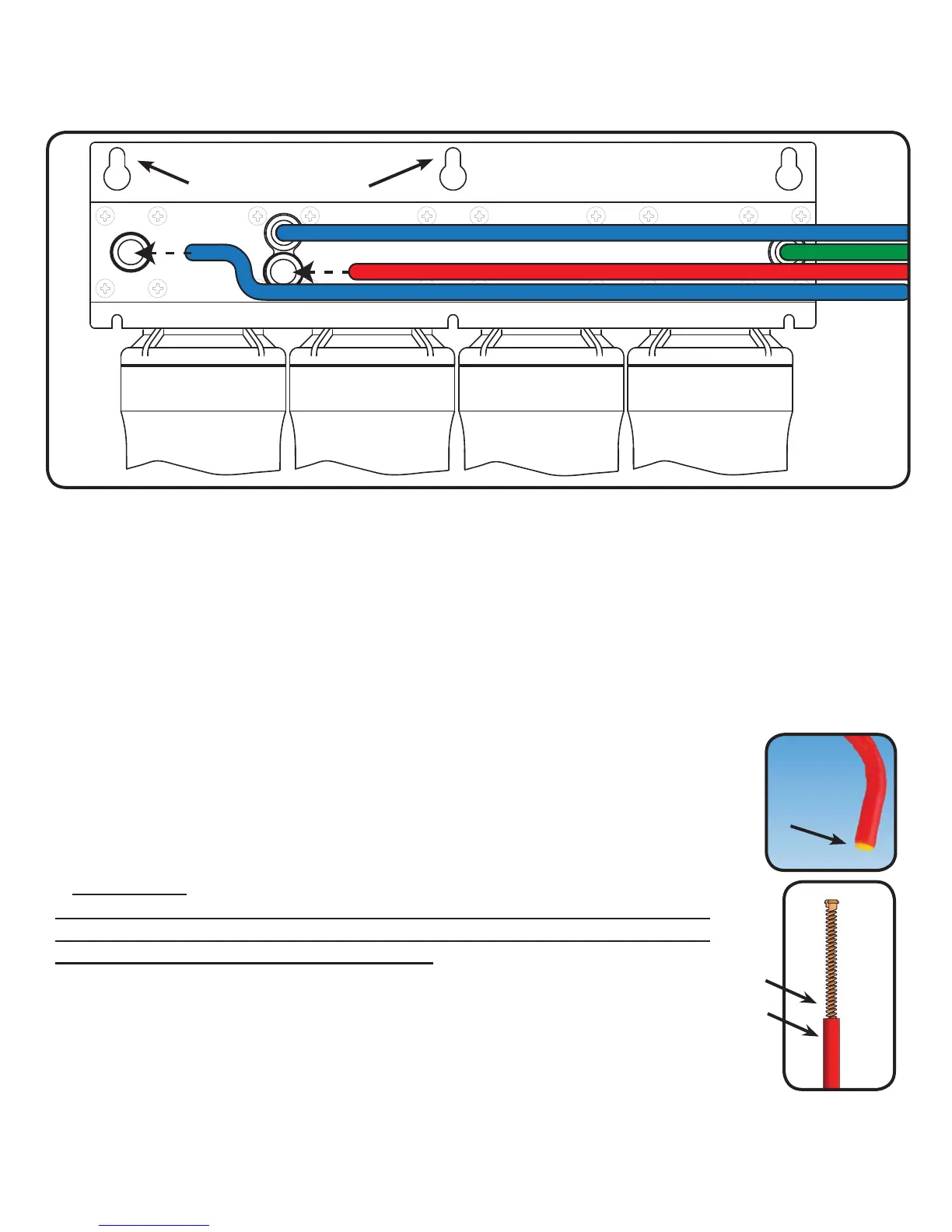

Rear View of RO-Pure System
RED TUBE - BRINE
BLUE TUBE - FAUCET
BLUE TUBE - TANK
GREEN TUBE
SEDIMENT
PRE CARBONMEMBRANEPOST CARBON
Mounting Holes
Flow
Restrictor
Insert
Flow Restrictor
Red Tubing to Manifold
(Attached to faucet)
