Premier RO-PURE - Plumbing Diagram and Parts List

Page 5
Item # Part # Description
1 610051 FILTER HEAD & ASO VALVE
2 134003 SHUT-OFF-VALVE QC
3 119007 TANK-3 GALLON-METAL-WHITE
4 560080 ADAPT-A-VALVE KIT
5 420063 FAUCET-AG-BN-MONITOR-NO TUBING
6 134018 TANK-VALVE-BALL-ELB-1/4QCX1/4F
7 228173 FITTING - 3/8” STEM X 1/4” QC ADAPTER
8 164056 DRAIN SADDLE 3/8” - KIT
9 119028 TANK STAND
10 142000 1/4” GREEN TUBING 90* - 4FT x 1
11 142001 1/4” BLUE TUBING 90* - 4FT x 2
12 400048 3/8” BLACK TUBING - 3FT x 1
13 142002 1/4” RED TUBING 90* - 4FT x 1
14 105311 SEDIMENT PRE-FILTER
15 105351 CARBON PRE-FILTER
16 105331 REVERSE OSMOSIS MEMBRANE 50GPD
17 105341 GAC CARBON POST FILTER

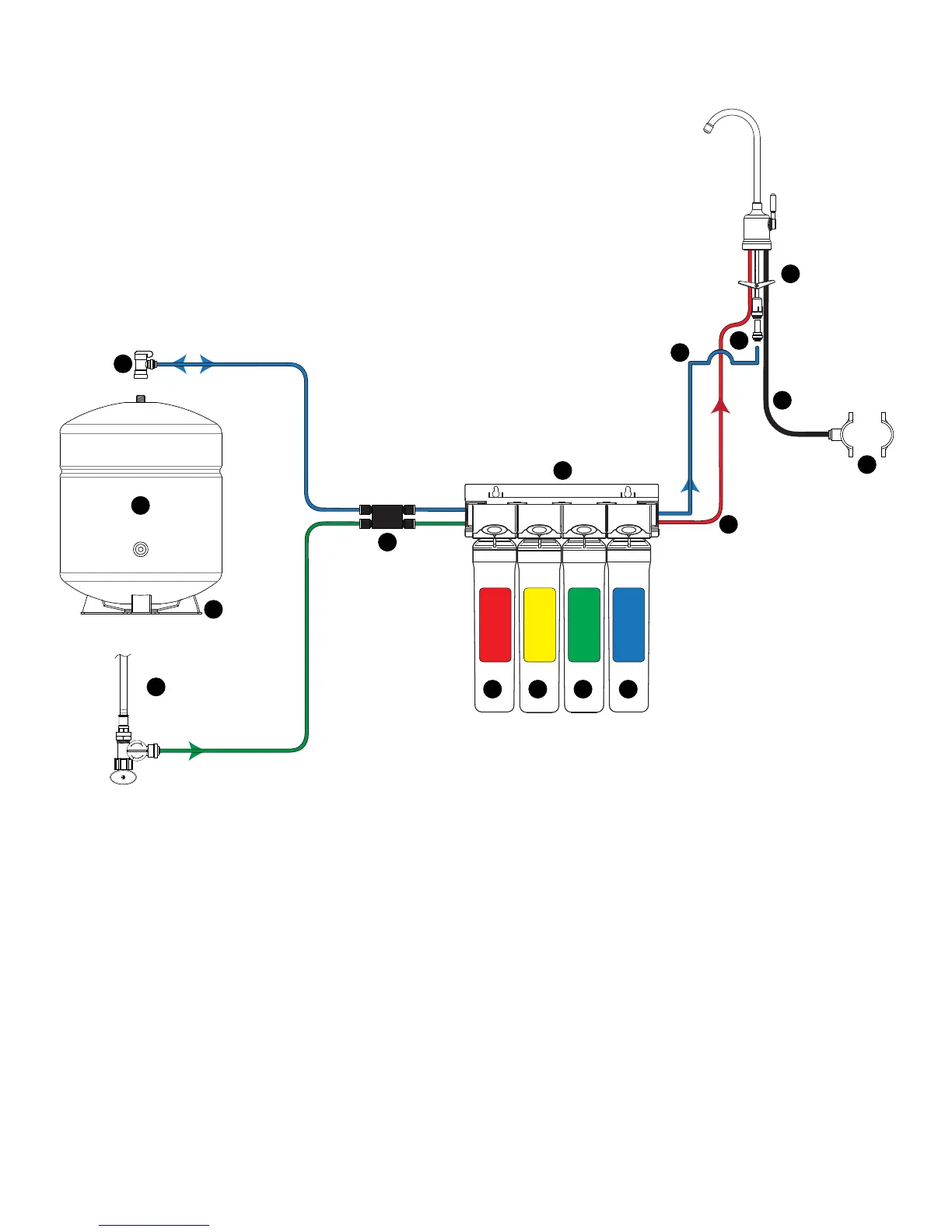

Plumbing Diagram and Parts List
COLD WATER
ANGLE-STOP
(SUPPLY)
ADAPT
-A-
VALVE
TANK
FAUCET
GREEN- 1/4” TUBE
FEED
5
3
4
RED - 1/4” TUBE
BRINE
6
BLUE - 1/4” TUBE
FAUCET
BLUE - 1/4” TUBE
TANK
DRAIN
SADDLE
8
2
AUTO SHUT-OFF VALVE
1
14 15 16 17
7
12
11
13
9
