Premier WP-5 - Standard Faucet Installation

Page 7
Feed both the red and black tubing through the pre drilled hole in the sink/counter until faucet
is seated.
Under the sink - on to the threaded faucet stem in order fi rst slide on the slotted washer (item
6), the white spacer with the open end UP (item 7), the plain washer (item 8), the hex nut
washer (item 9), and lastly secure with nut (item 10).
Step 6
PremierH2o Standard Faucet Installation
Step 5

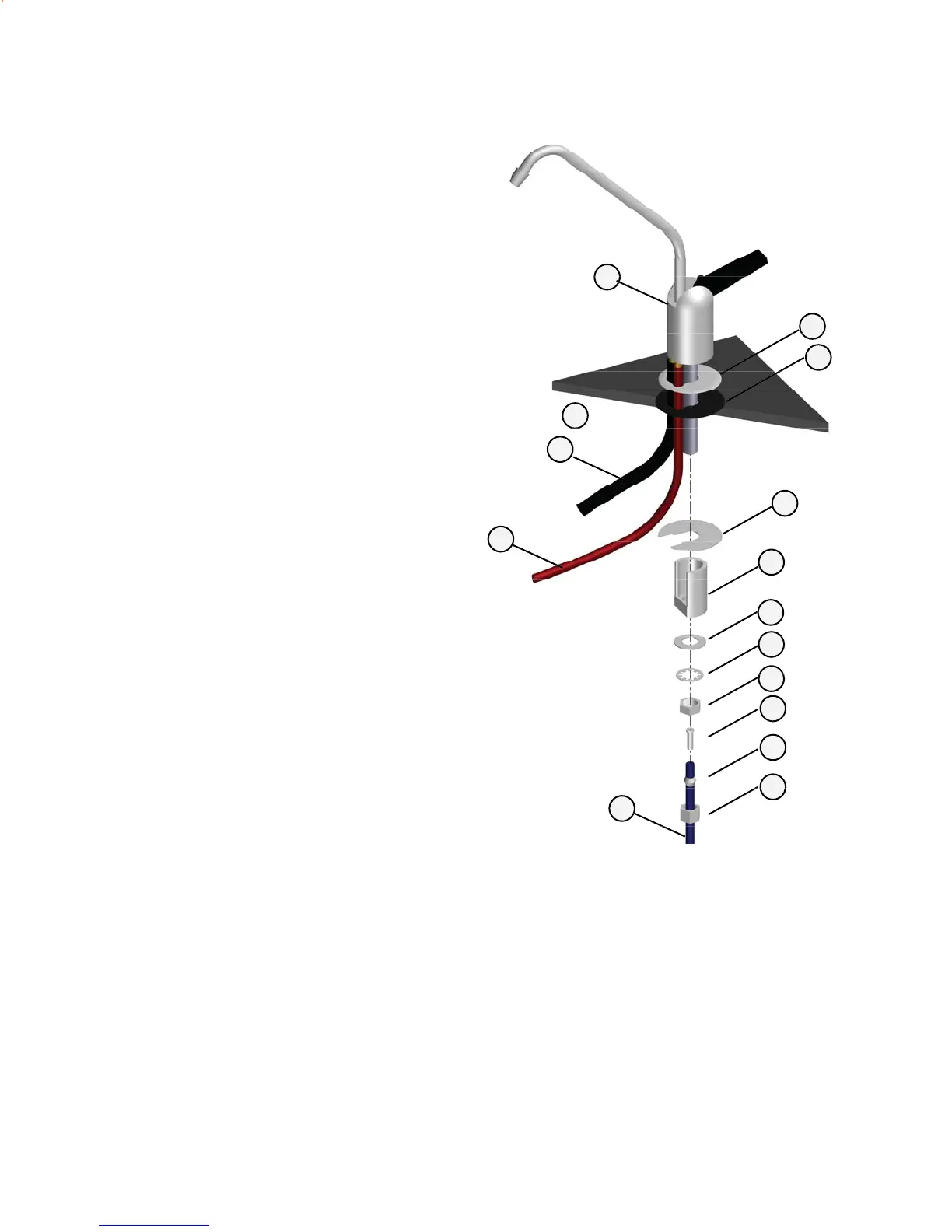

1. Faucet
2. Black Drain Tube (3/8” Black)
3. Red Tube 1/4”
4. Escutcheon Plate
5. Full Circle Rubber Gasket
6. Slotted Metal Washer
7. Plastic Sleeve
8. Plain Washer
9. Hex Nut Washer
10. Hex Nut
11. Plastic Tube Insert
12. White Plastic Delrin Sleeve
13. Water Connector Nut
14. Blue Tube 1/4”
Parts List
1
2
3
4
5
6
7
8
9
10
1
11
12
13
14
