I. Section I: QRP Mode Setup
1. Set up the DMX-40 as shown in Figure 1 below. Do not apply too much force
when plugging in the keyboard - make sure you have the USB plug correctly
oriented and aligned. Do not apply any downward pressure.

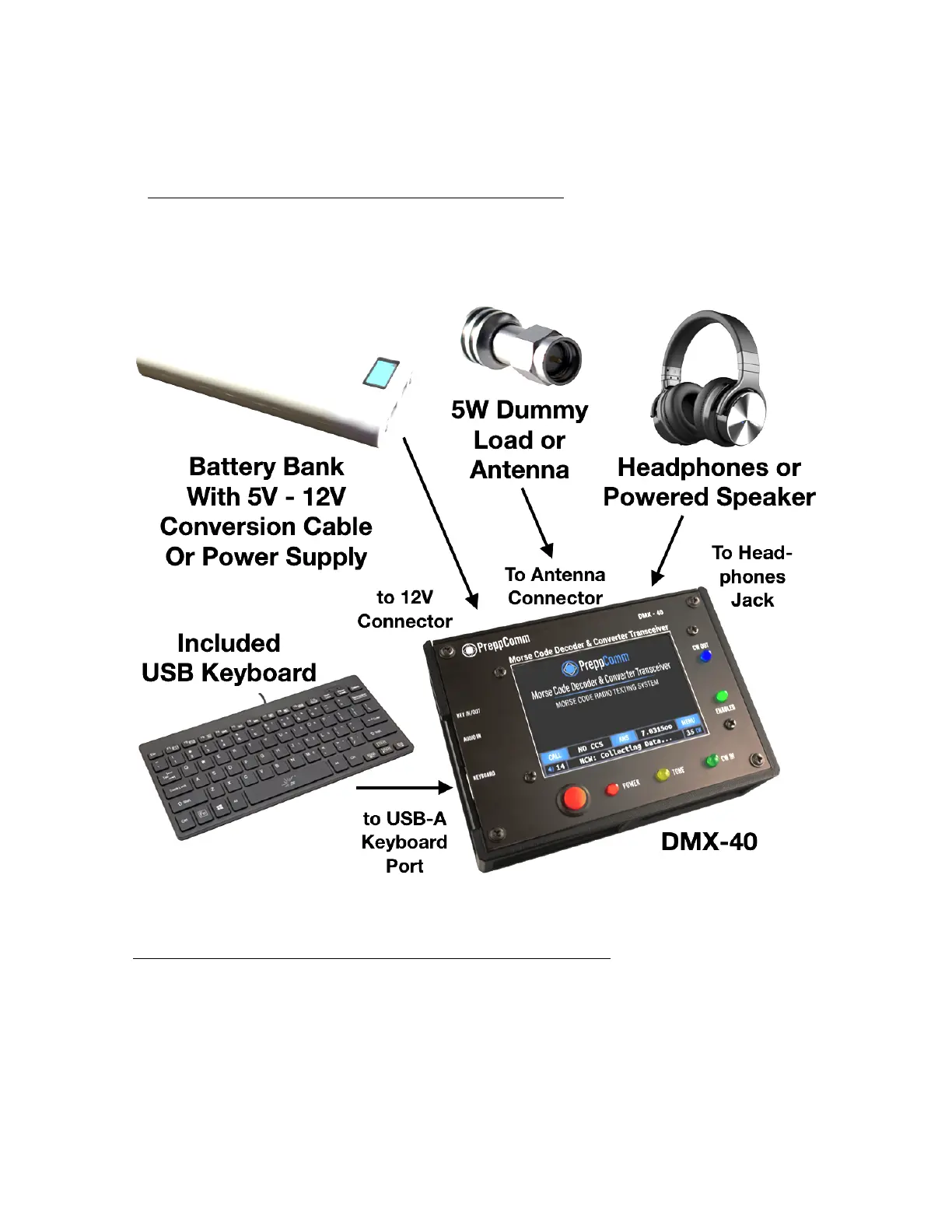

FIGURE 1: STATION SETUP AS STAND-ALONE STATION
2. Turn on the transceiver using the RED power switch.
WARNING: NEVER OPERATE THE TRANSMITTER WITHOUT A LOAD ON THE
ANTENNA CONNECTOR. DOING SO VOIDS YOUR WARRANTY FOR ANY
DAMAGE CAUSED BY AN UNLOADED TRANSMITTER.
If you plan to use a key to transmit, this will be covered at the end of this section.
