19
Colt Series www.pridemobility.com
III. YOUR SCOOTER
TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment
dial, key switch, battery condition meter, horn buttons, turn indicator buttons and the throttle control lever.
Please note that some of the features listed in this section are optional items and may not appear on your
scooter. Contact your authorised Pride Dealer for more information. See figure 4.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller
console does become exposed to moisture, do not attempt to operate your scooter until
the tiller console has dried thoroughly.

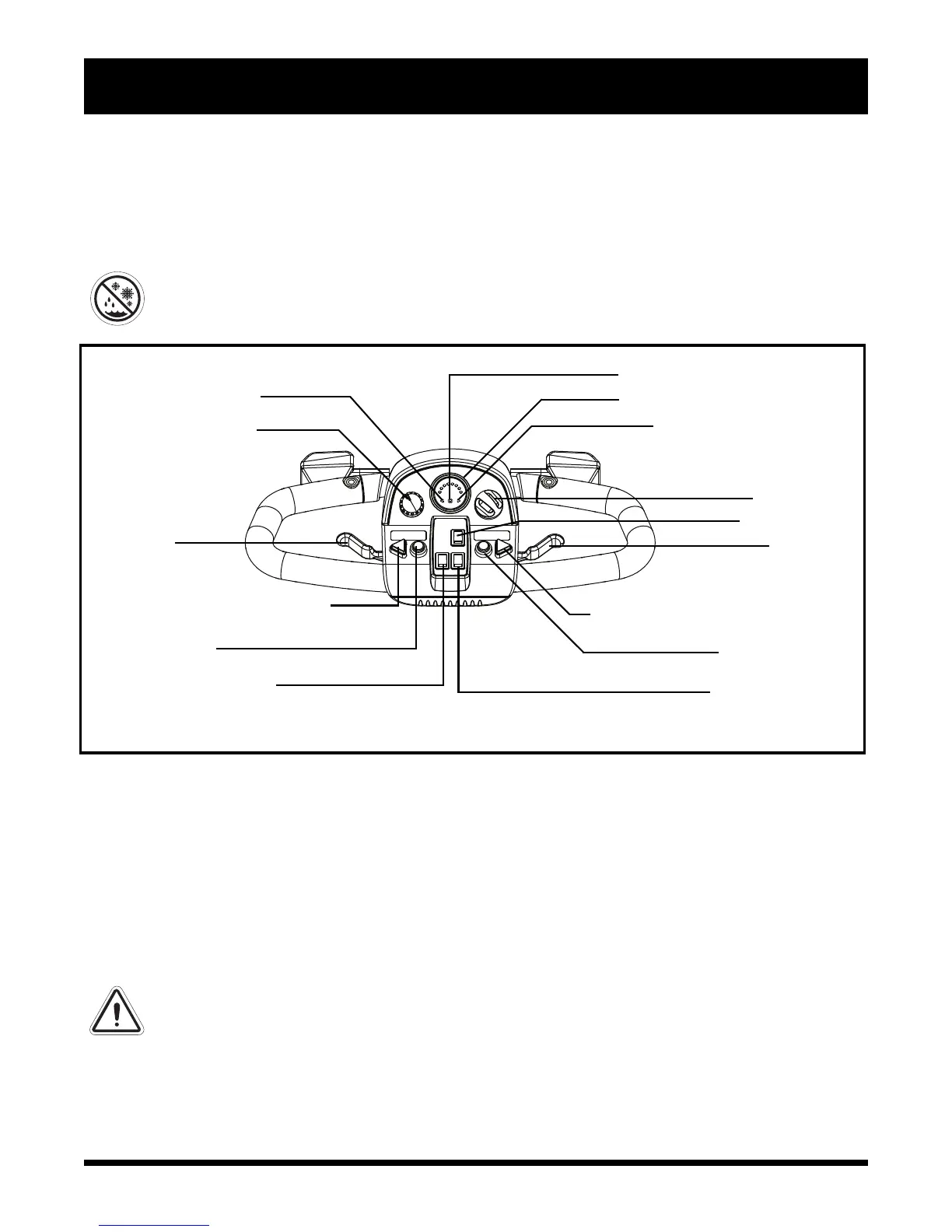

Figure 4. Tiller Console Components
Speed Adjustment Dial
This dial allows you to preselect and limit your scooter’s top speed.
The image of the tortoise represents the slowest speed setting.
The image of the hare represents the fastest speed setting.
Key Switch
Insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.
Turn the key counterclockwise to power down (turn off) your scooter.
WARNING! If the key is turned to the “off” position while your scooter is in motion, the
electronic brakes will engage and your scooter will come to an abrupt stop!
Battery Condition Meter
When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the
approximate battery voltage strength. For further information on battery charging, see IV. “Batteries and
Charging.”
SPEED ADJUSTMENT
DIAL
HORN BUTTON
BATTERY CONDITION METER
THROTTLE
CONTROL
LEVER
*LEFT TURN INDICATOR BUTTON
*RIGHT TURN INDICATOR BUTTON
KEY SWITCH
THROTTLE
CONTROL
LEVER
HORN BUTTON
*RIGHT TURN INDICATOR
*LEFT TURN INDICATOR
LIGHTS SWITCH
*HAZARD LIGHTS SWITCH
*OPTIONAL COMPONENTS AVAILABLE ON SOME MODELS
*HI-LOW SWITCH
STATUS LED
