Pride Mobility Colt Series - DISASSEMBLY AND ASSEMBLY; SCOOTER DISASSEMBLY

34
www.pridemobility.com Colt Series
BATTERY TIE-DOWN STRAP
VII. DISASSEMBLY AND ASSEMBLY

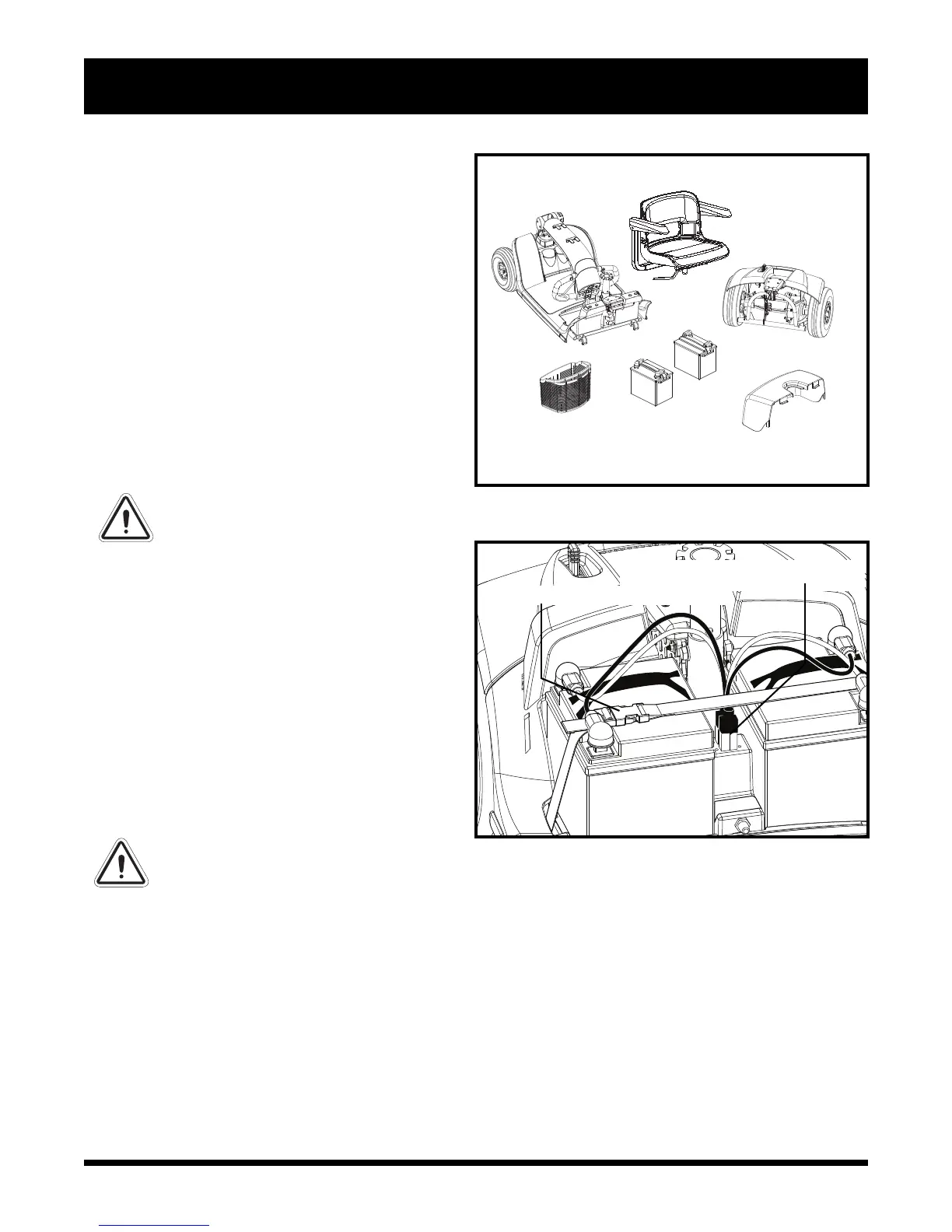

Figure 20. Scooter Components
Figure 21. Harness Connections
FRONT SECTION
SEAT
REAR SECTION
BATTERY SHROUD
BATTERIES
BASKET
BATTERY HARNESS CONNECTIONS
DISASSEMBLY
You can disassemble the scooter into several
pieces: the seat, the front section, the rear section,
the battery shroud (if equipped), the basket and
the batteries. See figure 20. No tools are required
to disassemble or assemble your scooter, but
keep in mind that the disassembled sections of
the scooter take up more floor space than the
assembled unit. Always disassemble or assemble
your scooter on a level, dry surface with suffi-
cient room for you to work and move around
your scooter–about 1.5 meters (5 feet) in all
directions. Remember that some scooter compo-
nents are heavy and you may need assistance
when lifting them.
WARNING! Do not lift beyond
your physical capability. Ask for
assistance when necessary
while disassembling or assem-
bling your scooter.
1. Remove the seat by lifting it straight up and
off of the scooter. If you encounter resistance
when removing the seat, disengage the seat
rotation lever and swivel the seat back and
forth while lifting up on the seat.
2 Gently pull the battery shroud up and off of
the scooter.
3. Disconnect the battery tie-down strap.
4 Unplug both battery harnesses by pulling
each harness straight up. See figure 21.
5. Remove the batteries from the battery wells.
WARNING! Failure to unplug both
battery harnesses prior to sepa-
rating the front and rear sections
could result in permanent dam-
age to the scooter.
