Pride Mobility Colt Series - CHARGING SYSTEM AND BATTERY COMPONENTS

21
Colt Series www.pridemobility.com

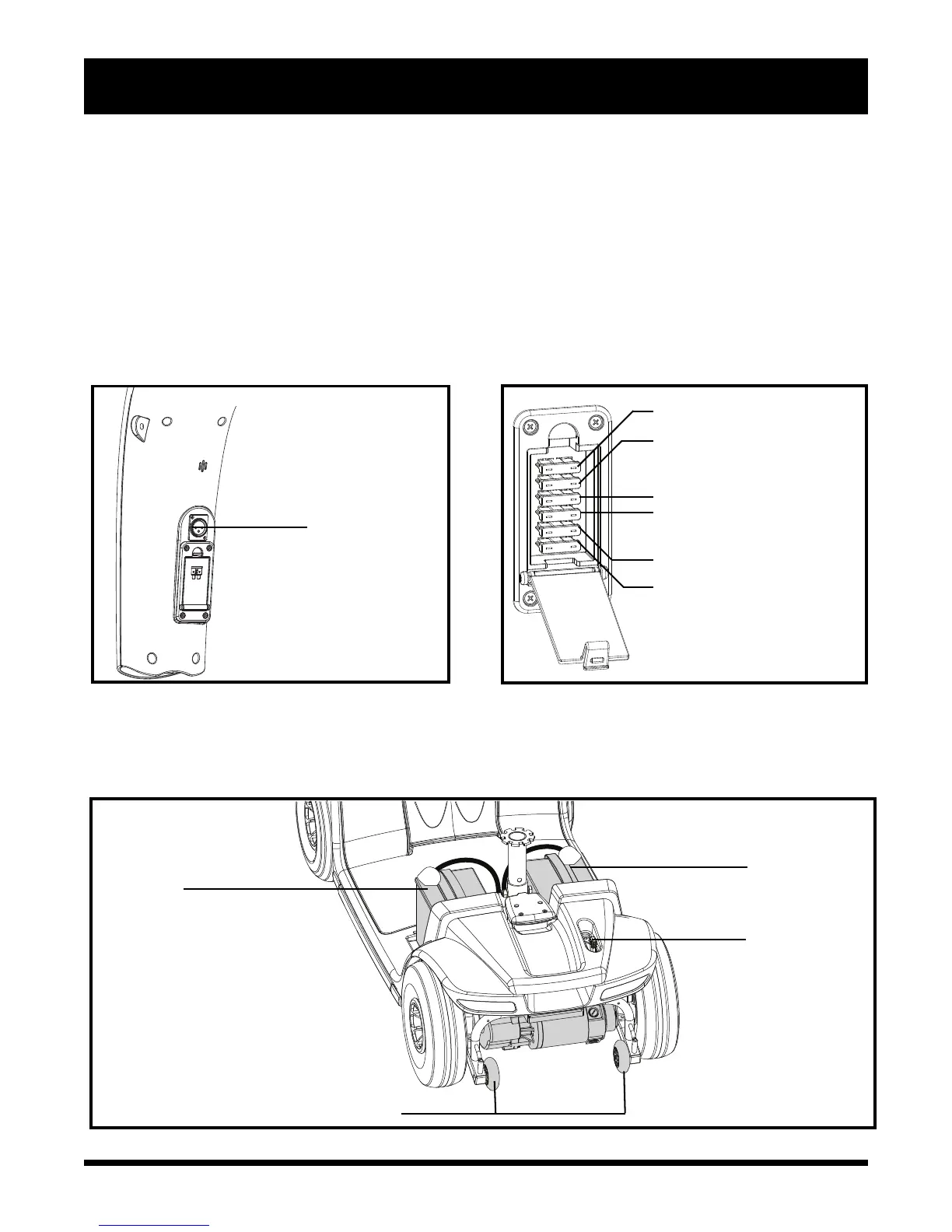

Off-board Charger Port
The off-board charger power lead plugs into this port during battery charging. The off-board charger port
is located on the tiller. See figure 5.
Electrical System Fuses
Your scooter is equipped with a series of electrical system fuses, which help protect the off-board charg-
ing system, key switch and lighting system from receiving an overload of electrical current. These fuses
are the same type used in automobiles and are located in a compartment on the tiller. See figure 6.
NOTE: Keep all electrical areas clean and free of moisture and foreign material.
III. YOUR SCOOTER
Figure 6. Tiller Console Fuses
KEY SWITCH (5A)
OFF-BOARD CHARGER (10A)
REAR TAIL LIGHTS (1A)
LOWER HEADLIGHT (1A)
RIGHT TURN INDICATOR (1A)
LEFT TURN INDICATOR (1A)
Figure 5. Off-board Charger Port
OFF-BOARD
CHARGER PORT
Figure 7. Rear Section
BATTERY
BATTERY
MANUAL
FREEWHEEL
LEVER
ANTI-TIP WHEELS
REAR SECTION
The batteries, anti-tip wheels, motor/transaxle assembly (not shown), main circuit breaker (reset button)
and the manual freewheel lever are located on the rear section of your scooter. See figure 7.
