TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
1
6
12
13
9
7
8
2
3
5
4
14
11
10
1 Q-LOGIC JOYSTICK MODULE
2 POWER MODULE
3 BUS CABLE EXTENSION
4 POWER TAKE OFF (PTO) HARNESS
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8 LEFT MOTOR INTERFACE HARNESS
9 RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13 CHARGER POWER CORD
14 RUN PLUG
5b
10a
10c
10b
13a
11c
11a
3a
3b
6a
7a
1b
1a
11b
9b
8b
9a
5a
8a
4b
4a

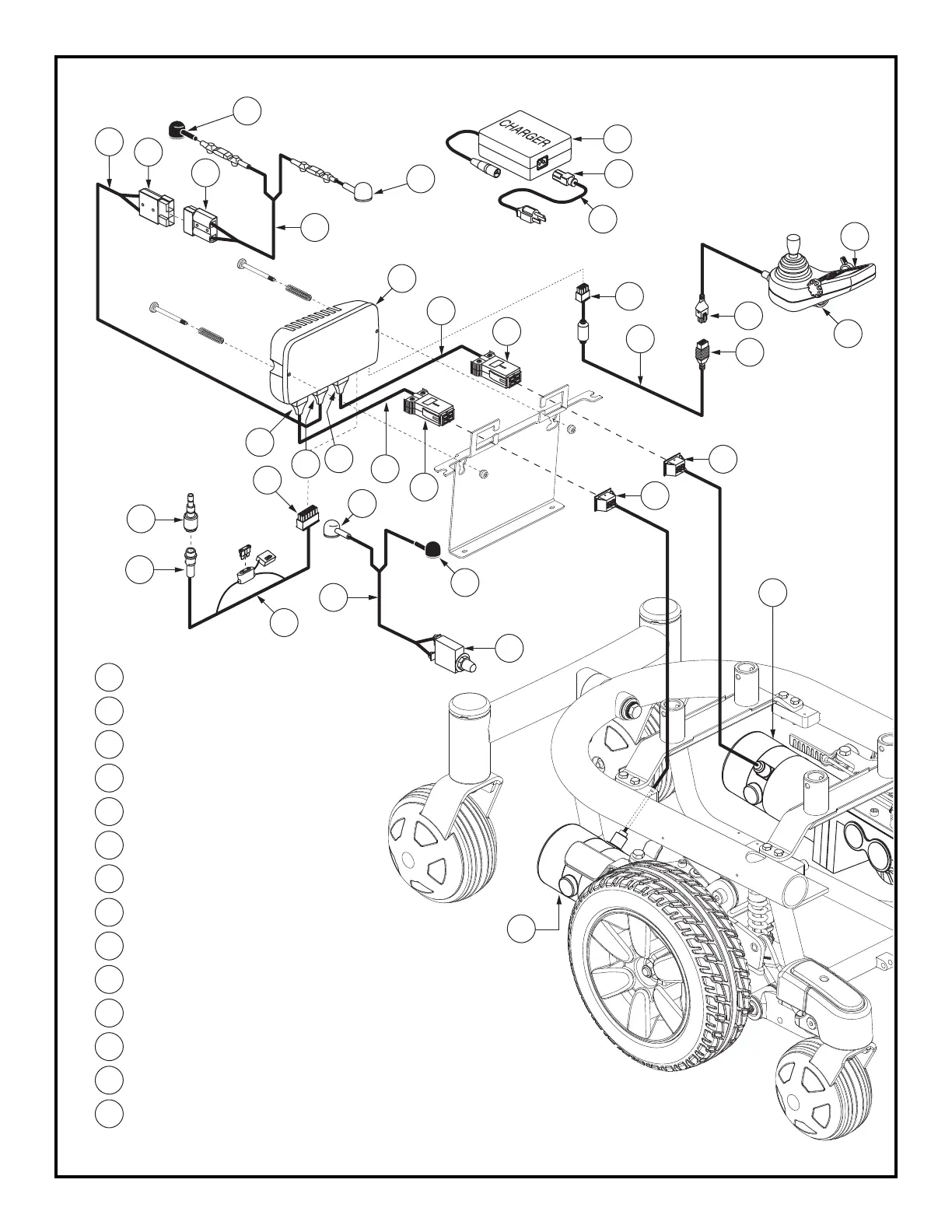

Diagram 4. J6 with Q-Logic Electronics 3D Wiring Diagram
