J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide www.pridemobility.com 5

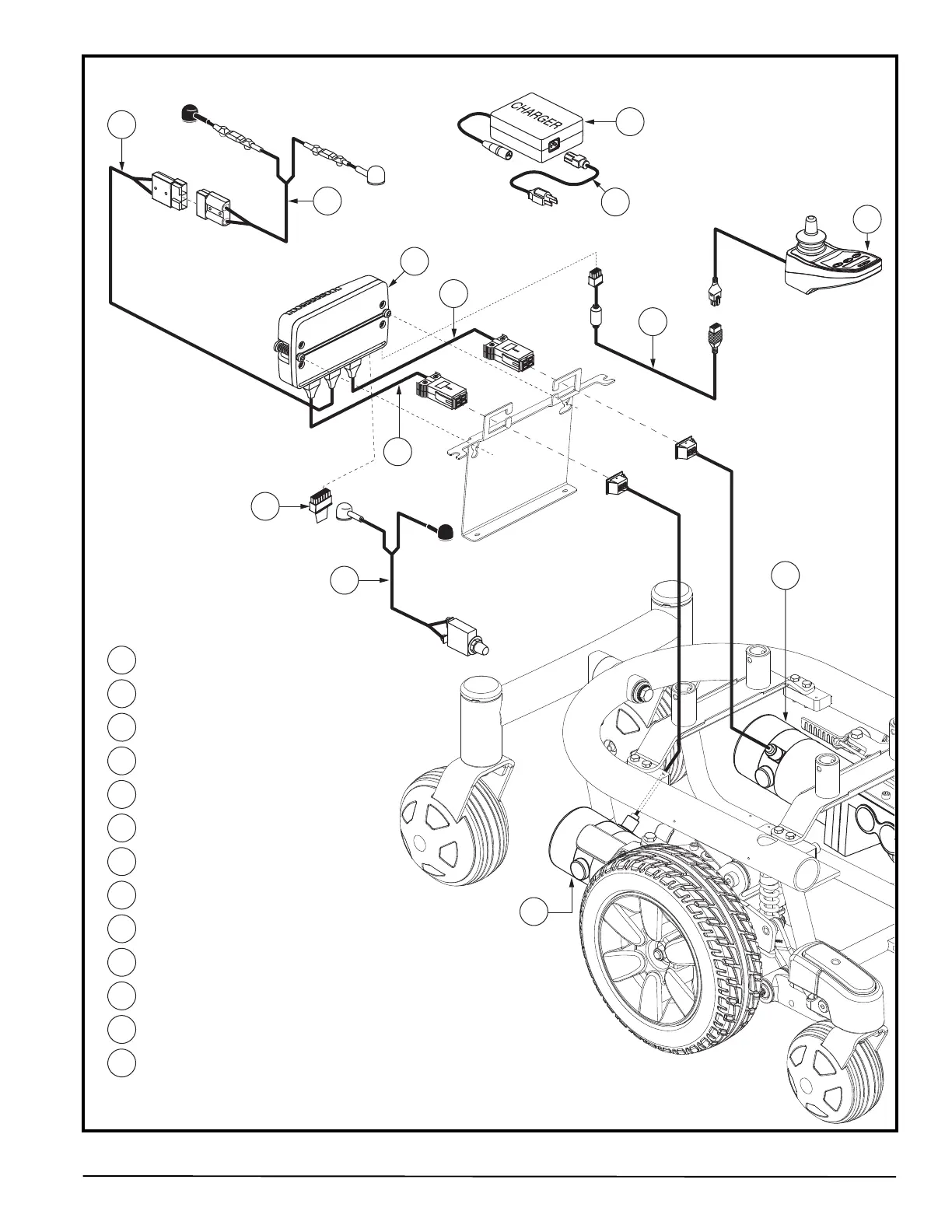

Diagram 1. J6 with NE or NE+ Electronics Troubleshooting Key
1 NE OR NE+ JOYSTICK MODULE
2 POWER MODULE
3 BUS CABLE EXTENSION
4 RUN PLUG
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8 LEFT MOTOR INTERFACE HARNESS
9 RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13 CHARGER POWER CORD
1
6
4
12
13
9
7
8
2
3
5
11
10
TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
