6 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide

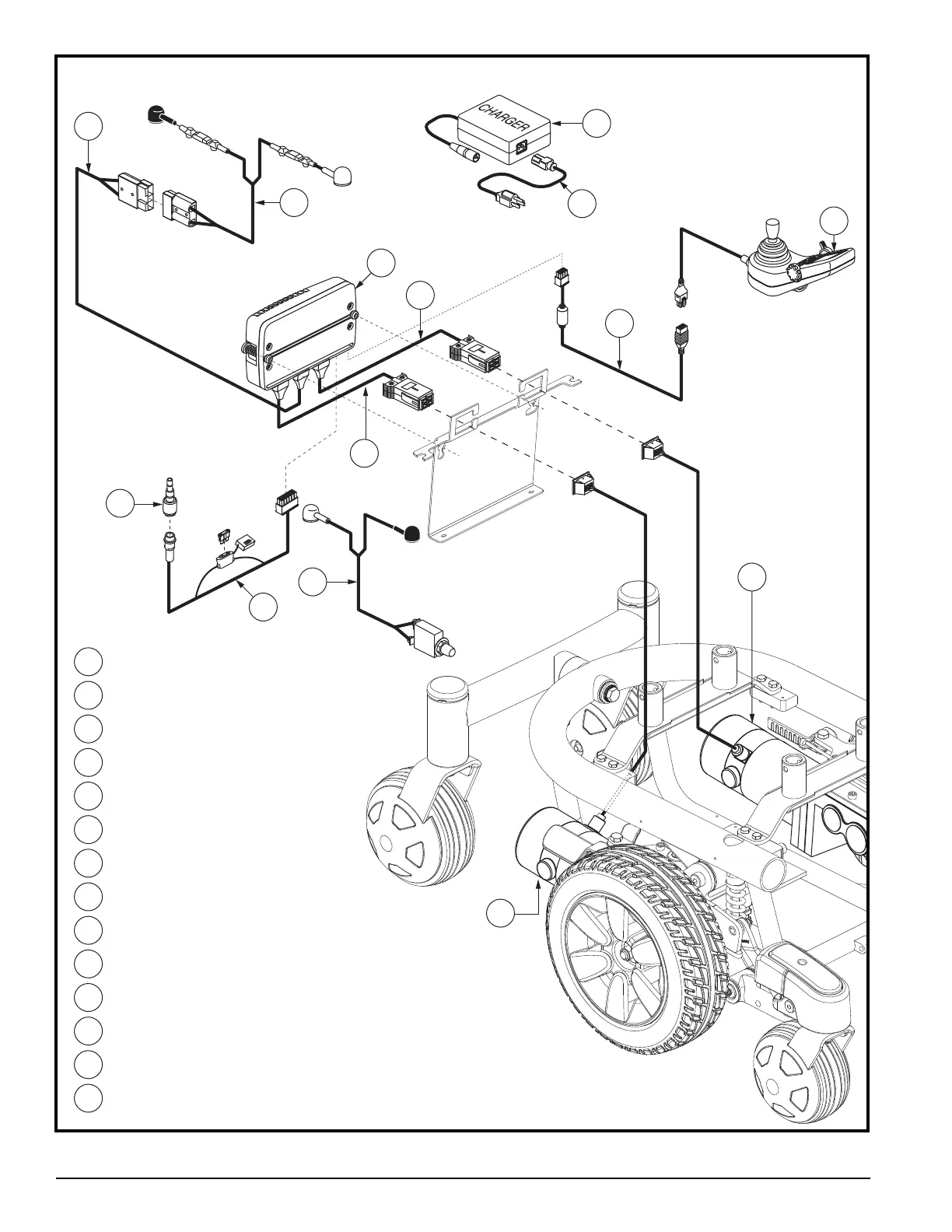

Diagram 2. J6 with Q-Logic Electronics Troubleshooting Key
TO REAR BATTERY (-)
TO FRONT
BATTERY (+)
1
6
12
13
9
7
8
2
3
5
4
14
11
10
1 Q-LOGIC JOYSTICK MODULE
2 POWER MODULE
3 BUS CABLE EXTENSION
4 POWER TAKE OFF (PTO) HARNESS
5 POWER INTERFACE HARNESS
6 LEFT MOTOR
7 RIGHT MOTOR
8 LEFT MOTOR INTERFACE HARNESS
9 RIGHT MOTOR INTERFACE HARNESS
10 BATTERY CABLE
11 BATTERY/CIRCUIT BREAKER HARNESS
12 OFF-BOARD CHARGER
13 CHARGER POWER CORD
14 RUN PLUG
