Jazzy 1113 www.pridemobility.com 27

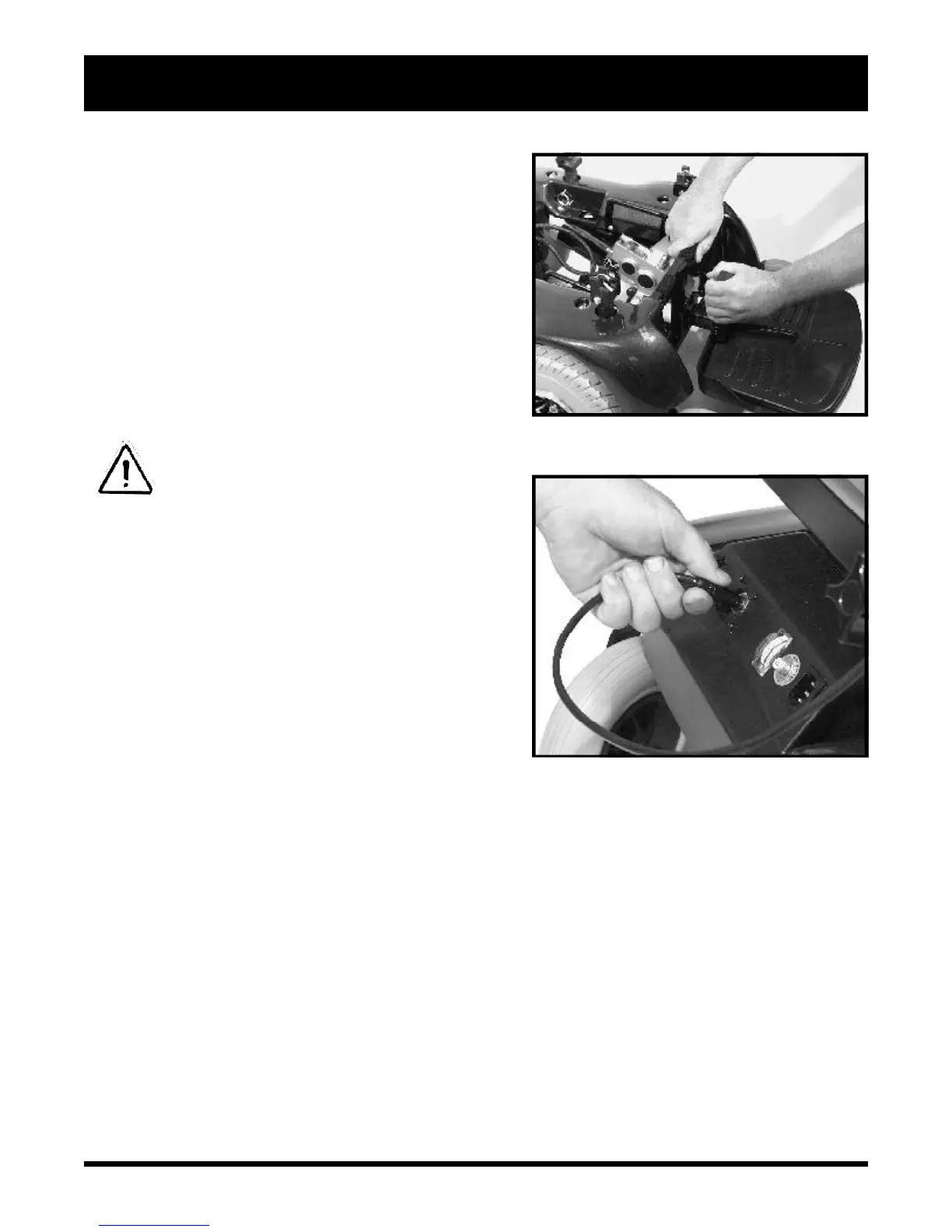

Figure 31. Mounting the Footrest
VI. ASSEMBLY
Figure 32. Controller Connector
To mount the footrest:
1. Match the two tabs at the back of the footrest mounting
bracket with the two semicircular notches in the vertical
bar of the front frame.
2. Push the tabs through the matching notches.
3. Slide the footrest down into place. See figure 31.
To connect the controller:
1. Attach the controller to the seat arm. See V. “Comfort
Adjustments.”
2. Plug the controller connector into the electronics tray on
the rear battery tray weldment as shown in figure 32.
WARNING! Do not place the controller
cable so that it can be pinched in the seat
frame or the power base frame.
