IX. CARE AND MAINTENANCE
Follow these easy steps for a quick and safe tube or
tyre replacement:
1. Completely deflate the tyre if pneumatic.
2. Remove the nut from the wheel axle. See figure 39.
3. Pull the wheel off of the axle.
4. Separate the tyre and tube from the rim.
5. Remove the old tube and/or tyre and replace with new
tube or tyre.
6. Slide the wheel back onto the shaft and torque the nut to
16 ft.-lbs.
7. Inflate the tyre to 2.4 bar (35 psi) if pneumatic.
BATTERY REPLACEMENT
WARNING! Battery posts, terminals, and
related accessories contain lead and lead
compounds. Wear goggles and gloves
when handling batteries and wash hands
after handling.
WARNING! Pride Power Chair batteries are
heavy. See specifications table. If you are
unable to lift that much weight, be sure
to get help. Lifting beyond your capacity
can result in personal injury.
To replace the batteries:
1. Disconnect the controller cable and remove the seat. See
IV. “Disassembly.”
2. Disconnect the front battery box and rear battery box
from the electronics tray. See figure 40.
3. Lift out each battery box, one at a time, and set them on a
solid, flat surface. See figure 41.
4. Unfasten the battery box straps on the bottom of the box.
5. Lift up the top cover.
6. Remove the rubber covers from the terminals. Unscrew
the terminal nuts and bolts and disconnect the battery wires
from the battery terminals.
7. Remove the battery from the bottom cover.
8. Place the new battery into the bottom cover.
9. Connect the red battery wire to the positive (+) terminal.
Make sure you tighten the nuts and bolts so that the
connection is secure.
10. Connect the black battery wire to the negative (-) terminal.
Make sure you tighten the nuts and bolts so that the
connection is secure.
11. Place the rubber covers over the terminals.

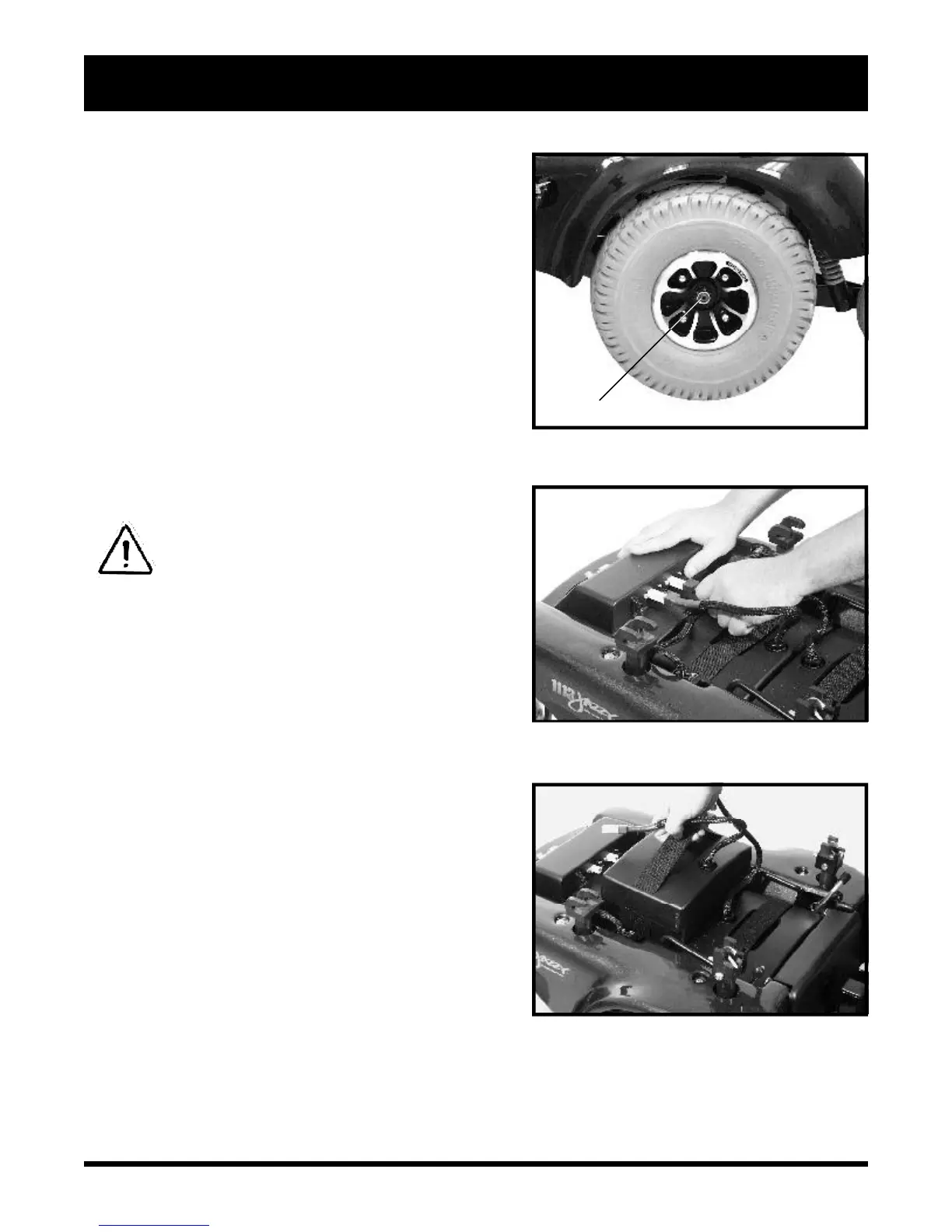

Figure 39. Drive Wheel
NUT
Figure 41. Battery Box Removal
Figure 40. Disconnecting Battery Connectors
