V . COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After you have become familiar with your power chair’s operation, you may find the need to make adjustments to
the seat. There are some adjustments you can make to increase your comfort such as seat height and angle, armrest
height and angle, the footrest height and angle, and the controller position.
WARNING! If your power chair was configured at your authorised Pride Provider or service
center, please consult your health care professional before changing seat position or
making any other adjustment. Some of these adjustments may degrade power chair
performance and safety by changing its center of gravity.

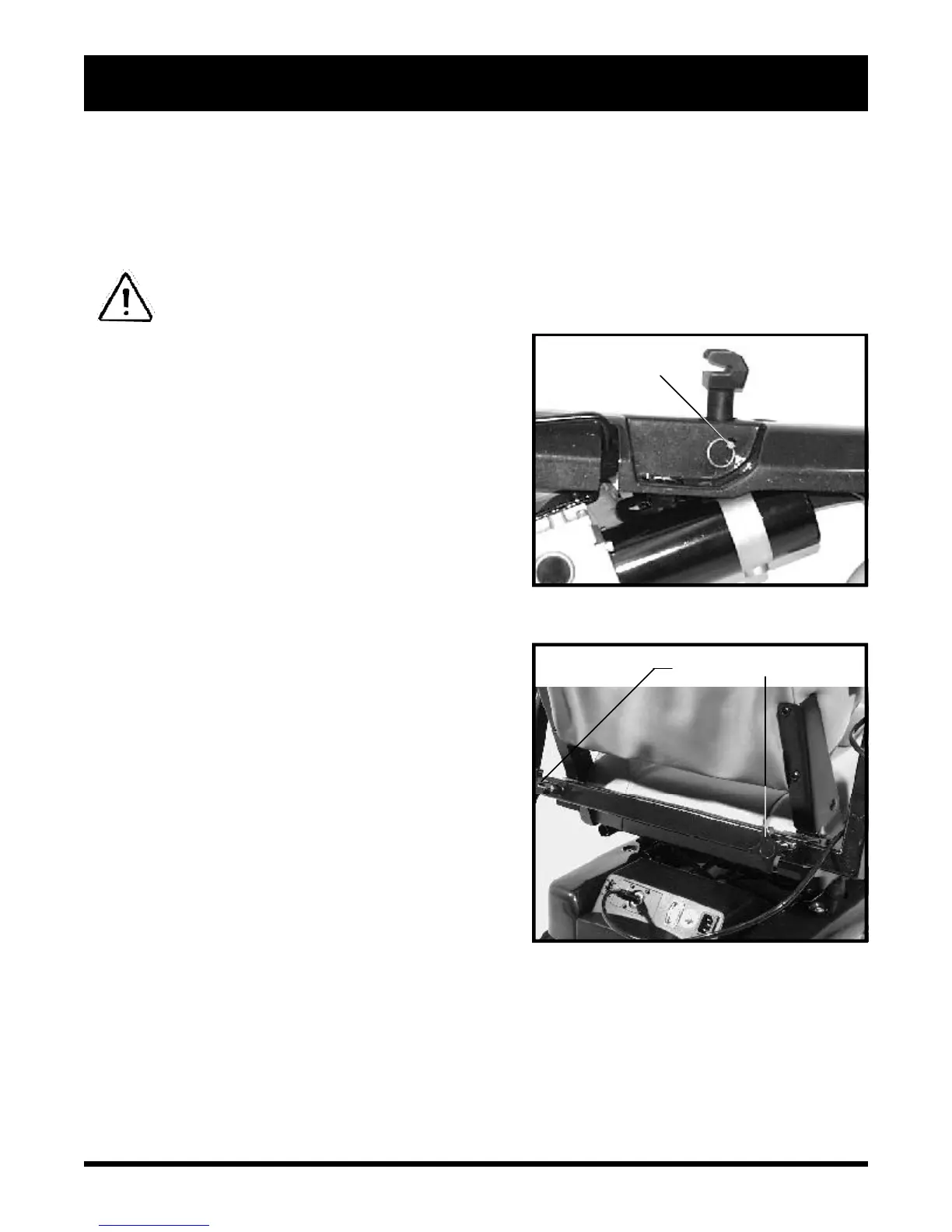

Figure 20. Armrest Width Adjustment
ADJUSTMENT KNOBS
Figure 19. Seat Height Adjustment
BALL DETENT PIN
You may need the following to make comfort adjustments:
n metric/standard socket set and ratchet
n adjustable spanner
n thread lock
Seat Height and Angle
You can change the seat height by either raising or lowering
the four seat posts.
To change the seat height:
1. Remove the seat. See IV. “Disassembly.”
2. Remove the ball detent pin from each seat post. See figure 19.
NOTE: Before you can remove the ball detent pin from
each front seat post, you must first remove the front
battery box. See IV. “Disassembly.”
3. Raise or lower each seat post to the desired position.
4. Install the ball detent pin into each seat post.
5. Reinstall the seat.
To change the seat angle:
You can change the seat angle by either raising or lowering
only one set of seat posts (front or rear).
Armrest Width
To change the armrest width:
1. Locate the two knobs on the armrest receiver bracket.
See figure 20.
2. Loosen the knobs and slide the armrests in or out to the
desired width.
3. Tighten the knobs.
