Jazzy 1113 www.pridemobility.com 49
IX. CARE AND MAINTENANCE

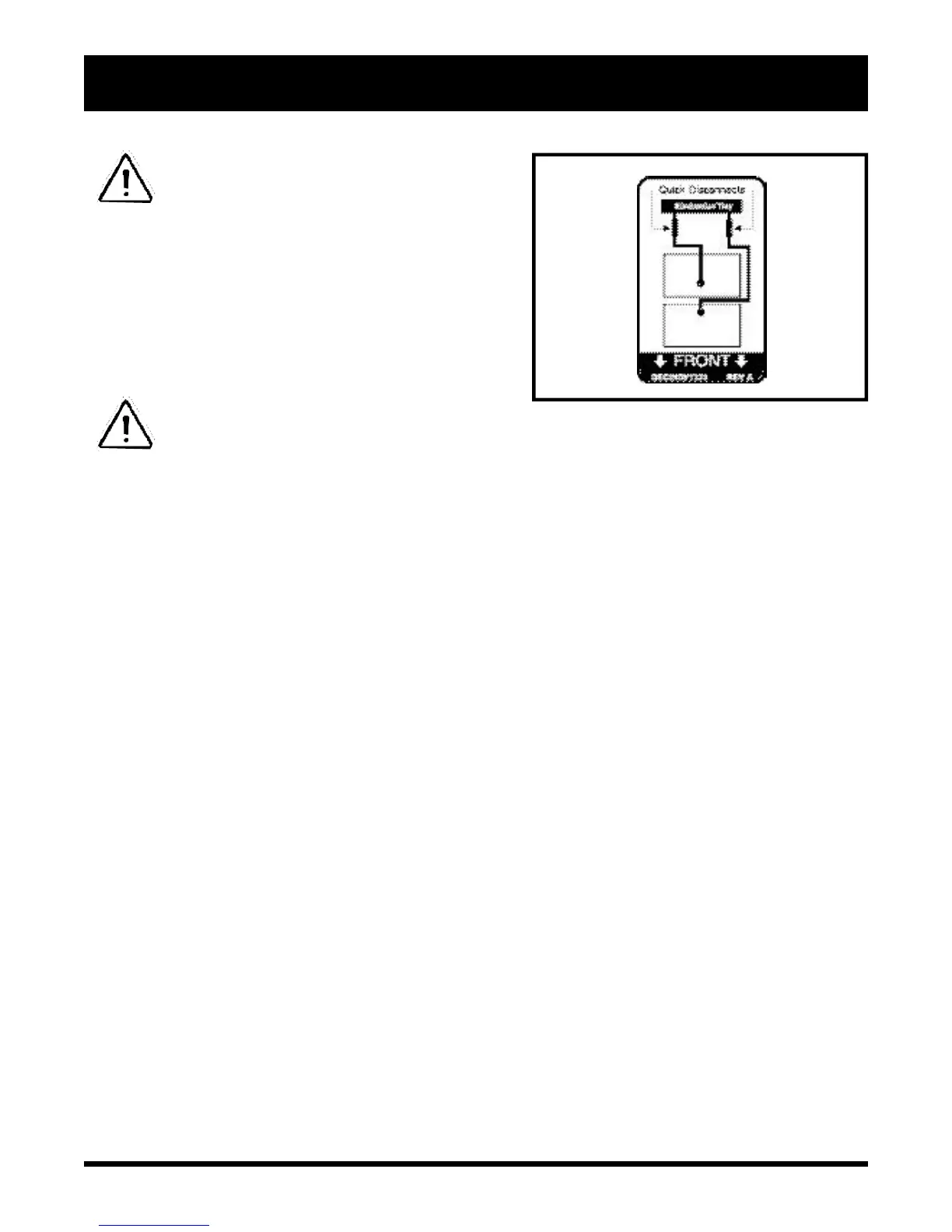

Figure 42. Battery Wiring Diagram
WARNING! Make sure you tighten the
fasteners so that the connections are
secure.
12. Place the top cover back onto the bottom cover.
13. Fasten the straps and make sure the connection is secure.
Place the battery box aside.
14. For the other battery, repeat steps 4 - 13.
15. Make sure that the battery terminals are opposite the
battery charger.
WARNING! If you do not position the
battery terminals on the opposite side of
the charger, you run the risk of shorting
out the batteries and severely damaging
your power chair!
16. Place the rear battery box back into the battery well.
17. Place the front battery box back into the battery well.
18. Connect the rear battery box connector and the front battery box connector to the electronics tray.
19. Install the seat.
20. Connect the controller cable.
CORRECTIVE MAINTENANCE
If the battery condition meter does not light up when you turn on the power:
n Check the harness connections. Make sure they are tight.
n Check the circuit breaker. Reset it if necessary.
n Check the battery connections.
If the above conditions prove normal, you can load test the batteries with a battery load tester. These testers are
available at automotive parts stores. Disconnect both batteries before load testing, and follow the directions that
came with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair
still does not power up, contact your authorised Pride Provider.
WHEN TO SEE YOUR PRIDE PROVIDER FOR SERVICE
The following symptoms could indicate a serious problem with your power chair. If necessary, contact an authorised
Pride Provider. When calling, have the model number, serial number, nature of the problem, and the trouble code
if available.
n Motor noise n Frayed harnesses
n Cracked or broken connectors n Uneven wear on any of the tyres
n Jerky motion n Pulling to one side
n Bent or broken wheel assemblies
n Does not power up
n Powers up, but does not move
