13Legend
REAR SECTION
The rear section contains the electronics module, bulbs and fuses for the rear lights, fuses for the front console and
battery charger, the main circuit breaker (and reset button), the manual freewheel lever, the charger power cord
receptacle, the motor transaxle assembly, and the ammeter. See figure 8. The onboard battery charger and the
batteries are also contained in the rear of your Scooter, but are not visible in figure 8. The anti-tip wheels are at the
rearmost part of your Scooter.
IV. DESCRIPTION
Bulbs
These 24V 5W bulbs are located beneath the rear shroud, directly under the running light and turn indicator/
hazard light covers. They provide illumination for your running lights, turn indicators, and hazard lights. For infor-
mation on replacing these bulbs, see X. Care and Maintenance.
Fuses
The fuses protect your Scooters lighting and charging systems from receiving too much electrical current. The
fuses used in the Scooter are the same fuses that are used in automobiles. For information on replacing the fuses,
see X. Care and Maintenance.
n You need one 3-amp fuse for each of the 4 rear lights and one 3-amp fuse for the control console module.
n You need one 5-amp fuse for the battery charger.
WARNING! The replacement fuses must match the rating of the original fuses exactly. If you
install a fuse with an incorrect rating, you may damage the electrical system and create a potential
fire risk.

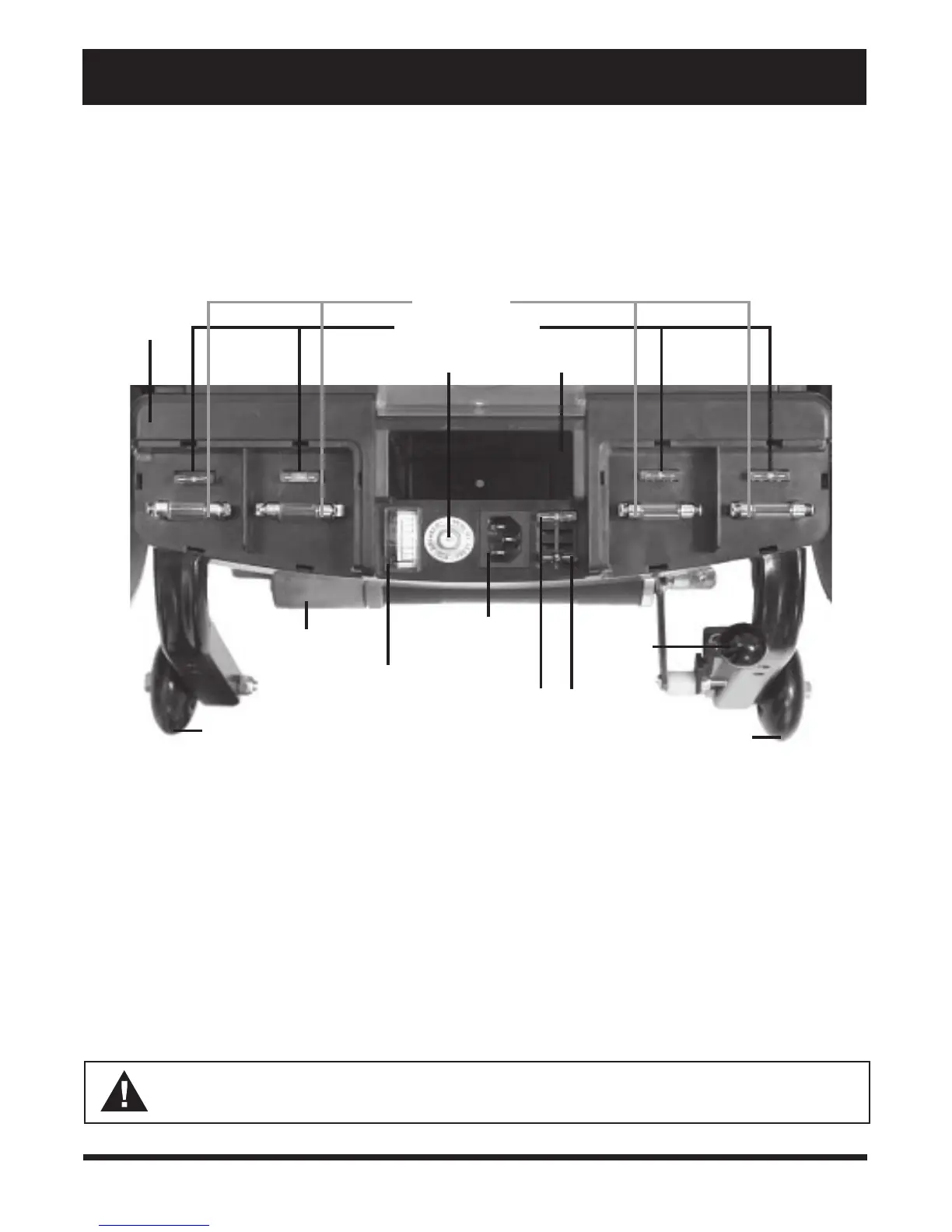

FIGURE 8. REAR SECTION (LIGHT COVERS REMOVED)
CHARGER
POWER
CORD
RECEPTACLE
MAIN CIRCUIT BREAKER
(RESET BUTTON)
MOTOR/TRANSAXLE
ASSEMBLY
ANTI-TIP WHEELS
REAR STORAGE
COMPARTMENT
MANUAL
FREEWHEEL
LEVER
AMMETER
24V 5W BULBS
3 V REAR LIGHT FUSES
3-AMP CONTROL
CONSOLE MODULE FUSE
AND 5-AMP BATTERY
CHARGER FUSE
ANTI-TIP WHEELS
ELECTRONICS
MODULE
