VII. COMFORT ADJUSTMENTS
ARMREST WIDTH ADJUSTMENT
The armrest width of your Scooter can be adjusted inward and outward.
1. Loosen the armrest adjustment knobs at the back of the seat frame. See figure 14.
2. Slide the armrests in or out to the desired width.
3. Tighten the armrest adjustment knobs.
The armrests also pivot upward to make getting on and off of your Scooter easier.

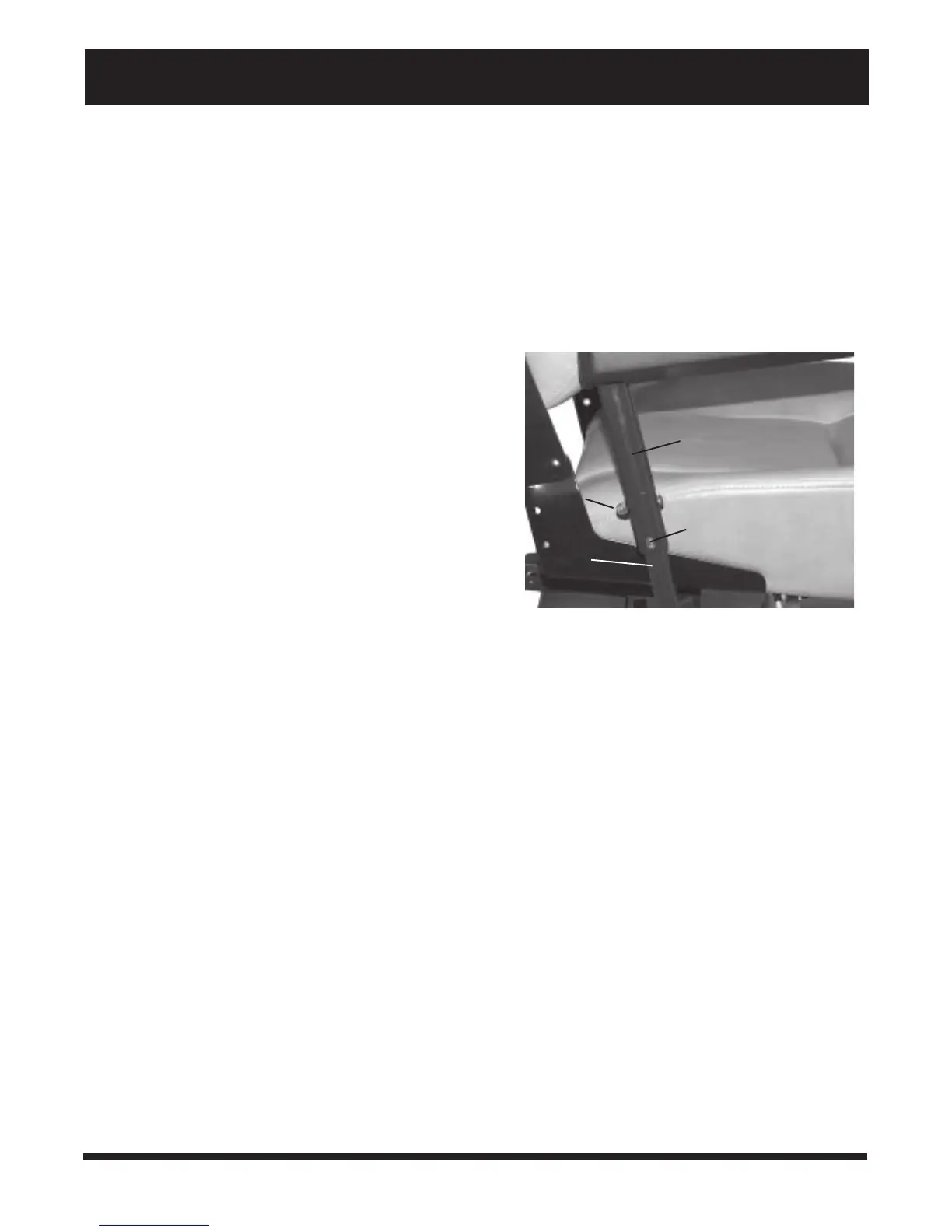

FIGURE 15. ARMREST HEIGHT ADJUSTMENT
ACORN
NUT
SETSCREW
HEIGHT ADJUSTMENT
TUBE
ARMREST
UPRIGHT
ARMREST HEIGHT ADJUSTMENT
You will need the following tools to adjust the height of the
armrests.
n 5/32 hex key
n 1/8 hex key
n 7/16 spanner
1. Loosen the setscrew on the side of the height adjust-
ment tube with the 1/8” hex key. See figure 15.
2. Loosen and remove the acorn nut and screw holding
the height adjustment tube in place.
3. Raise or lower the height adjustment tube to the de-
sired height.
4. Align the holes in the adjustment tube with the holes
in the armrest upright.
5. Insert the screw through the holes in both the height
adjustment tube and the armrest upright.
6. Install and tighten the acorn nut.
7. Tighten the setscrew on the side of the height adjust-
ment tube.
8. Repeat for the other armrest.
SEAT HEIGHT ADJUSTMENT
