PrimaLuceLab iSrl EAGLE3 User Manual
To power EAGLE from the wall Insert the "Power supply 12V for Eagle" into the socket (1 - Power Input 12V); insert the
"Power cable for 12V Eagle with banana plug" in case of battery power (image 2). Then press the power button (7). A red
LED will light up; the brightness is calibrated not to be annoying during the night so in daylight it might be difficult to noti-
ce.
"
page !6

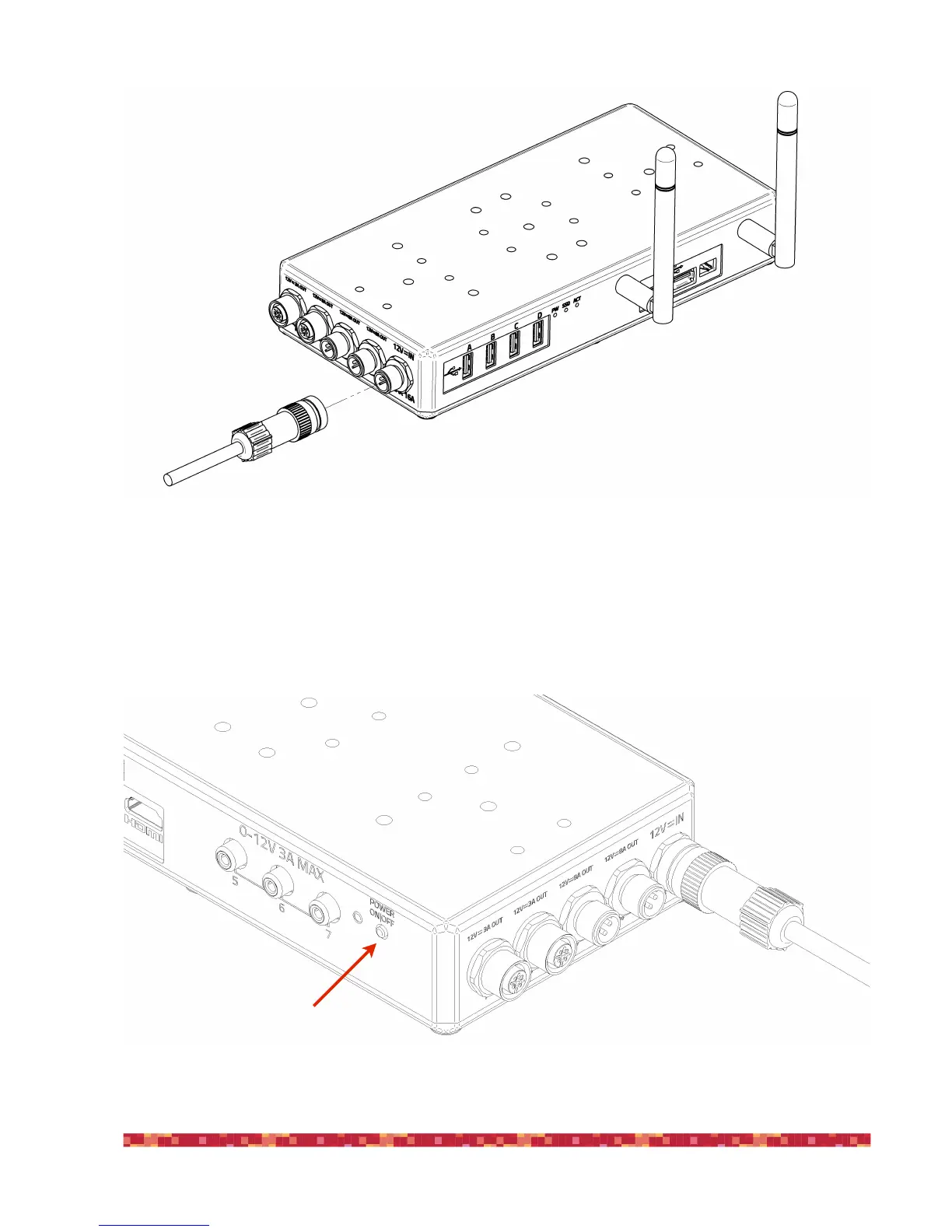

Image 2: Connect the power plug into the socket (1)
Image 3: press the Start button (7) to switch EAGLE on
