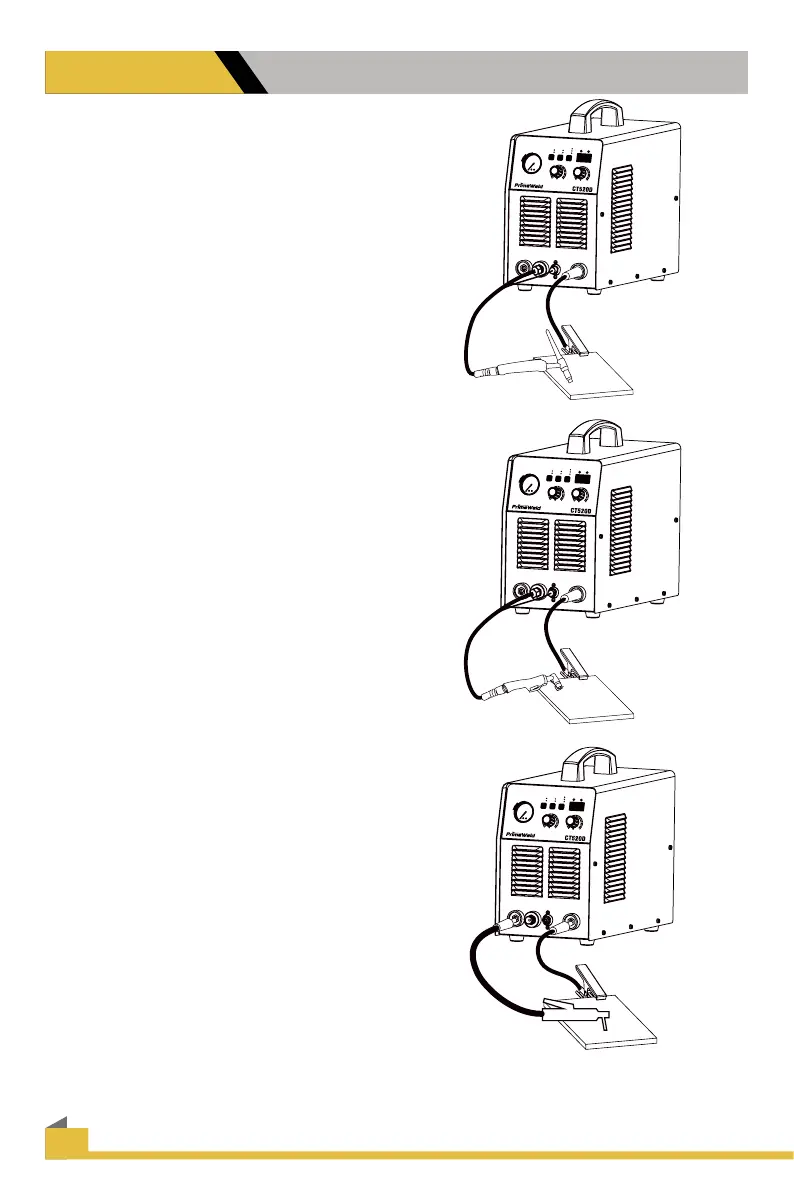

How to connect wire for TIG
welding.
1. Connect the TIG torch & switch to
panel of machine
2. connect the plug of earth clamp to
the machine socket.
How to connect wire for
cutting function
1. connect the plasma torch & switch
to socket of panel, ( also need to
connect the pilot arc wire if machine
with pilot arc function )
2. connect the earth clamp to socket
on panel of machine
How to connect wire for
stick welding
1. connect the plug on wire of stick
holder to panel of machine ( there is
symbol mark on machine )
2. connect the plug on wire of earth
clamp to panel of machine.
