19
LAYOUTOPERATION
TIP: For longer consumable life do not use the pilot arc unnecessarily. Rapid wear will occur
if the pilot arc stays engaged more than 3 seconds at a time.

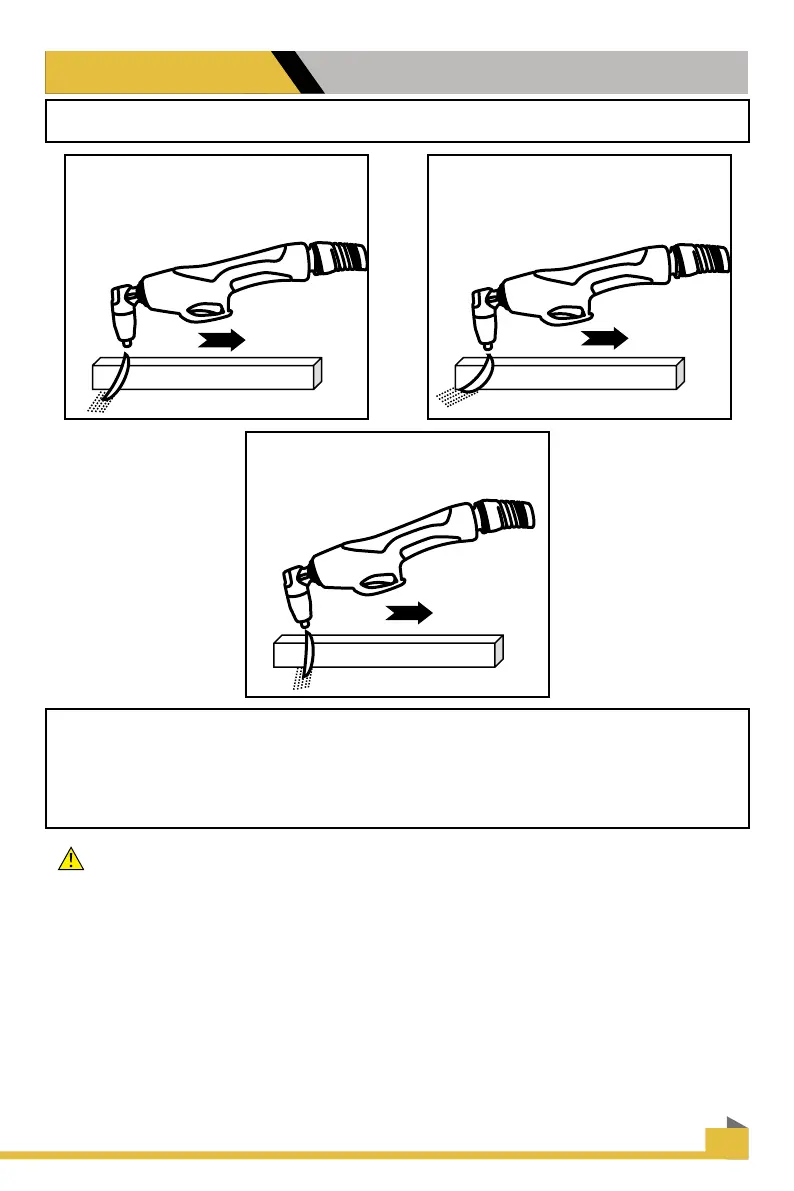

TRAVEL
FLAME AT NORMAL TRAVEL SPEED
TRAVEL
FLAME AT FAST TRAVEL SPEED
TRAVEL
FLAME AT SLOW TRAVEL SPEED
NOTE: When stepping down amps to cut thinner material, or using on 120V, you must
change to smaller orice nozzle for the best cutting results. Too large of an orice diameter
will result in arc instability and a rough cut. Lowering the air pressure below 50 psi to try to
get the torch to cut will only result in a lazy, wandering arc or an arc that sputters on and o
continuously.
TIP
IMPORTANT: Check consumables regularly for wear and change them out before they
are completely worn. Allowing the consumables to wear until they quit working may damage
related torch components, creating a more costly repair.
