STICK OPERATION
STARTING METHODS

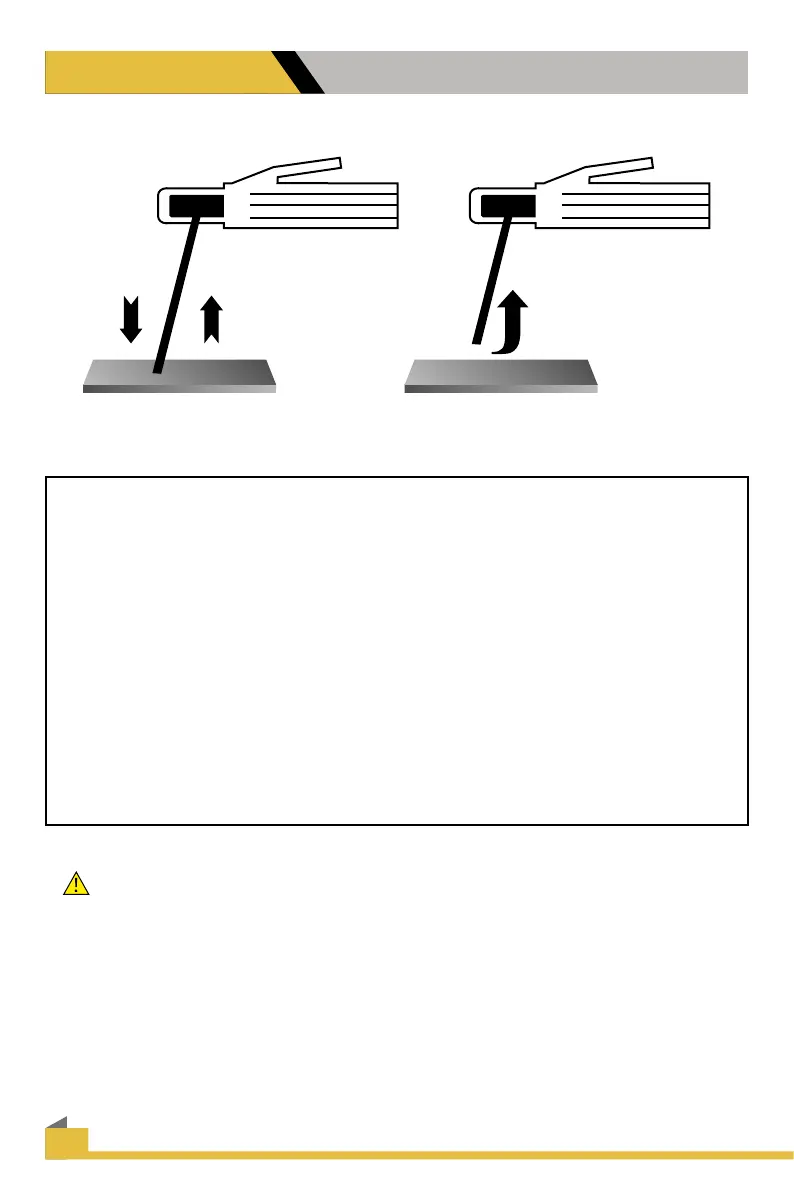

Tapping Method Scratch/Match Method
1. Turn on the power switch on the rear of the unit. Allow unit to cycle through its start up
program.
2. Select the Stick mode with the TIG/Cut/Stick selector switch.
3. Make sure electrode holder is connected to the positive connector and the work clamp
is connected to the negative connector. Remember, this is the opposite connection
required for TIG and plasma.
4. Select the desired amperage. Use the electrode diameter selection chart in this manual
to determine the approximate range of amps suitable for the rod size selected. Consult
the welding electrode manufacturer’s recommendation for proper amperage range. Each
manufacturer has specic recommendations for its electrodes. Ultimately Amperage is
determined by the electrode thickness and the thickness of the metal.
5. Strike the arc with either the tapping method or the match strike method. Beginners
usually nd that the match strike method yields best results. Professionals tend to gravitate
toward the tapping method because of its placement accuracy which helps prevent arc
striking outside of the weld zone.
IMPORTANT: Do not weld in the TIG mode with the stick electrode holder still attached.
