Left Display Right Display

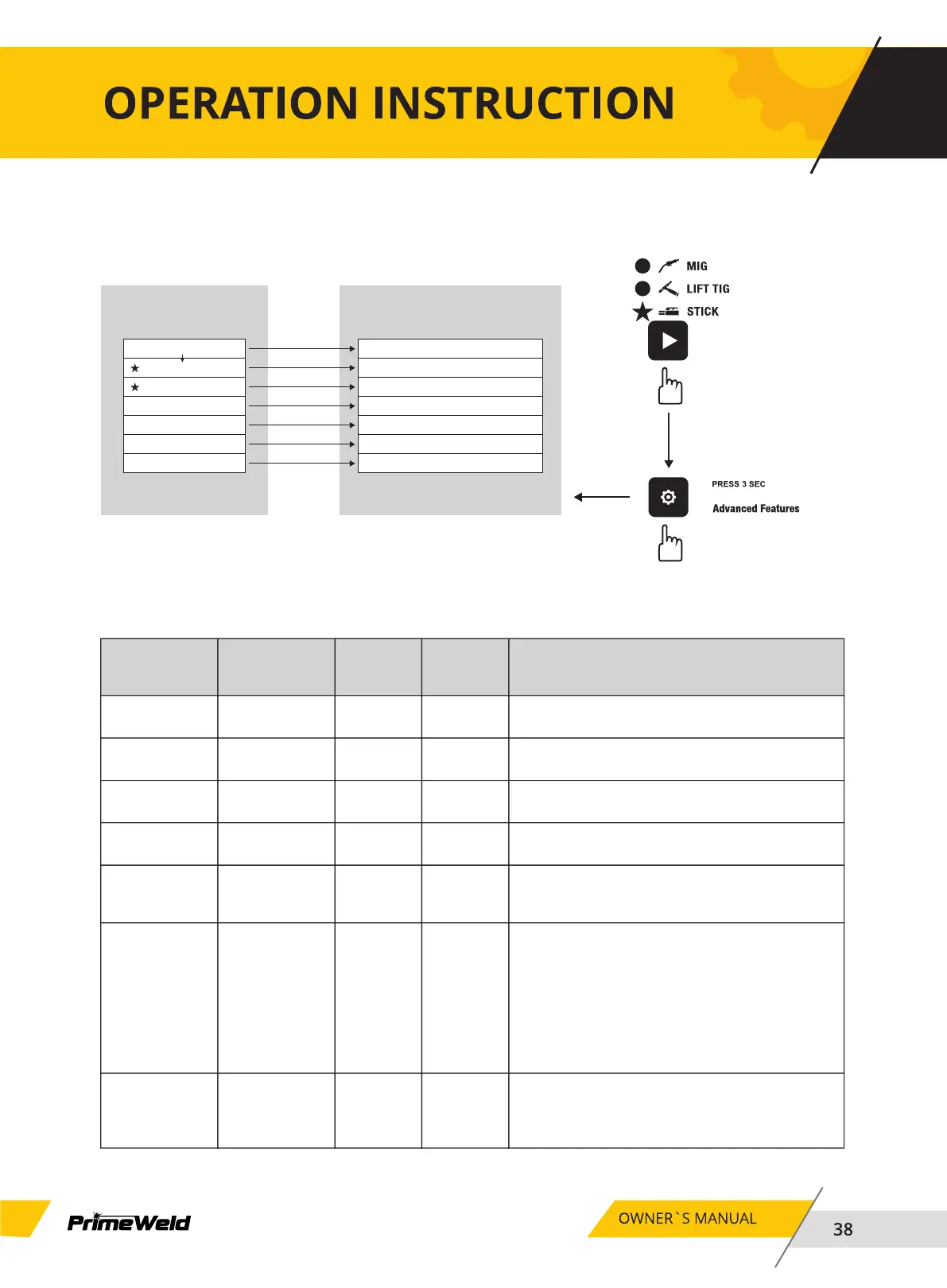

STICK Mode Advanced Features Menu map
HOT / STRT
HS / TIME
HS / AMPS
ARC- / FRCE
VRD
FACT / DFLT
HR
Press Advanced Button for 3s
to Exit to Welding Mode
Advanced Menu-STICK
Mode
Advanced Features Selection
ON OFF
0.0-2.0 S
0-200%
OFF-200%
ON OFF
NO YES
0.0-9999.9
Press Advanced Button for 3s
to Exit to Welding Mode
Advanced Menu-STICK
Options or Range
Right Knob Selection
NOTE: HS/TIME and HS/AMPS are only active
when HOT/START are “ON”.
Limits
Function
Left
Display
Right
Display
(Factory Default
Values)
Comments
Hot Start ON ON-OFFHOT/STRT
Hot Start Time 0.5S 0.0-2.0SHS/TIME
Hot Start Amps 140% 0-200%HS/AMPS
ARC Force 75% OFF-200%ARC-/FRCE
Voltage
Reduction
Device
ON ON-OFFVRD
Restore Factory
Defaults
NO NO-YESFACT/DFLT
Arc Hour
Accumulated
Runtime
0.0 0.0-9999.9HR
Hot Start is used to improve the start characteristics
for stick electrodes, e.g. low hydrogen electrodes.
Hot Start Time is the time that the Hot Start
Amps is applied.
Hot Start Amps sets the peak start current, e.g.
50A at 200% = 100A.
ARC force Amps sets the force current base the
welding current, e.g.50A at 200% = 100A
A VRD is designed to reduce electric shock
hazards present on the output of welding
power source when operating in STICK mode.
Long press advanced features selector for 3
seconds to enter into menu mode, press
advance features selector to choose Factory
default setting, rotate volts knob to choose yes
or no, and press MIG/LIFT TIG/STICKER selector
to confirm yes or no. When YES is selected all
the user adjustable values in this table (except
Arc Hour Accumulated Runtime) are reset to
the Factory Default Values.
Provides Arc On Hours that the power source
has welded. The number displayed is in hours
and read only. It will rollover to 0 once 10,000
hours have been reached.
