Printed in USA 05/19 © 2019 4 540-541revJ-EN
Extended Hold Bin
EHB-CE Series

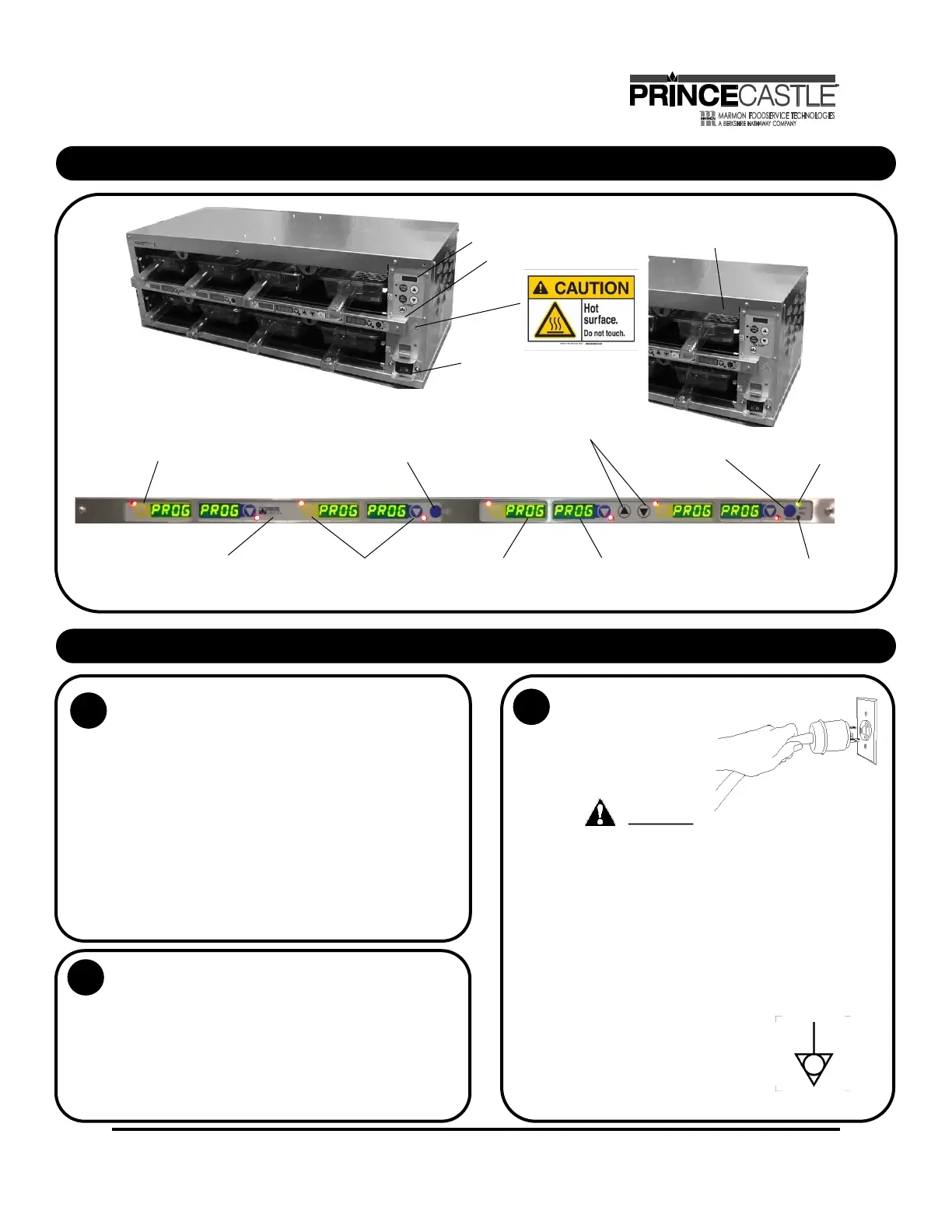

Product Identification
Installation
Remove the unit from the carton and inspect for signs of
damage. If there is damage to the unit:
• notify the carrier within 24 hours of delivery
• save carton and packaging materials for inspection pur-
poses
• contact your local dealer, or if purchased directly,
the Prince Castle Sales Department at 800-722-7853
or 1-630-462-8800 to arrange for a replacement unit.
NOTE: Plug the power cord into the proper electrical
receptacle. All electrical connections must be in accordance
with local electrical codes and any other applicable codes.
If the unit is to be networked with other Prince Castle units,
refer to the CastleNet® Communication Network section in
this manual for installation instructions.
1
Plug unit into a grounded
receptacle with a matching
plug configuration.
Place Extend Holding Bin on flat surface.
Clearances: 6” sides, 24 “ front and back.
Remove blue and/or white protective covering.
NOTE: When installing this unit, the ambient tem-
perature at the mounting site should not exceed 100°F
(38°C)
2
3
BKFT LED
(Breakfast)
REG LED
(Regular Menu)
ENTER Button
LOWER PAN Display
(1 for each slot wide)
UP and DOWN ARROW
UPPER PAN Display
(1 for each slot wide)
TRANSFER Button
(Not used)
PRINCE CASTLE
LOGO Button
PAN ARROW Buttons
(2 for each slot wide)
LED TIMERS ( tri-color)
(1 for each pan arrow button)
BUTTON BAR
Button Bar
Power
ON/OFF
Switch
Temperature
Control Panel
PAN LIDS, ONLY used with broiled products.
(Fried products DO NOT require lids)
All electrical connections must be in accordance with
local electrical codes and any other applicable codes.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
To prevent an electric shock hazard this device must
be bonded to equipment in close proximity with an
equipotential bonding conductor. This device is
equipped with a grounding lug (identified with the
symbol at right) for this purpose.
WARNING:
To Next Page
