2
Fig. 1-1

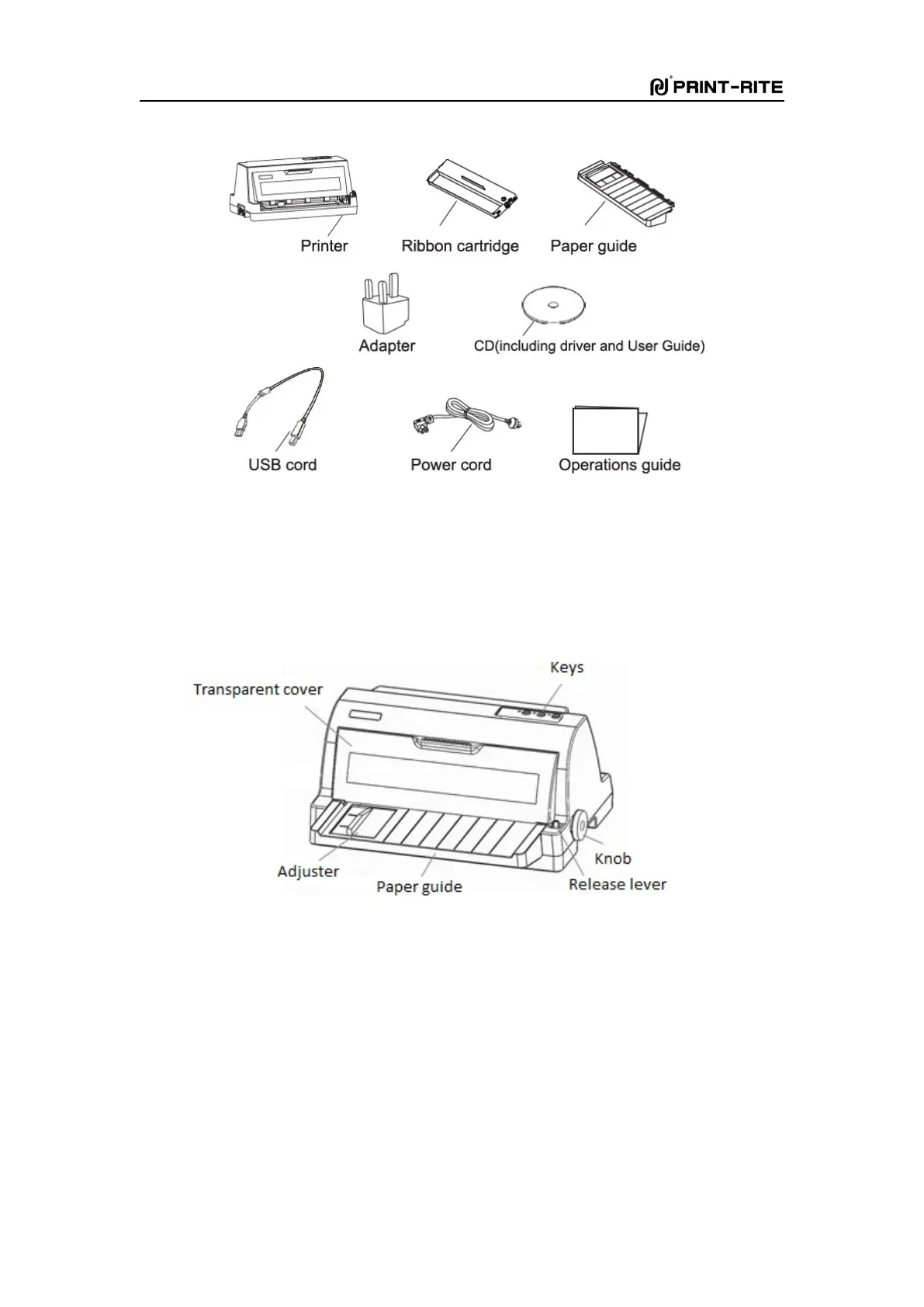

1.3 Knowing Well about the Printer Structure
Fig. 1-2
Parts name
:
Transparent cover: Protect inside parts such as printhead, keep the dust away, lower the noisy.
Keys: Operations on the printer.
Paper guide: For paper feeding and rejecting.
Knob: Paper feeding and rejecting munually.
Release lever: Move forward when using chain paper, and backward when using single sheet.
Adjuster: Adjust the width of the paper when feeding.
