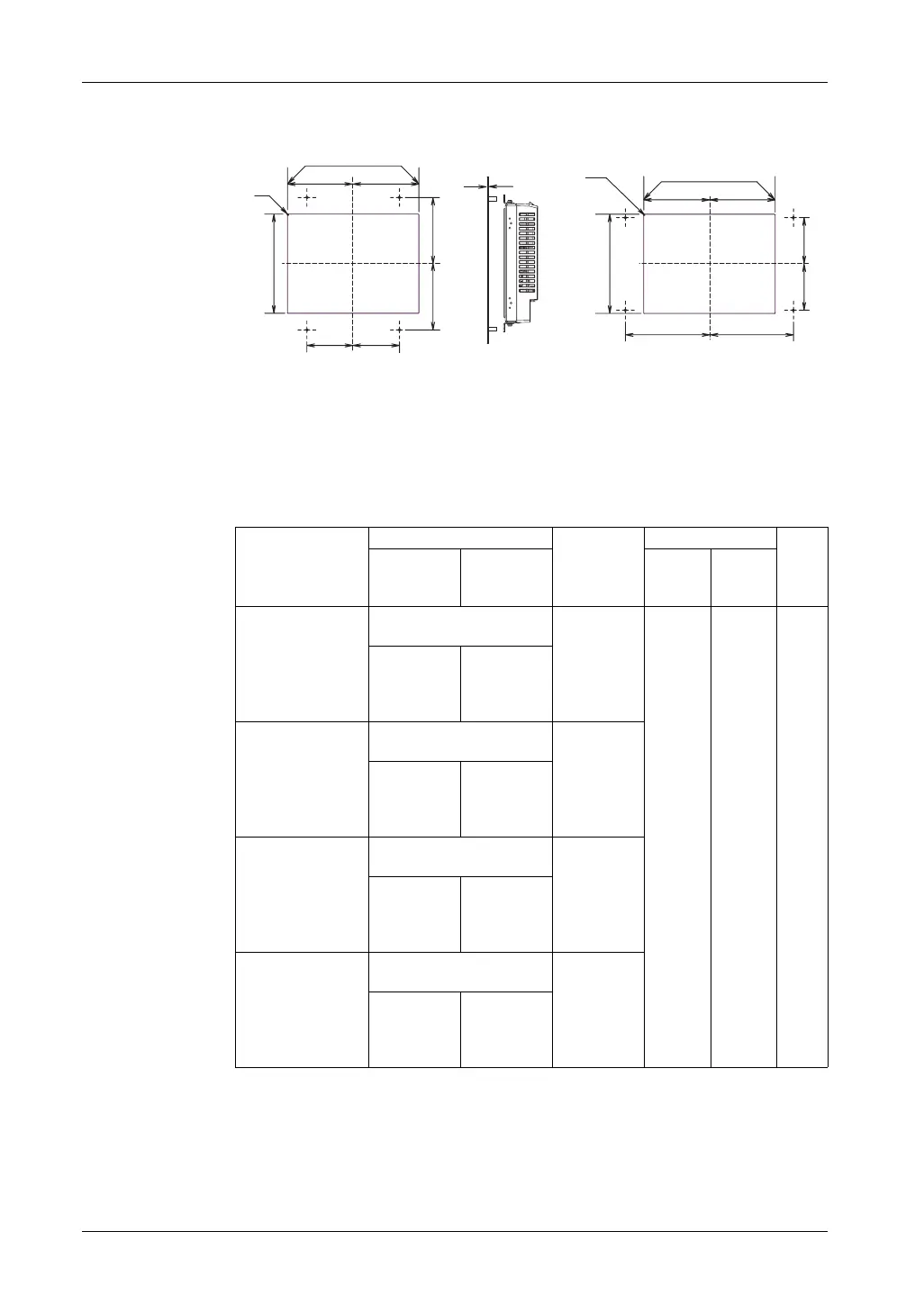

z Flat mount
a) Installation positions of stud bolts or positions of boss molds when attaching
installation brackets at the top and bottom surfaces of the GP unit
b) Installation positions of stud bolts or positions of boss molds when attaching
installation brackets on either side of the GP unit
d) 4-M4 x 10L stud bolts (no foreign material present on the base due to sparking or
similar phenomena) or boss molds
e) Center of the display area
Note: If you are designing the panel with a material other than sheet metal, ensure
that the material has sufficient strength.
A
B
C
R
A1 A2
Panel
Type
Resin
Boss
Type
PFXGP4301TADR
143mm (+0.5, -0mm)
(5.63in.[+0.02, -0in.])
109mm
(+0.5, -0mm)
(4.29in.
[+0.02, -0in.])
1.6 mm
(0.06in.)
SPCC
(JIS G
3141) or
SECC
(JIS G
3313)
1.5 mm
(0.06in.)
SUS304
(JIS G
4305)
2 mm
(0.08in.)
maximum
1 mm
(0.04in.)
maximum
70.5mm
(+0.25, -0mm)
(2.78in.
[+0.01, -0in.])
72.5mm
(+0.25, -0mm)
(2.85in.
[+0.01, -0in.])
PFXGP4401TADR
174.5mm (+0.5, -0mm)
(6.87in.[+0.02, -0in.])
134.2mm
(+0.5, -0mm)
(5.28in.
[+0.02, -0in.])
86.3mm
(+0.25, -0mm)
(3.4in.
[+0.01, -0in.])
88.2mm
(+0.25, -0mm)
(3.47in.
[+0.01, -0in.])
PFXGP4501TADR
241mm (+0.5, -0mm)
(9.49in.[+0.02, -0in.])
188mm
(+0.5, -0mm)
(7.4in.
[+0.02, -0in.])
119.2mm
(+0.25, -0mm)
(4.69in.
[+0.01, -0in.])
121.8mm
(+0.25, -0mm)
(4.8in.
[+0.01, -0in.])
PFXGP4601TADR
289.4mm (+0.5, -0mm)
(11.39in.[+0.02, -0in.])
214.4mm
(+0.5, -0mm)
(8.44in.
[+0.02, -0in.])
142.4mm
(+0.25, -0mm)
(5.61in.
[+0.01, -0in.])
147mm
(+0.25, -0mm)
(5.79in.
[+0.01, -0in.])
%
<
<
D
H
D
G
G
D
$
$ $
&
; ;
D
5
%
<
<
H
E
E
E
E
; ;
5
$
$ $
Rear panel (resin plate) surfaceRear panel (resin plate) surface
