2.2 Transfer cable
To transfer screen data to GP-4401T, use a USB transfer cable or Ethernet.
The USB cables that can be used for GP-4401T are as follows:

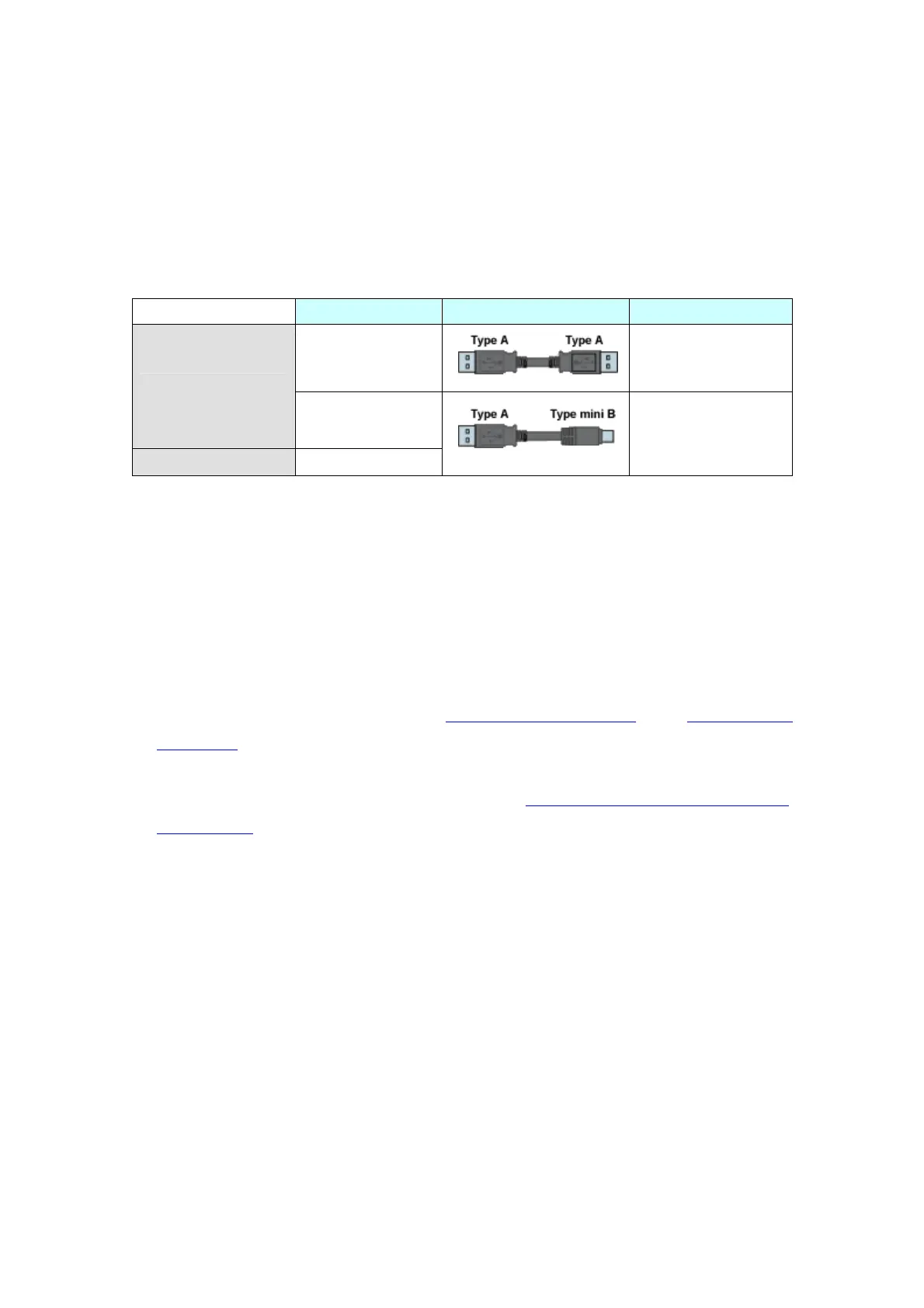

Model Connector Type Connector on GP
CA3-USBCB-01
USB (Type A)
Options
ZC9USCBMB1
Commercial Item -
USB (Type mini B)
The same USB transfer cable (CA3-USBCB-01) as the one for GP/ST-3400 series can
be used.
2.3 Interface
2.3.1 Serial Interface
The pin assignment and the shape of plug/socket connector of GP/ST-3400 series
are different from those of GP-4401T.
To know the details about them, see [4.2 Shapes of COM ports
] and [4.3 Signals of
COM ports].
If you use the existing connection cables, see [4.5 Cable Diagram at the time of
replacement].
2.3.2 Auxiliary I/O Interface (AUX)
GP-4401T is not equipped with Auxiliary I/O Feature. External Reset Input and 3
Outputs (RUN Output, System Alarm Output, and External Buzzer Output) that can
be used for GP-3400S cannot be used.
2.3.3 Sound Output Interface (for GP-3400S only)
GP-4401T is not equipped with the sound output function. The sound output
function for GP-3400S cannot be used.
10/40
