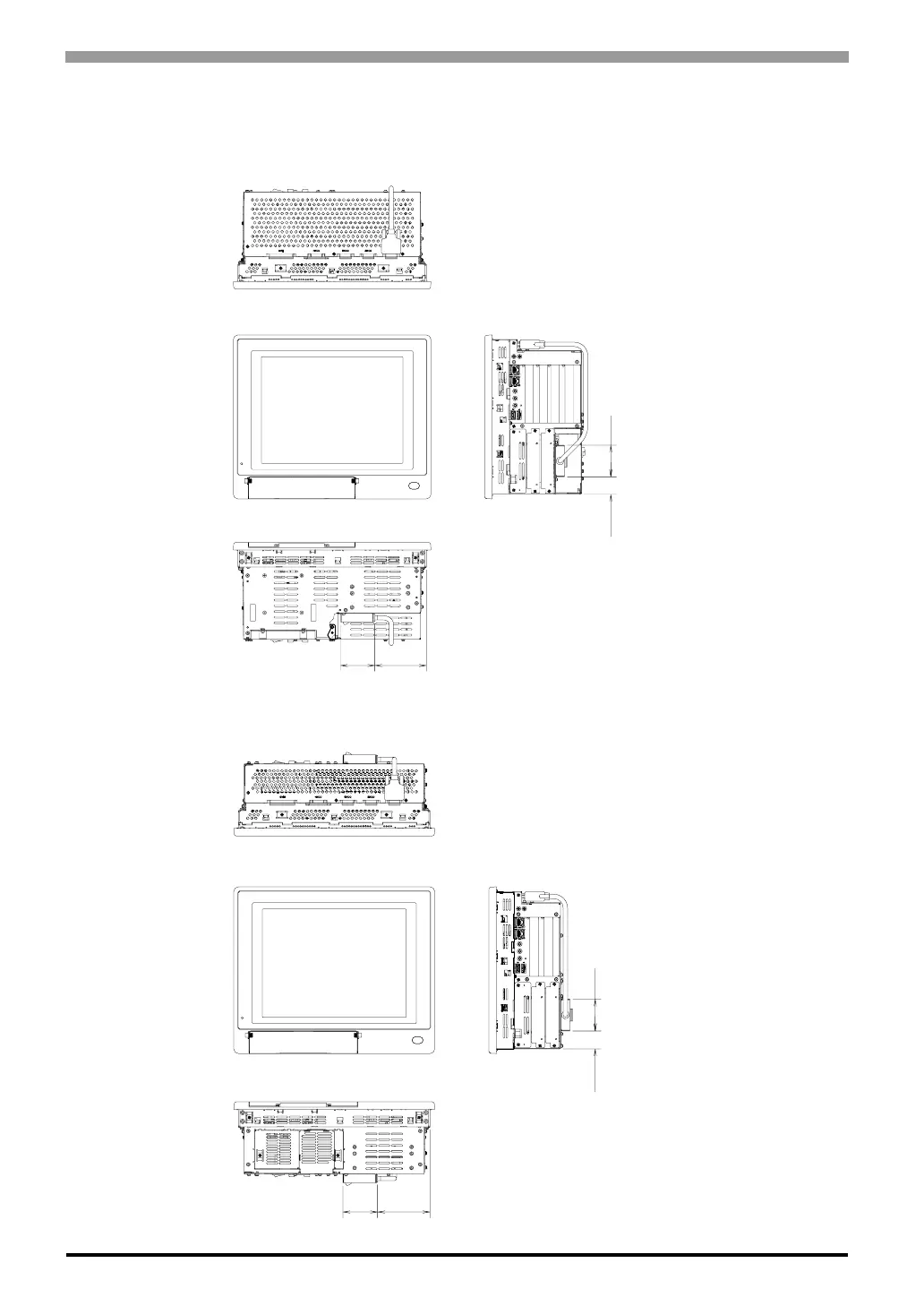

2.4.5 Dimensions attached RS-232C/RS-485 exchangeable unit
 PL-6930
 PL-6931
90
[3.54]
31
[1.22]
55
[2.17]
60
[2.36]
Unit: mm [in.]
(Except for
protrudent objects
and cable parts)
Top
Side
Bottom
Front
60
[2.36]
90
[3.54]
31
[1.22]
55
[2.17]
Top
Side
Front
Bottom
