• Be sure that the ambient operation temperature and the ambient humidity are within
their designated ranges. When installing the PL on the panel of a cabinet or
enclosure, “Ambient operation temperature” indicates both the panel face and
cabinet or enclosure’s internal temperature.
• Be sure that heat from surrounding equipment does not cause the PL to exceed its
standard operating temperature.
• When installing the PL in a slanted panel, the panel face should not incline more
than 30°.
• The PL Series unit does not support longitudinal mounting.
• Any electromagnetic switch or Non Fuse breaker that generates arc should be
placed away from the PL.

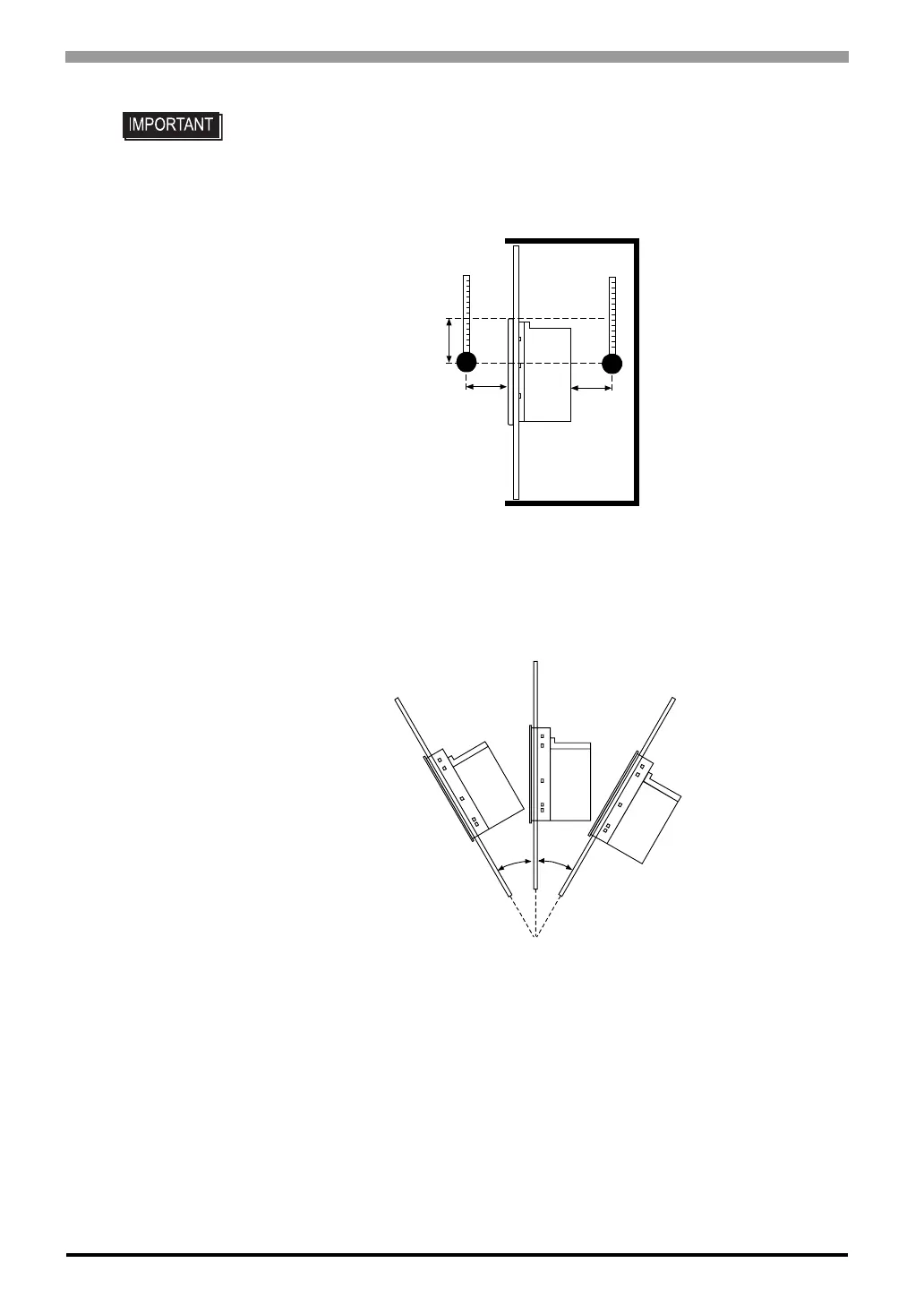

Panel
face
Inside of the
enclosure
30 [1.18]
30 [1.18]
100 [3.94]
Unit: mm [in.]
30° or less
