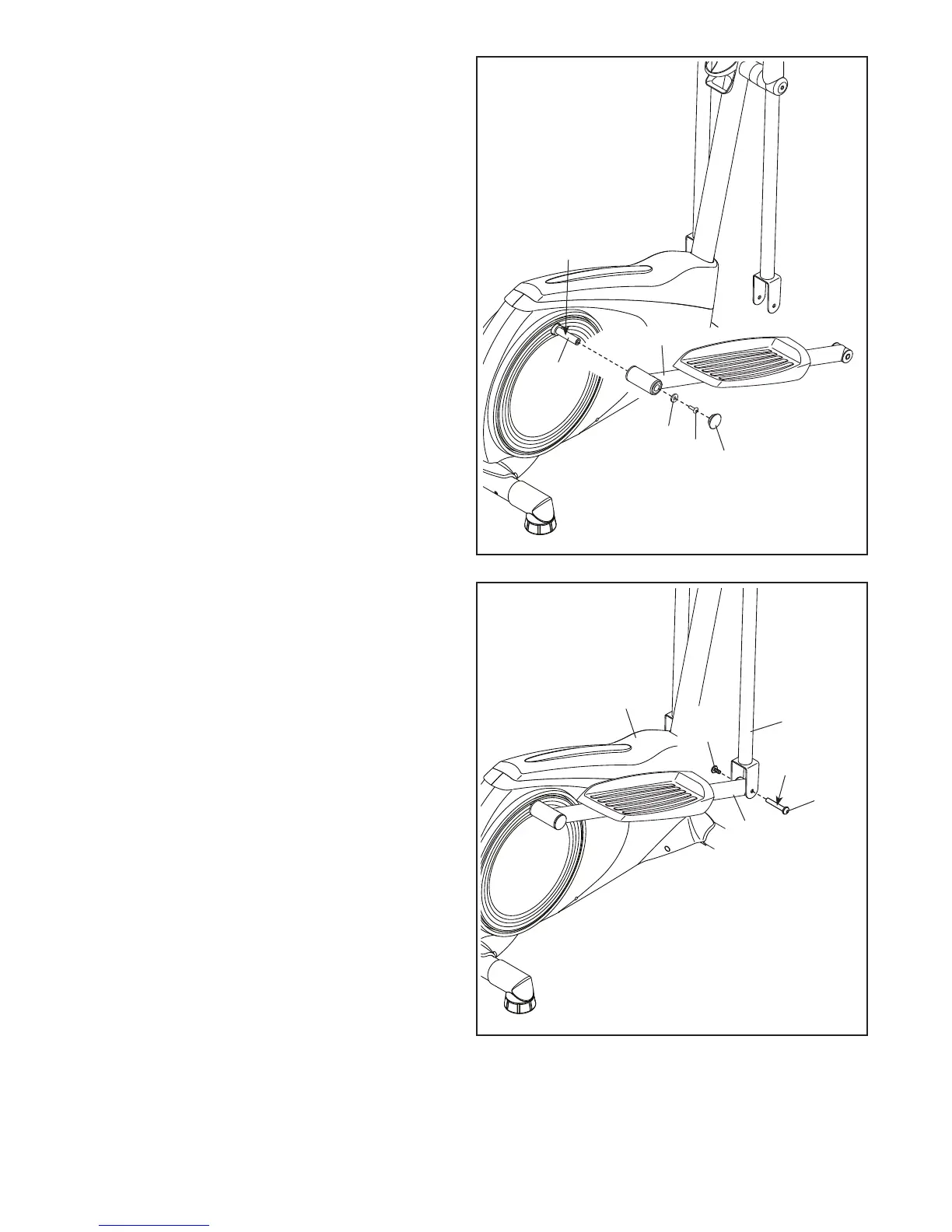

16. Apply a small amount of grease to the axle on
the Right Crank Arm (80).
Slide the Right Pedal Arm (12) onto the axle on
the Right Crank Arm (80).
Next, slide an M10 x 28mm Washer (83) onto an
M10 x 20mm Screw (40), and tighten the Screw
into the axle.
Then, press a Pedal Arm Cap (74) into the Right
Pedal Arm (12).
Repeat this step on the left side of the
elliptical.
74
40
83
12
80
Grease
17
17. See assembly steps 4 and 5. Tighten the
M10 x 20mm Screws (40) and the M10 x 77mm
Bolt (7). Then, press the Top Shield (41) into
place.
Next, apply a small amount of grease to an M6
Bolt Set (25).
Hold the end of the Right Pedal Arm (12) inside
the bracket on the right Upper Body Leg (5).
Attach the right Upper Body Leg (5) to the Right
Pedal Arm (12) with the M6 Bolt Set (25).
Repeat this step on the left side of the
elliptical.
5
25
12
41
25
Grease
