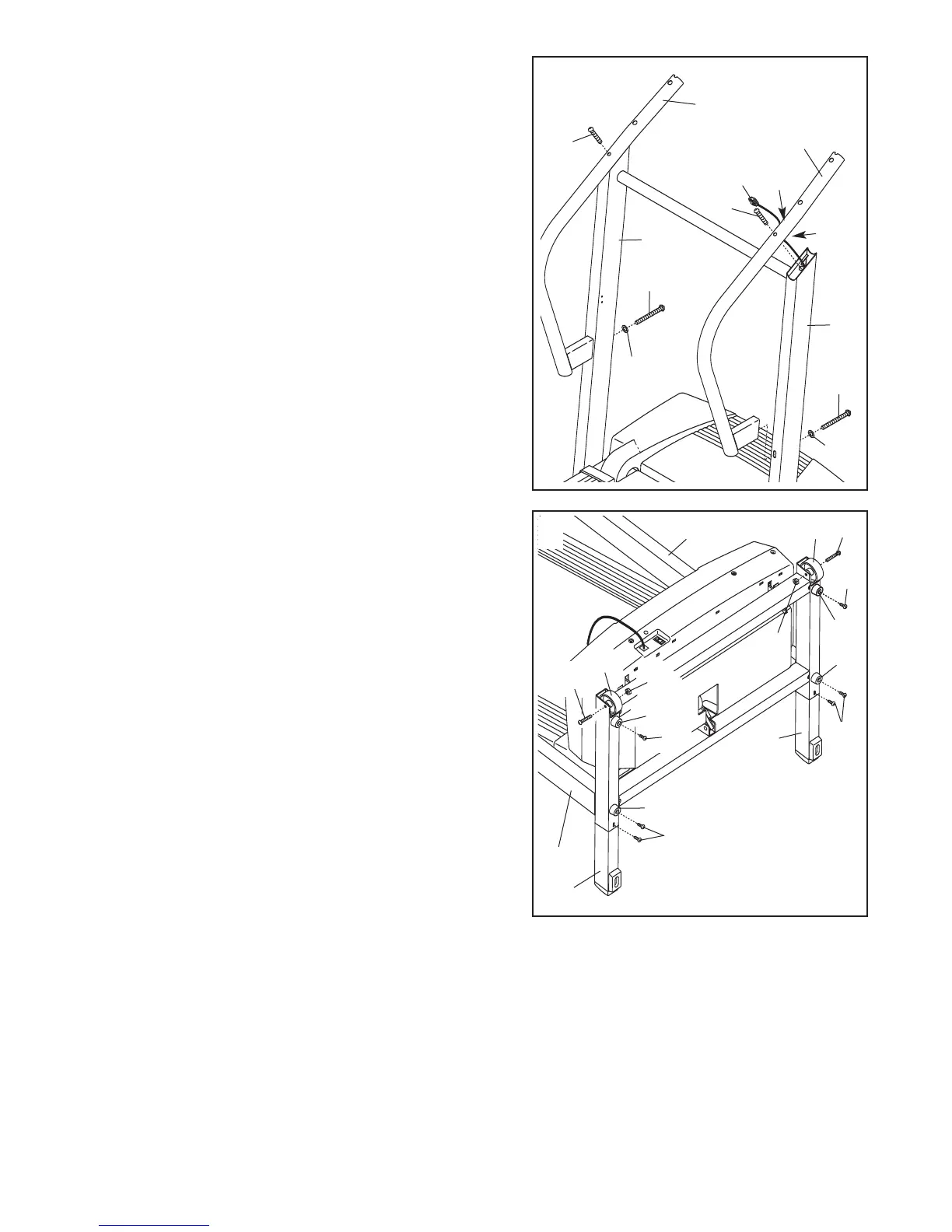

2. Identify the Right Handrail (72), which has a large hole in
t
he left side. Feed the Upright Wire (42) into the hole in
the bottom of the Right Handrail and out of the large hole
i
n the side. Note: It may be helpful to use needlenose pli-
ers to pull the Wire Harness out of the hole.
Attach the upper end of the Right Handrail (72) to the
r
ight Upright (69) with a 3” Bolt (37).
D
o not tighten the
B
olt yet.
A
ttach the lower end of the Right Handrail with
a 4” Bolt (98) and a 5/16” Star Washer (97). Do not
tighten the Bolt yet.
Attach the upper end of the Left Handrail (71) to the left
Upright (69) with a 3” Bolt (37). Do not tighten the Bolt
yet. Attach the lower end of the Left Handrail with a 4”
Bolt (98) and a 5/16” Star Washer (97). Do not tighten
the Bolt yet.
Note: There is not a wire harness on the
left side.
42
Hole
72
97
97
98
37
3
7
71
69
69
98
Hole
2
3. With the help of another person, carefully lower the
Uprights (69) as shown. Note: It may be helpful to place
one foot on one of the Extension Legs (63) as you tip the
Uprights. Make sure that the Extension Legs remain
in the Uprights.
Attach each Extension Leg (63) with two 1” Tek Screws
(39) and a Base Pad (57) as shown. Attach the lower
Tek Screw, without the Base Pad, first.
Attach two Base Pads (57) to the base of the Uprights
(69) with two 1” Tek Screws (39).
Attach the two Wheels (66) with two 2” Bolts (64) and
two Wheel Nuts (32) as shown. Do not overtighten the
Bolts; the Wheels should be able to spin freely.
With the help of another person, carefully raise the
Uprights (69) to the vertical position.
See step 2. Tighten the two 3” Bolts (37) and 4” Bolts
(98).
39
69
63
39
57
63
57
57
39
64
66
32
69
64
66
32
57
39
3
