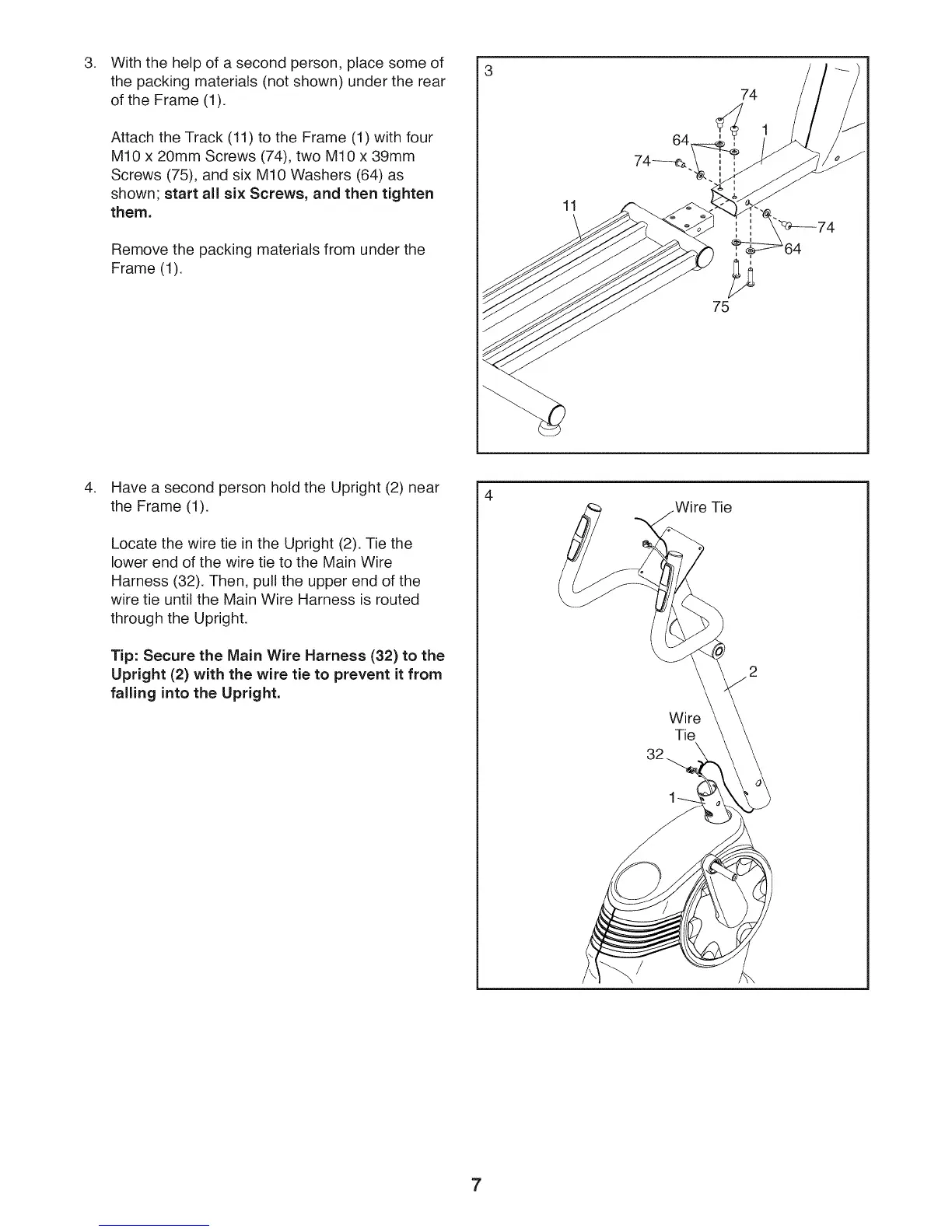

With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1).
Attach the Track (11) to the Frame (1) with four
M10 x 20mm Screws (74), two M10 x 39mm
Screws (75), and six M10 Washers (64) as
shown; start all six Screws, and then tighten
them.
Remove the packing materials from under the
Frame (1).
11
75
.
Have a second person hold the Upright (2) near
the Frame (1).
Locate the wire tie in the Upright (2). Tie the
lower end of the wire tie to the Main Wire
Harness (32). Then, pull the upper end of the
wire tie until the Main Wire Harness is routed
through the Upright.
Tip: Secure the Main Wire Harness (32) to the
Upright (2) with the wire tie to prevent it from
falling into the Upright.
Wire
Tie
32
Tie
7
