12

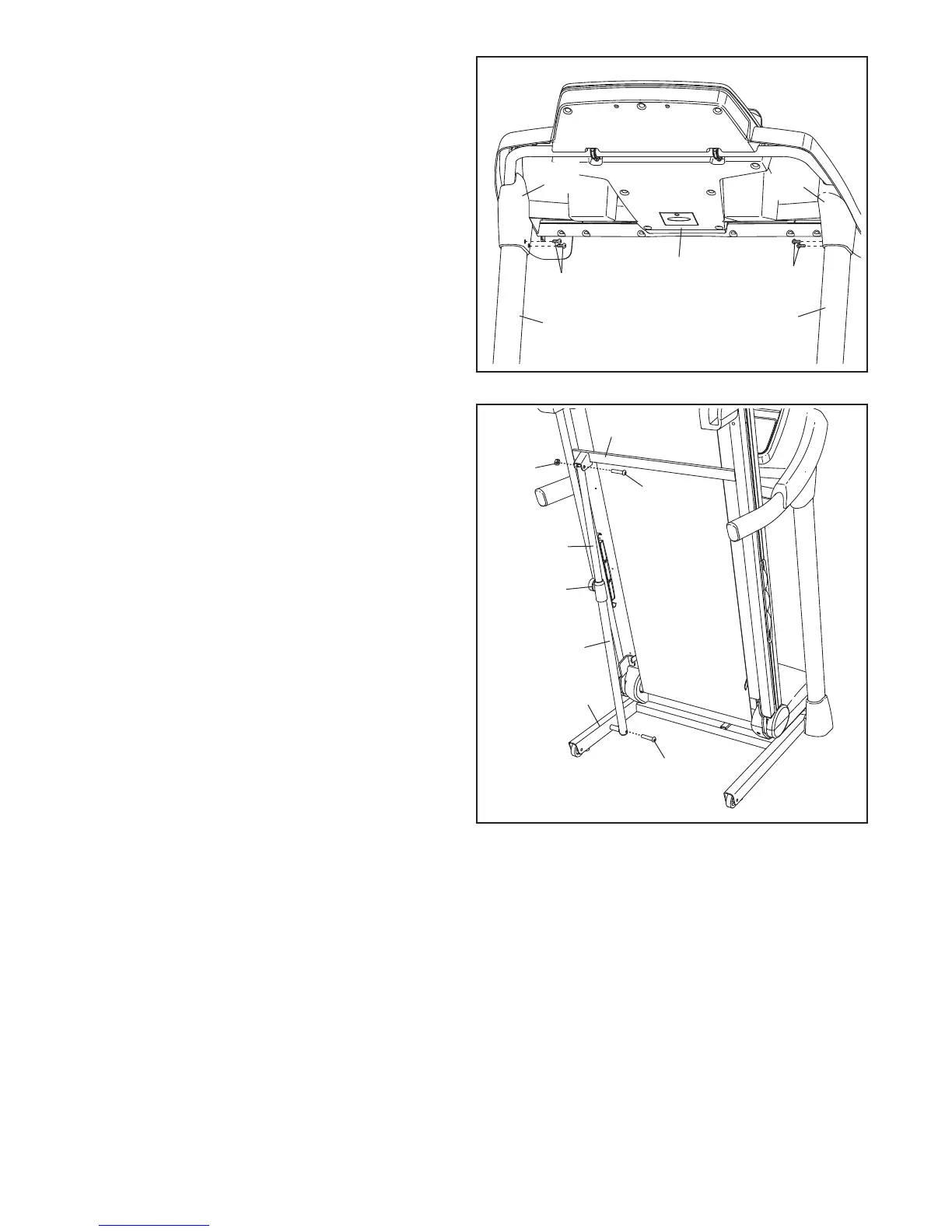

13. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
x
3/4" Screws (1).
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
See steps 4 and 6. Tighten the four 3/8" x 4"
Patch Bolts (7) and the two 3/8" x 1 1/2" Patch
Bolts (14).
1
3
85
84
1
1
Console
Assembly
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 23 and 24).
14. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10).
Attach the lower end of the Storage Latch (51) to
the Base (95) with a 3/8" x 1 3/4" Patch Bolt (6).
Note: It may be necessary to move the Frame
(55) back and forth to align the Storage Latch
with the Base.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
51
95
10
Large
Barrel
6
55
14
8
8
6
80
Latch
Knob
To Next Page
