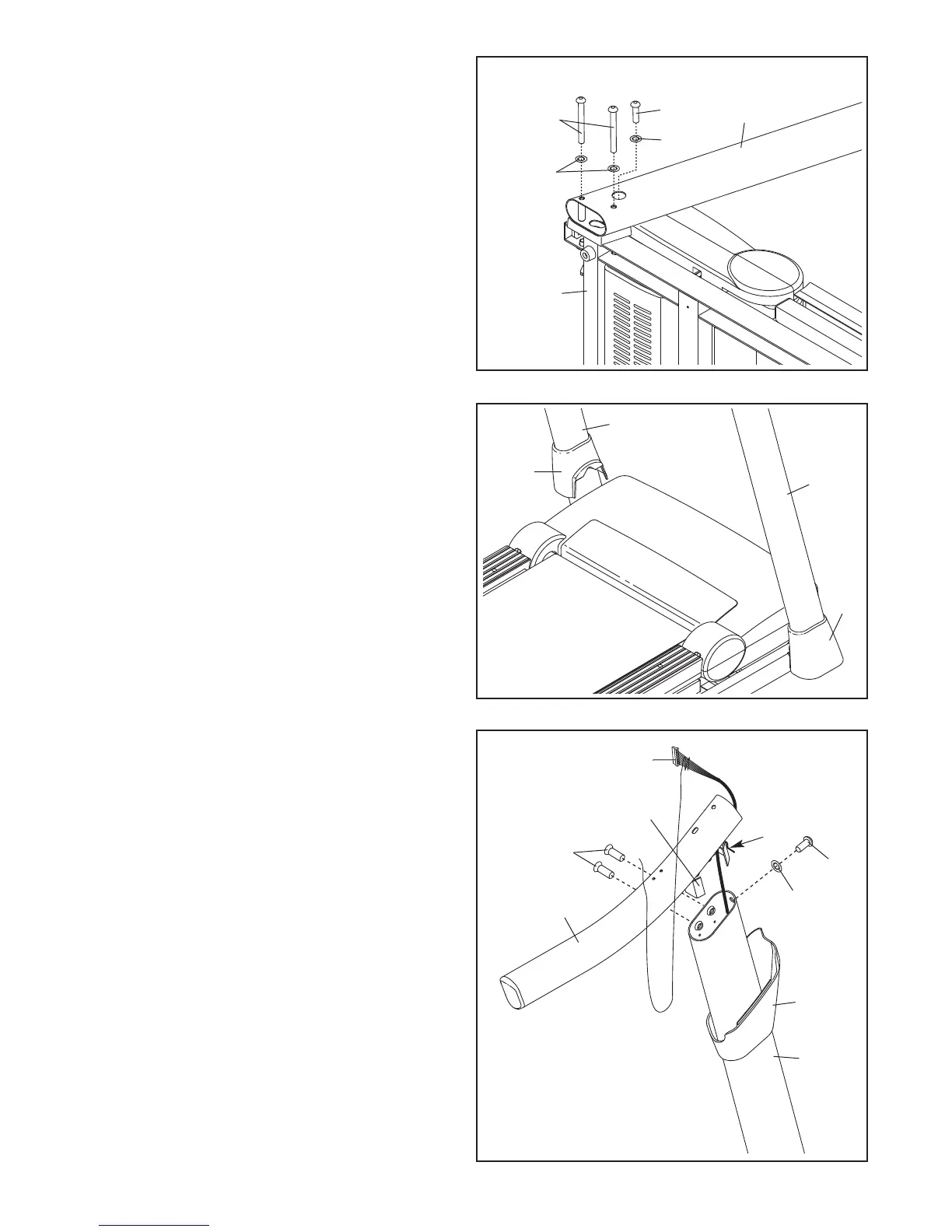

6. Hold the Left Upright (84) against the Base (95).
Insert two 3/8" x 4" Bolts (7) with two 3/8" Star
Washers (11) and a 3/8" x 1 1/2" Bolt (14) with
a 3/8" Star Washer (11) into the Left Upright.
Partially tighten the 3/8" x 4" Bolts (7) until the
heads of the Bolts touch the Left Upright (84);
do not fully tighten the Bolts yet. Partially
t
ighten the 3/8" x 1 1/2" Bolt (14).
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
6
9
84
7
95
11
11
1
4
7. Identify the Left Base Cover (88) and the Right
Base Cover (91). Slide the Left Base Cover onto
the Left Upright (84). Slide the Right Base Cover
onto the Right Upright (85).
91
85
84
88
7
8. Slide the Right Upright Cover (86) onto the
Right Upright (85). Remove the tie from the
bracket on the Right Handrail (83). If necessary,
press the 5/16" Cage Nuts (38) back into place.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the bracket on the bottom of the Right
Handrail. Pull the Upright Wire out of the end of
the Right Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with two 5/16" x 1" Flat Head Patch
Bolts (3) and a 5/16" x 1" Patch Bolt (4) with a
5/16" Star Washer (13); do not tighten the
Patch Bolts yet.
Attach the Left Upright Cover (80) and the
Left Handrail (82) in the same way. Note:
There is no wire on the left side.
38
83
Bracket
3
4
13
86
85
87
8
To Next Page
