11
12. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires. Insert the excess Upright Wire (87) into
the Right Handrail.
Attach the console assembly to the Crossbar
(107) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten each of them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
12
83
105
53
87
1
1
1
Console Assembly
82
107

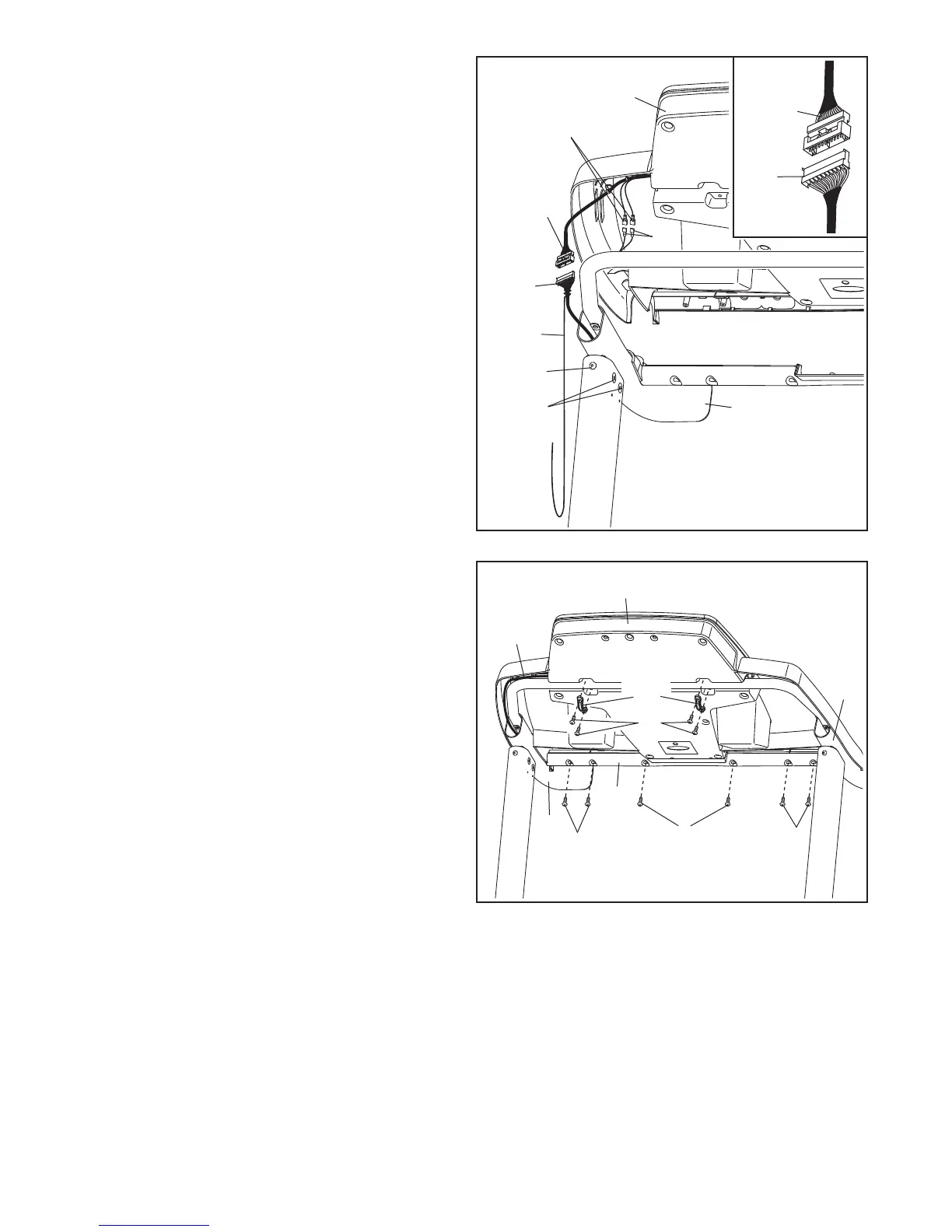

11. Firmly tighten the four 5/16" x 1" Flat Head Bolts
(3) and the two 5/16" x 1" Bolts (4) (only one
side is shown).
W
ith the help of a second person, hold the con-
sole assembly near the Right Handrail (83) and
the Left Handrail (not shown).
C
onnect the Upright Wire (87) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Remove the wire tie from the
Upright Wire.
Connect the ground wires from the console as-
sembly to the Console Ground Wires (52).
Console
A
ssembly
11
Console
W
ire
Wire
Tie
G
round Wires
83
87
4
3
52
87
C
onsole
Wire
To Next Page
