Pro-Form 505 CST User Manual

7

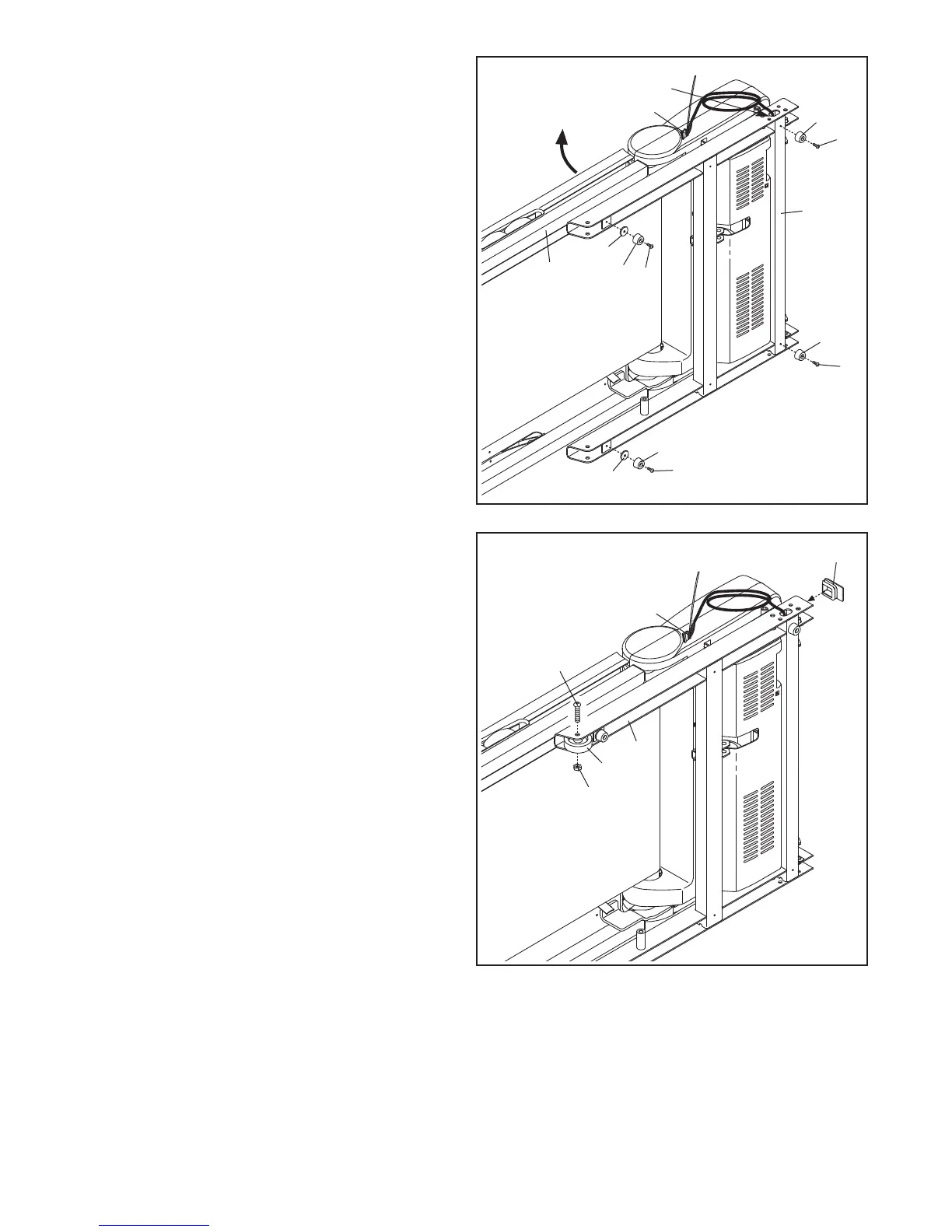

2. Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
95
8
10
2
96
89
1
. Make sure that the power cord is unplugged.
W
ith the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
1
95
5
55
90
90
5
5
5
90
94
90
8
7
Hole
94
87

Pro-Form 505 CST Specifications

General

Speed Range	0-10 MPH
Incline Range	0-10%
Running Surface	20" x 55"
Motor	2.5 CHP Mach Z™ Motor
Programs	18
Folding	SpaceSaver Design
Heart Rate Monitoring	EKG Grip Pulse
iFit Compatibility	Yes
Weight Capacity	325 Lb. Weight Capacity
Dimensions	73.5" L x 36.5" W x 64" H
