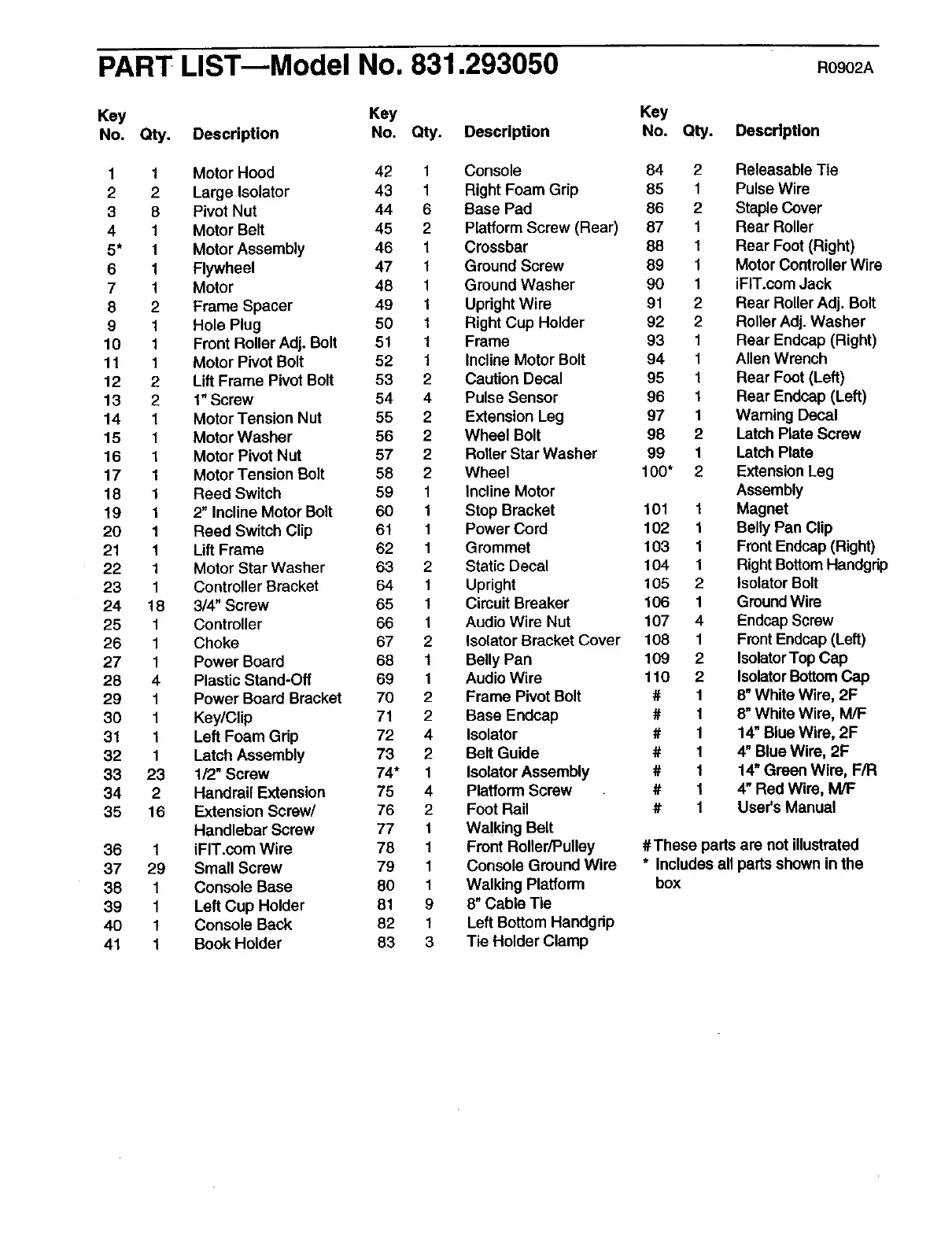

PART LISTmModel NO.831.293050 Rogo2A
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Motor Hood 42 1 Console
2 2 Large Isolator 43 1 Right Foam Grip
3 8 Pivot Nut 44 6 Base Pad
4 1 Motor Belt 45 2 Platform Screw (Rear)
5* 1 Motor Assembly 46 1 Crossbar
6 1 Flywheel 47 1 Ground Screw
7 1 Motor 48 1 Ground Washer
8 2 Frame Spacer 49 1 Upright Wire
9 1 Hole Plug 50 1 Right Cup Holder
10 1 Front Roller Adj. Bolt 51 1 Frame
11 1 Motor Pivot Bolt 52 1 Incline Motor Bolt
12 2 Lift Frame Pivot Bolt 53 2 Caution Decal
13 2 1" Screw 54 4 Pulse Sensor
14 1 Motor Tension Nut 55 2 Extension Leg
15 1 Motor Washer 56 2 Wheel Bolt
16 1 Motor Pivot Nut 57 2 Roller Star Washer
17 1 Motor Tension Bolt 58 2 Wheel
18 1 Reed Switch 59 1 Incline Motor
19 1 2" Incline Motor Bolt 60 1 Stop Bracket
20 1 Reed Switch Clip 61 1 Power Cord
21 1 Lift Frame 62 1 Grommet
22 1 Motor Star Washer 63 2 Static Decal
23 1 Controller Bracket 64 1 Upright
24 18 3/4" Screw 65 1 Circuit Breaker
25 1 Controller 66 1 Audio Wire Nut
26 1 Choke 67 2 Isolator Bracket Cover
27 1 Power Board 68 1 Belly Pan
28 4 Plastic Stand-Oft 69 1 Audio Wire
29 1 Power Board Bracket 70 2 Frame Pivot Bolt
30 1 Key/Clip 71 2 Base Endcap
31 1 Left Foam Grip 72 4 Isolator
32 1 Latch Assembly 73 2 Belt Guide
33 23 1/2" Screw 74* 1 Isolator Assembly
34 2 Handrail Extension 75 4 Platform Screw
35 16 Extension Screw/ 76 2 Foot Rail
Handlebar Screw 77 t Walking Belt
36 1 iFIT.com Wire 78 1 Front Roller/Pulley
37 29 Small Screw 79 1 Console Ground Wire
38 1 Console Base 80 1 Walking Platform
39 1 Left Cup Holder 81 9 8" Cable Tie
40 1 Console Back 82 1 Left Bottom Handgrip
41 1 Book Holder 83 3 Tie Holder Clamp
84 2 Releasable Tie
85 1 Pulse Wire
86 2 Staple Cover
87 1 Rear Roller
88 1 Rear Foot (Right)
89 1 Motor Controller Wire
90 1 iFIT.com Jack
91 2 Rear Roller Adj. Bolt
92 2 Roller Adj. Washer
93 1 Rear Endcap (Right)
94 1 Allen Wrench
95 1 Rear Foot (Left)
96 1 Rear Endcap (Left)
97 1 Warning Decal
98 2 Latch Plate Screw
99 1 Latch Plate
100" 2 Extension Leg
Assembly
101 1 Magnet
102 1 Belly Pan Clip
103 1 Front Endcap (Right)
104 1 Right Bottom Handgdp
105 2 isolator Bolt
106 1 GroundWire
107 4 Endcap Screw
108 1 Front Endcap (Left)
109 2 IsolatorTop Cap
110 2 IsolatorBottomCap
# 1 8" White Wire, 2F
# 1 8" White Wire, M/F
# 1 14" Blue Wire, 2F
# 1 4" Blue Wire, 2F
# 1 14" Green Wire, F/R
# 1 4" Red Wire, M/F
# 1 User's Manual
#These parts are not illustrated
* Includes all parts shown in the
box
