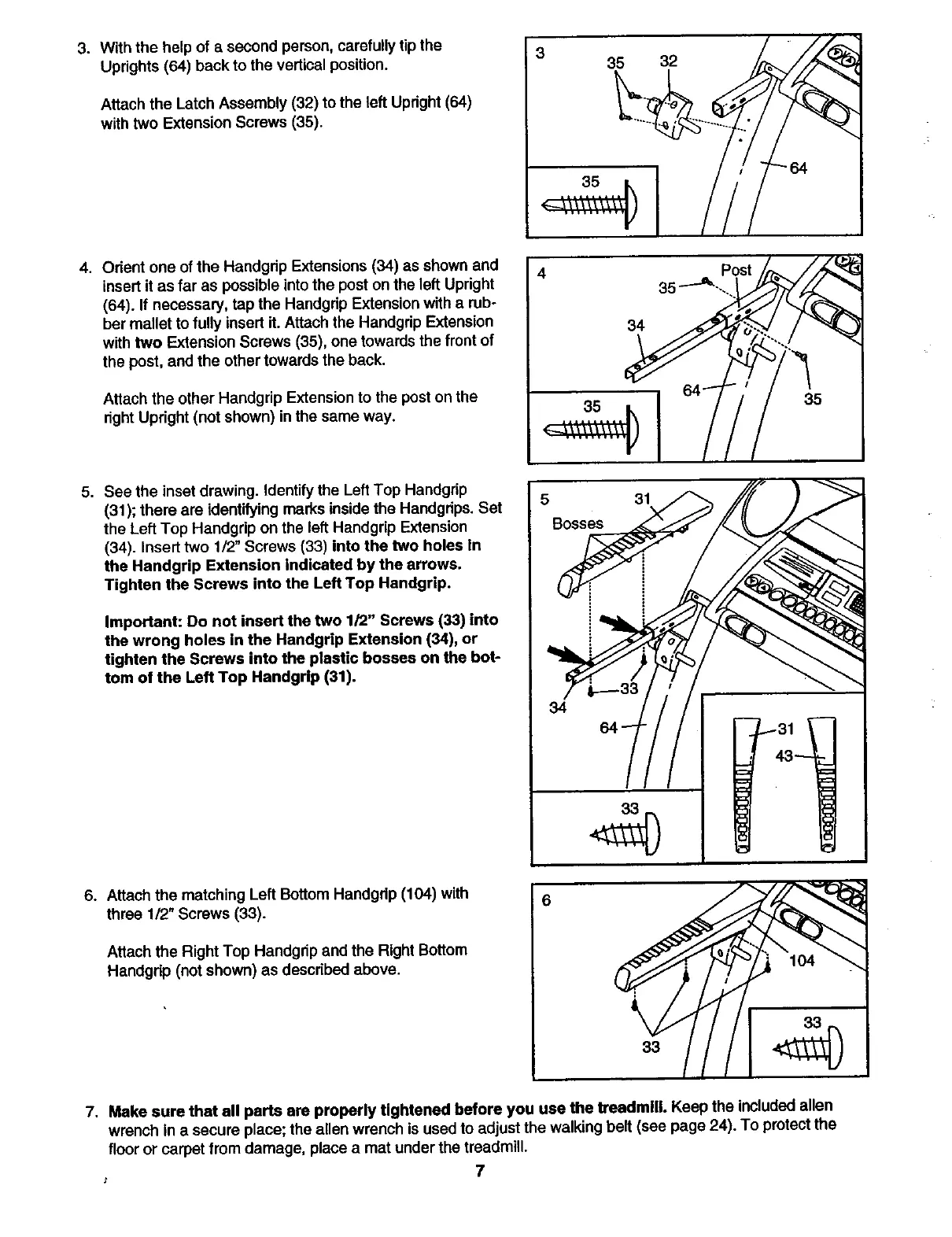

3. With the help of a second person, carefully tip the
Uprights (64) back to the vertical position.
Attach the Latch Assembly (32) to the left Updght (64)
with two Extension Screws (35).
4. Orient one of the Handgrip Extensions (34) as shown and
insert it as far as possible into the post on the left Updght
(64). If necessary, tap the Handgdp Extension with a rub-
ber mallet to fully insert it. Attach the Handgdp Extension
with two Extension Screws (35), one towards the front of
the post, and the other towards the back.
Attach the other Handgrip Extension to the post on the
right Upright (not shown) in the same way.
5. See the inset drawing. Identify the Left Top Handgdp
(31); there are identifying marks inside the Handgdps. Set
the Left Top Handgdp on the left Handgrip Extension
(34). Insert two 112"Screws (33) into the two holes In
the Handgrip Extension indicated by the arrows.
Tighten the Screws into the Left Top Handgrlp.
Important: Do not insert the two 1/2" Screws (33) into
the wrong holes in the Handgrip Extension (34), or
tighten the Screws into the plastic bosses on the bot-
tom of the Left Top Handgrip (31).
6. Attach the matching Left Bottom Handgdp (104) with
three 112" Screws (33).
Attach the Right Top Handgrip and the Right Bottom
Handgdp (not shown) as described above.
3
35 32
4
34
35
6
7. Make sure that all parts are properly tightened before you use the treadmill. Keep the includedallen
wrench in a secure place; the allen wrench is used to adjust the walking belt (see page 24). To protect the
floor or carpet from damage, place a mat under the treadmill.
7
