14
13

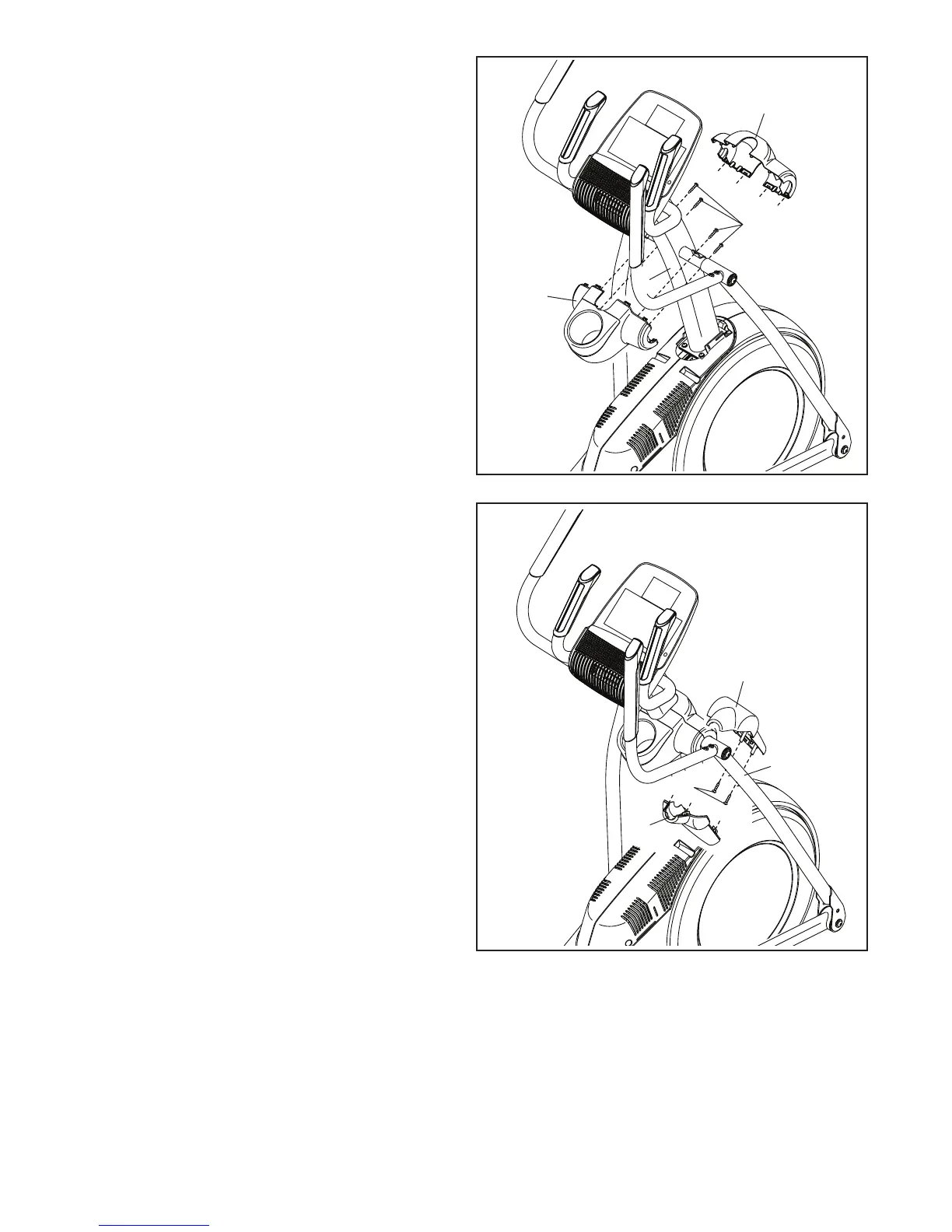

13. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
the Screws, and then tighten them.
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing the hooks on the Rear
Upright Cover (81) onto the tabs on the Front
Upright Cover.
101
81
117
4
14
14. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Identify the Right Upper Body Arm Rear Cover
(66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body Arm
Rear Cover onto the tabs on the Right Upper
Body Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66
