7
4.
Orient the Latch Housing (73) so the large hole is on the
indicated side. Attach the Latch Housing to the left
Upright (84) with two Latch Screws (50); start both
Latch Screws and then tighten them.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two col-
lars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.
Plug in the power cord as described on page 10. Turn on
the power as described on page 12. Note: The treadmill
may automatically rise to the maximum incline level and
then return to the minimum level.
50
Pin
Spring
Collar
Knob
73
4
3. Insert the Wire Harnesses (77, 78) down into the right
Upright (84).
Set the console assembly on the Uprights (84). Be care-
ful to avoid pinching the Wire Harnesses (77, 78).
Whilst a second person holds the console assembly, at-
tach it with four Console Bolts (64) and four Star Washers
(8) as shown; start all four Console Bolts and then
firmly tighten them.
Console
Assembly
64
77, 78
64
8
8
84
84
3
2

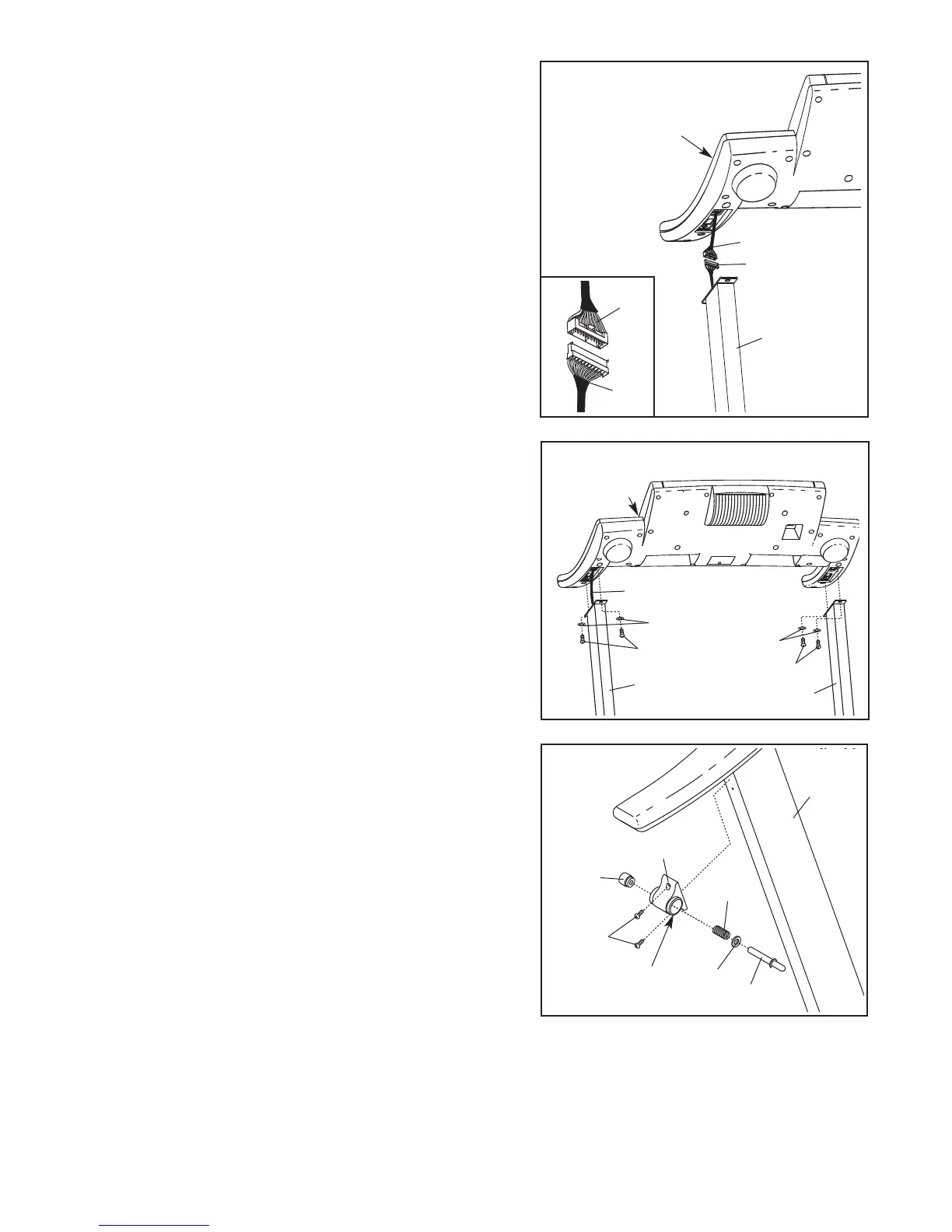

. With the help of a second person, carefully raise the
Uprights (84) to a vertical position.
Have the second person hold the console assembly near
the Uprights (84) as shown. Look under the console as-
sembly and locate the Console Wire Harness (78).
Cut the plastic ties securing the Upright Wire Harness
(77) to the right Upright (84). Next, connect the Upright
Wire Harness to the Console Wire Harness (78).
Make
sure to connect the connectors properly (see the
inset drawing). The connectors should slide together
easily and snap into place.
If the connectors do not
slide together easily and snap into place, turn one con-
nector and then try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS TURNED ON.
84
77
78
2
Console
Assembly
77
78
84
Large
Hole
