11

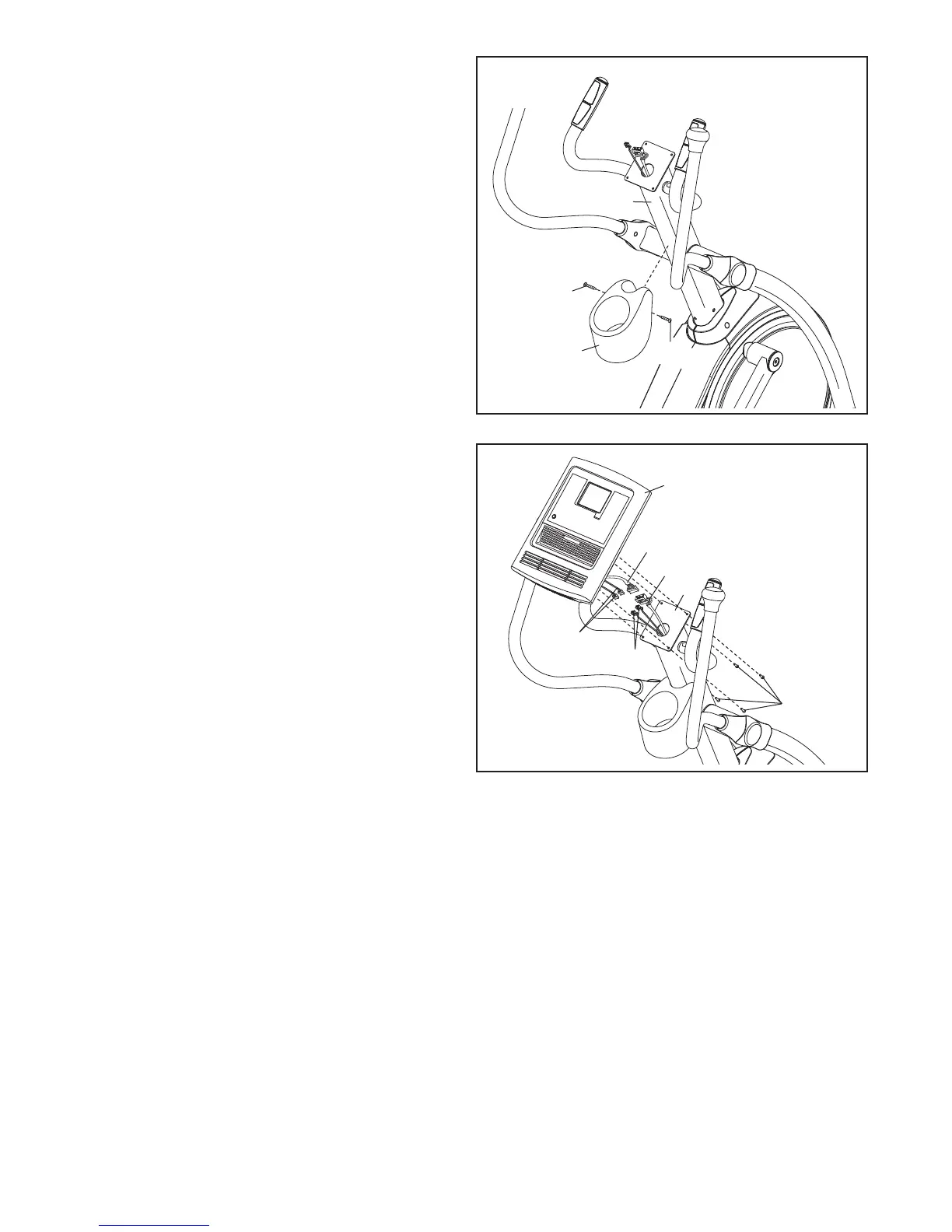

12. Attach the Water Bottle Holder (37) to the
Upright (4) with two M4 x 16mm Screws (104).
37
4
104
104
1
2
13
13. While a second person holds the Console (7)
near the Upright (4), connect the console wire
to the Upper Wire Harness (110). Then, connect
the console pulse wires to the Pulse Wires (63).
Insert the excess wire downward into the
Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (104).
See step 3. Tighten the M8 x 19mm Patch
Screws (82).
7
63
110
104
4
Console Wire
Pulse
Wires
Avoid pinching
the wires
14. Plug the power adapter into the jack on the back of the console (see HOW TO PLUG IN THE POWER
ADAPTER on page 12). IMPORTANT: If the elliptical exerciser has been exposed to cold temperatures,
allow it to warm to room temperature before plugging in the power adapter. If you do not do this, you
may damage the console displays or other electronic components.
Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After assem-
bly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to protect the
floor.
