5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
A
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

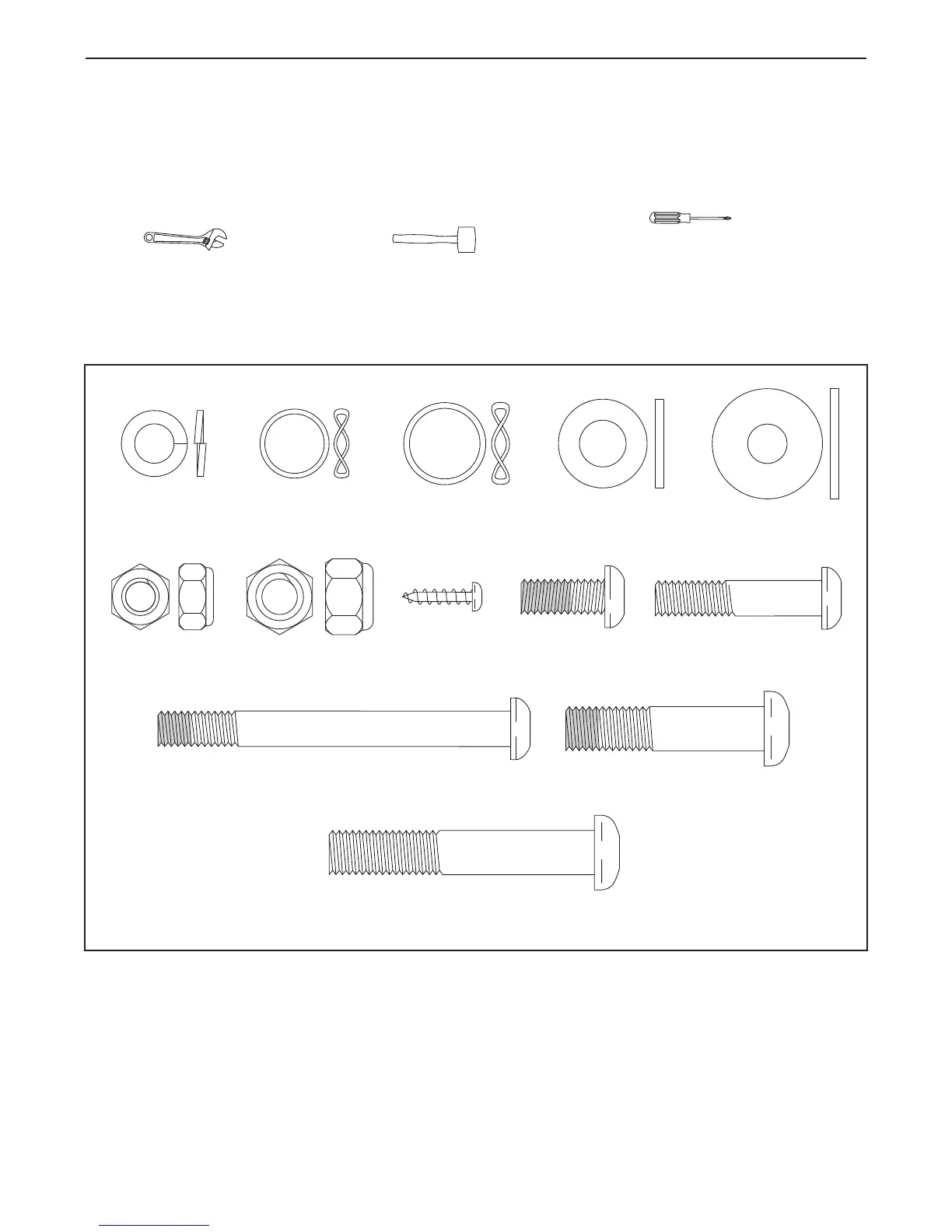

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 x 38mm
Bolt (96)–8
M8 Locknut
(102)–8
19mm Wave
Washer (66)–4
16mm Wave
Washer (54)–2
M8 x 25mm
Washer (98)–6
M4 x 16mm
Screw (104)–10
M8 x 19mm Patch
Screw (82)–15
M8 Split
Washer (83)–9
M10 Locknut
(92)–2
M10 Washer
(95)–2
M8 x 80mm Patch
Screw (84)–2
M10 x 60mm
Bolt (100)–2
M10 x 45mm Patch
Screw (99)–4
To Next Page
