5
ASSEMBLY
A
ssembly requires two persons.
P
lace all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
i
ncluded hex keys and your own phillips screwdriver , adjustable spanner ,
and rubber mallet .

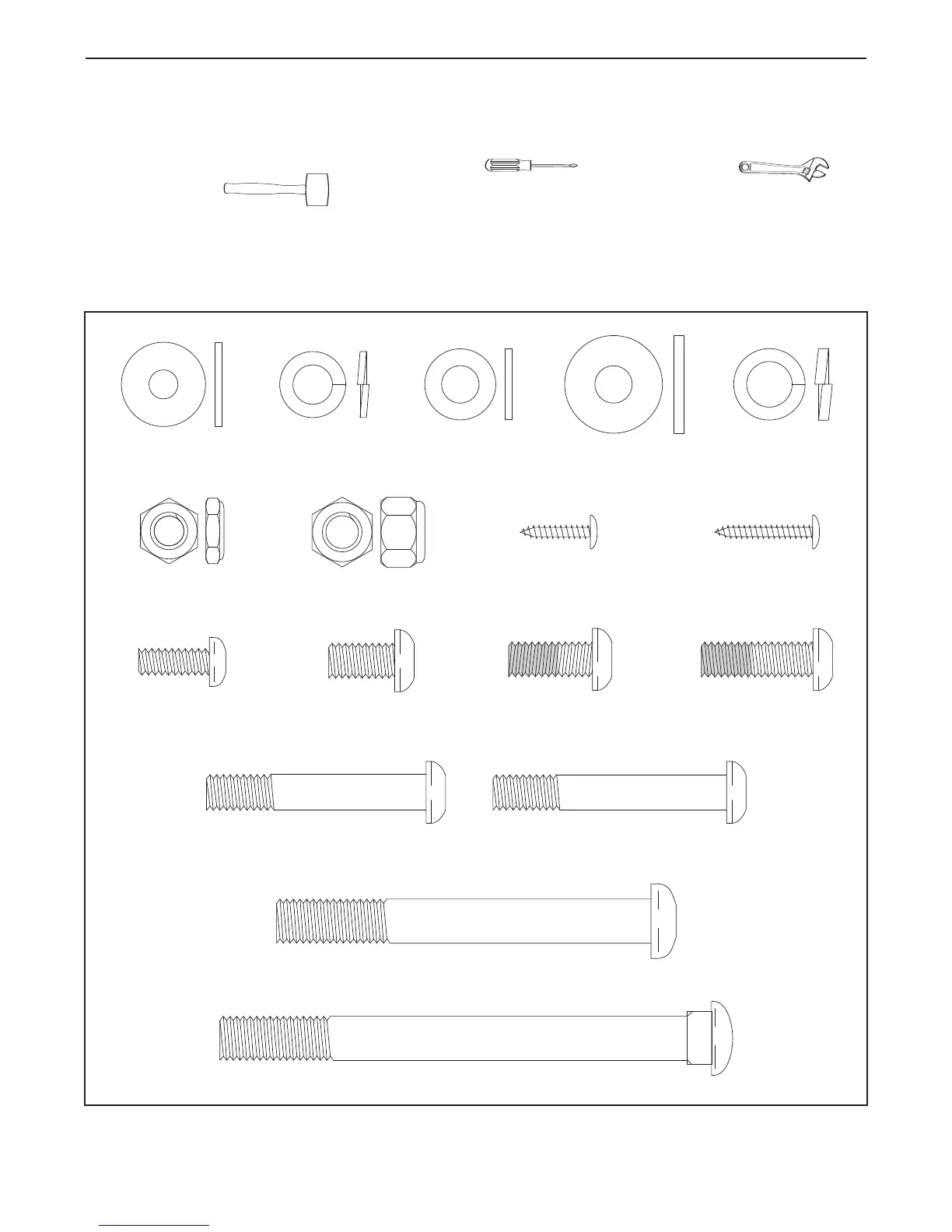

Refer to the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number following the
key number is the quantity needed for assembly.
Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
M10 x 112mm Carriage Bolt (34)–4
M10 Nylon Locknut
(106)–4
M6 Large Washer
(94)–2
M8 Washer
(45)–2
M10 Split Washer
(70)–1
M8 Large
Washer (53)–2
M4 x 16mm Screw
(66)–4
M4 x 22mm
Screw (93)–2
M8 Split Washer
(126)–4
M8 Jamnut (127)–4
M10 x 87mm Button
Screw (63)–1
M8 x 53mm Button
Screw (113)–4
M8 x 50mm Button
Screw (20)–2
M6 x 16mm Button
Screw (109)–2
M8 x 19mm Patch
Screw (108)–2
M8 x 25mm Patch
Screw (22)–6
M8 x 15mm Button
Screw (65)–2
