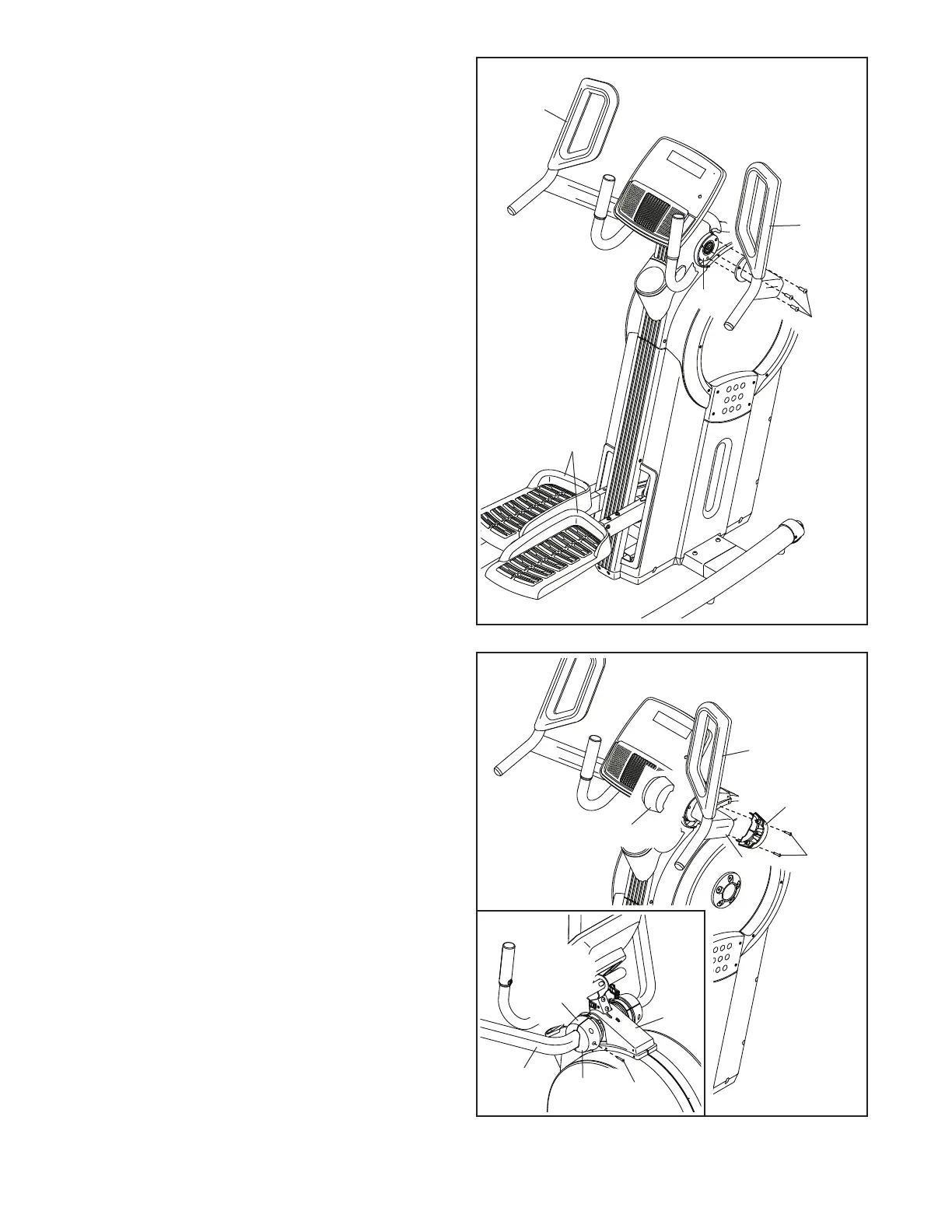

8. Identify the Right and Left Handlebars (10, 11).
Make sure that the Pedals (22, 23) are level.
Attach the Right Handlebar (10) to the Right
Handlebar Arm (15) with three M8 x 25mm
Screws (105); start all the Screws, and then
tighten them. Tip: It may be helpful to rotate
the Right Handlebar for better access to
tighten the Screws.
Attach the Left Handlebar (11) in the
same way.
10
105
11
15
22, 23
9
9. Identify the Rear and Front Pivot Covers
(65, 66).
Press a set of Rear and Front Pivot
Covers (65, 66) together around the Right
Handlebar (10) near the bend (B). Then,
attach them to each other with two M4 x 22mm
Screws (107).
See the inset drawing. Slide the Rear and
Front Pivot Covers (65, 66) toward the Shield
Cover (12). Attach the Front Pivot Cover to
the Right Handlebar (10) with an M4 x 22mm
Screw (107).
Repeat this step on the other side of the
trainer.
66
B
65
107
10
10
66
12
107
65
To Next Page
