14
15
61
68
29
29
95
Hexagonal
Holes

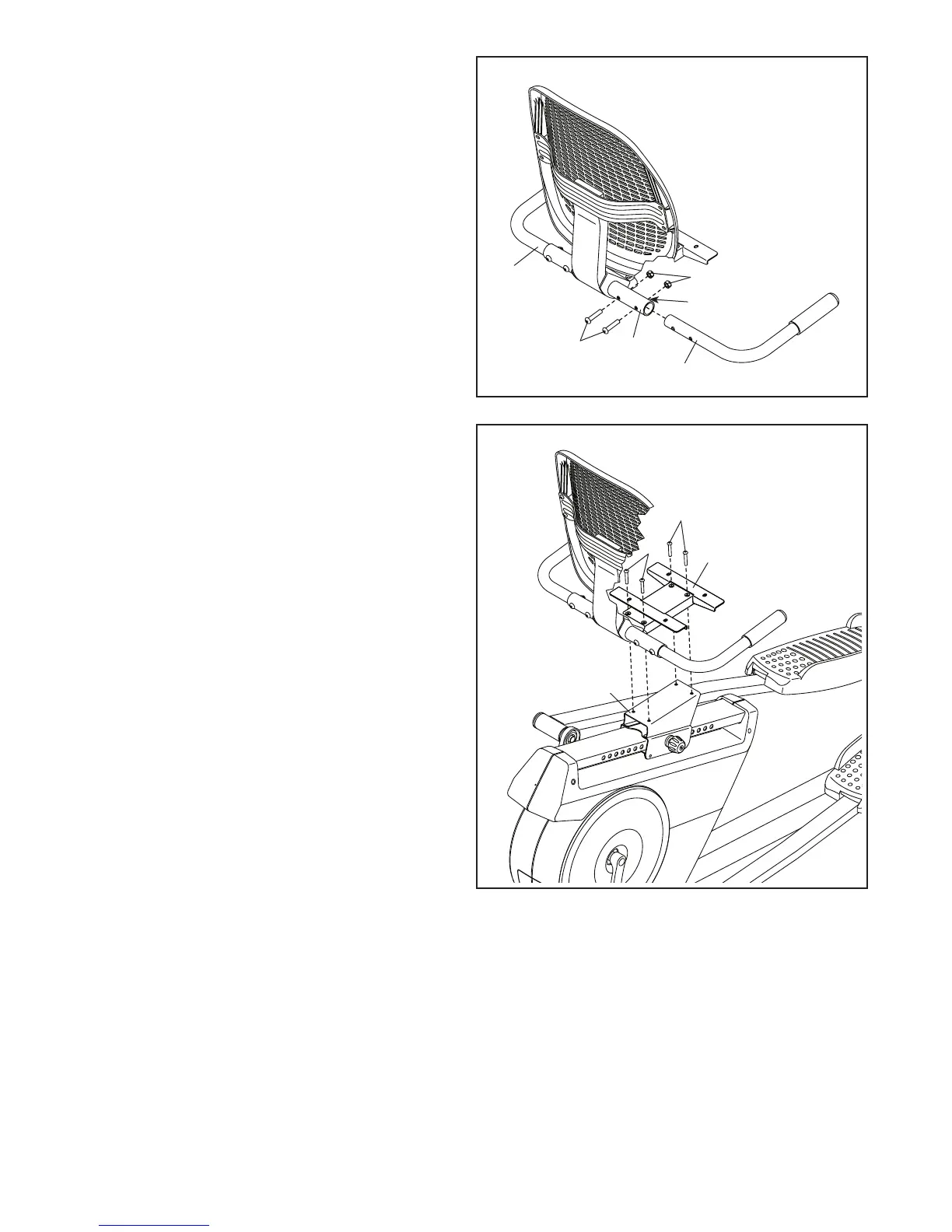

15. Orient the Seat Frame (61) as shown.
Insert a Seat Handlebar (29) into the Seat
Frame (61). Attach the Seat Handlebar with two
M8 x 38mm Bolts (95) and two M8 Locknuts
(68); make sure that the Locknuts are in the
hexagonal holes.
Repeat this step to attach the other Seat
Handlebar (29).
16
16. Attach the Seat Frame (61) to the Seat Carriage
(32) with four M6 x 35mm Screws (98); start all
the Screws, and then tighten them.
61
98
98
32
